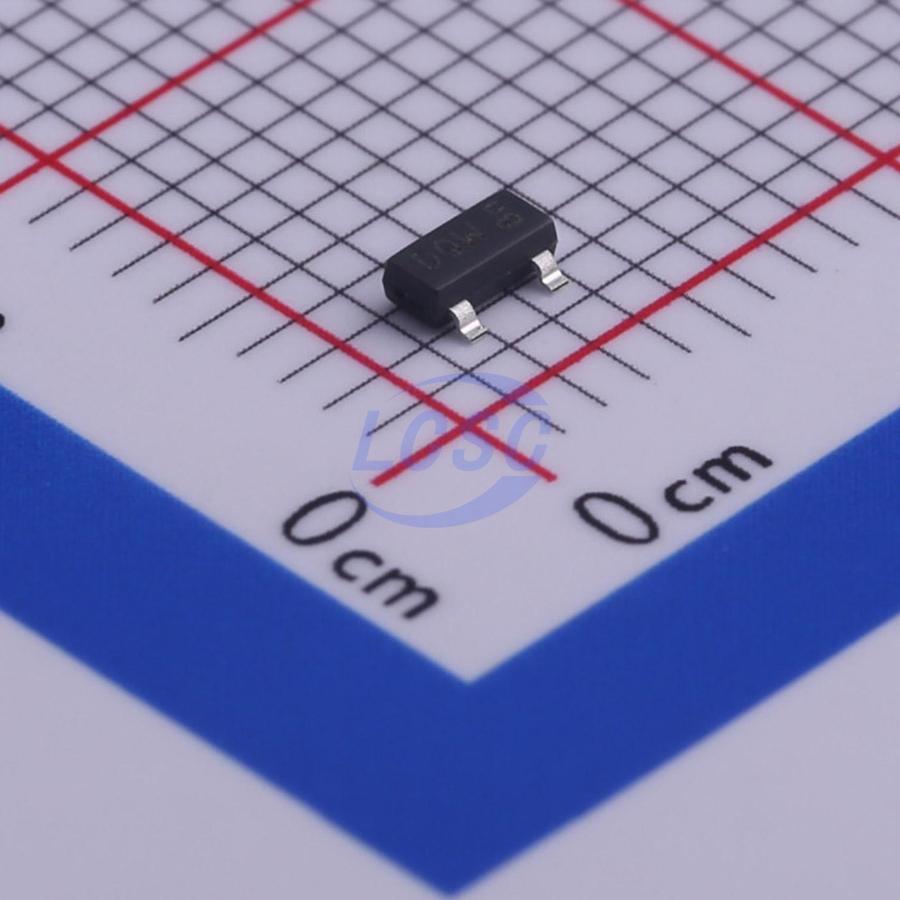

PMV50EPEAR
P-Channel 30V 4.2A Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
MOSFET P-CH 30V 4.2A SOT-23
- Manufacturer
- Nexperia
- Manufacturer part #
- PMV50EPEAR
- Store part #
- C478012
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
105 in stock
#C478012
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.23 | ₹166.15 |
| 50+ | ₹25.03 | ₹1,251.50 |
| 150+ | ₹21.51 | ₹3,226.50 |
| 500+ | ₹17.12 | ₹8,560.00 |
| 3,000+ | ₹15.16 | ₹45,480.00 |
| 6,000+ | ₹13.98 | ₹83,880.00 |
5 × ₹33.23
₹166.15
excl. GST
₹196.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMV50EPEAR
₹166.15 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 134pF
- Ciss-Input Capacitance
- 793pF
- Pd - Power Dissipation
- 1.2W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 4.2A
- Reverse Transfer Capacitance (Crss)
- 84pF
- RDS(on)
- 45mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 19.2nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.017 g
Overview
P-channel enhancement mode Field-Effect Transistor (FET) in a small SOT23 (TO-236AB) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
Applications
- Relay driver
- High-speed line driver
- High-side loadswitch
- Switching circuits
Key features
- Logic level compatible
- Very fast switching
- Trench MOSFET technology
- ElectroStatic Discharge (ESD) protection > 2 kV HBM
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SP30P45T2#C41354963Siliup · SOT-23 | Siliup | SOT-23 | 2,580 | ₹4.33 · 2,580 in stock | View | |
 | AO3407-L-TWGMC#C52117609TWGMC · SOT-23-3L | TWGMC | SOT-23-3L | 2,100 | ₹4.91 · 2,100 in stock | View |
 | CJ3407S3#C5310945TECH PUBLIC · SOT-23-3 | TECH PUBLIC | SOT-23-3 | 1,880 | ₹7.12 · 1,880 in stock | View |
 | CMN3J332M#C5444328Cmos · SOT-23-3L | Cmos | SOT-23-3L | 10 | ₹20.93 · 10 in stock | View |
 | AO3407A#C15155AOS · SOT-23 | AOS | SOT-23 | 1,14,360 | ₹12.89 · 1,14,360 in stock | View |
