VBsemi ElecDatasheet (PDF)

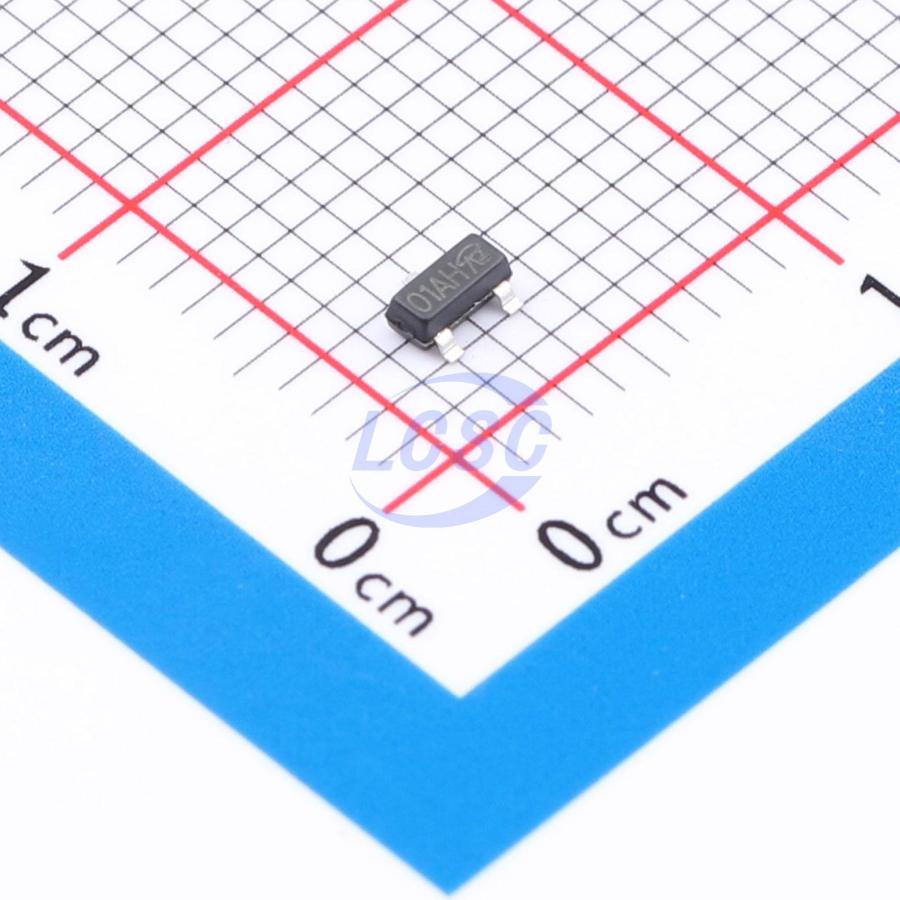

PMV65XP,215-VB
2.5W 20V 4A 60mΩ@10V 1 P-Channel P-Channel SOT-23 Single FETs, MOSFETs
SOT-23RoHSActive
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- PMV65XP,215-VB
- Store part #
- C52148565
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C52148565
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.57 | ₹62.85 |
| 50+ | ₹10.16 | ₹508.00 |
| 150+ | ₹8.97 | ₹1,345.50 |
| 500+ | ₹8.06 | ₹4,030.00 |
| 3,000+ | ₹6.63 | ₹19,890.00 |
| 6,000+ | ₹6.27 | ₹37,620.00 |
5 × ₹12.57
₹62.85
excl. GST
₹74.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PMV65XP,215-VB
₹62.85 for 5 + GST
Specifications
- Output Capacitance(Coss)
- 180pF
- Ciss-Input Capacitance
- 835pF
- Pd - Power Dissipation
- 2.5W
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 4A
- Reverse Transfer Capacitance (Crss)
- 155pF
- RDS(on)
- 60mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 10nC
- Vgs
- ±12V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.074 g
Overview
Applications
- Load switch
- Power amplifier (PA) switch
- DC/DC converter
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% gate resistance (Rg) tested
- Compliant with RoHS Directive 2002/95/EC
