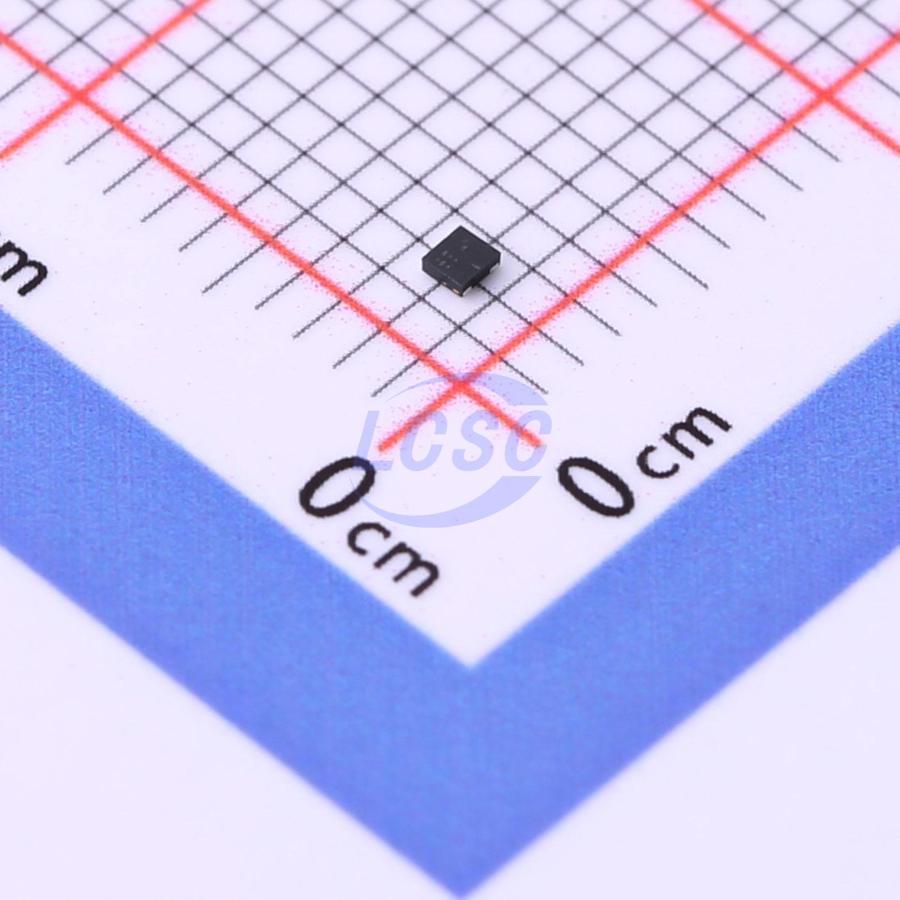

Nexperia

PMXB65UPEZ

P-Channel 12V 3.2A 317mW Surface Mount DFN1010D-3

DFN1010D-3ROHS3 CompliantActive

MOSFET P-CH 12V 3.2A DFN1010D-3

Manufacturer: Nexperia
Manufacturer part #: PMXB65UPEZ
Store part #: C547276
Package / case: DFN1010D-3
Category: Single FETs, MOSFETs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

390 in stock

#C547276

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
5+	₹21.18	₹105.90
50+	₹16.60	₹830.00
150+	₹14.65	₹2,197.50
500+	₹12.20	₹6,100.00
2,500+	₹11.10	₹27,750.00
5,000+	₹10.45	₹52,250.00

Quantity (min 5, multiples of 5)

5 × ₹21.18

₹105.90

excl. GST

₹124.96 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 5,000 per reel

PMXB65UPEZ

₹105.90 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Capacitance(Coss): 167pF
Ciss-Input Capacitance: 634pF
Pd - Power Dissipation: 317mW
Operating Temperature: -55℃~+150℃
Drain to Source Voltage: 12V
Current - Continuous Drain(Id): 3.2A
Reverse Transfer Capacitance (Crss): 146pF
RDS(on): 59mΩ@4.5V
Number: 1 P-Channel
Gate Charge(Qg): 12nC@4.5V
Vgs: ±8V
Gate Threshold Voltage (Vgs(th)): 680mV
Type: P-Channel

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.015 g

Overview

P-channel enhancement mode Field-Effect Transistor (FET) in a leadless ultra small DFN1010D-3 (SOT1215) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.

Applications

High-side load switch and charging switch for portable devices
Power management in battery driven portables
LED driver
DC-to-DC converter

Key features

Trench MOSFET technology
Leadless ultra small and ultra thin SMD plastic package: 1.1 × 1.0 × 0.37 mm
Exposed drain pad for excellent thermal conduction
ElectroStatic Discharge (ESD) protection 1.5 kV HBM
Drain-source on-state resistance RDSon = 59 mΩ
Very low gate-source threshold voltage for portable applications VGS(th) = -0.68 V
