NexperiaDatasheet (PDF)

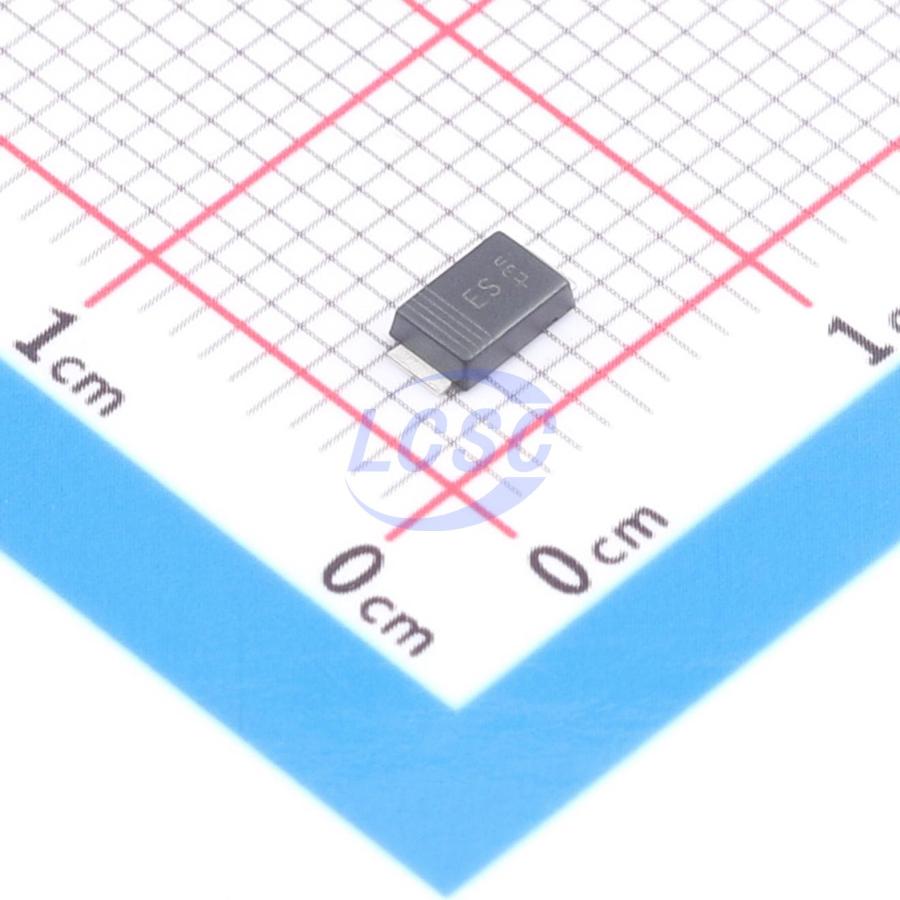

PNU65010EPX
35ns 1 Independent 650V 1V@1A 1A SOD-128 Single Diodes RoHS
SOD-128ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PNU65010EPX
- Store part #
- C20235868
- Package / case
- SOD-128
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
110 in stock
#C20235868
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹54.98 | ₹54.98 |
| 10+ | ₹53.90 | ₹539.00 |
| 30+ | ₹53.03 | ₹1,590.90 |
| 100+ | ₹52.15 | ₹5,215.00 |
1 × ₹54.98
₹54.98
excl. GST
₹64.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PNU65010EPX
₹54.98 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 35ns
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 650V
- Voltage - Forward(Vf@If)
- 1V@1A
- Reverse Leakage Current (Ir)
- 500nA
- Non-Repetitive Peak Forward Surge Current
- 33A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.115 g
Overview
High power density, ultra-fast switching recovery rectifier using high-efficiency planar technology, housed in a compact flat-lead CFP5 (SOD128) SMD plastic package.
Applications
- AC/DC Converters
- SMPS/UPS
- Battery Chargers
- Inverters
- Freewheeling Applications
Key features
- Reverse voltage V<sub>R</sub> ≤ 650V
- Forward current I<sub>F</sub> ≤ 1A
- Typical switching time t<sub>F</sub> = 35ns
- Platinum-doped lifetime control
- Low inductance
- Power and flat lead SMD plastic package
- High power capability due to clip bonding technology
- Planar die design
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PNU65020EPX#C20235871Nexperia · SOD-128 | Nexperia | SOD-128 | 100 | ₹61.73 · 100 in stock | View |
 | STTH1R06AF#C17290793ST · SOD-128 | ST | SOD-128 | 210 | ₹43.79 · 210 in stock | View |
 | PNU65030EP-QX#C20235872Nexperia · SOD-128 | Nexperia | SOD-128 | On request | ₹100.38 · 0 in stock | View |
| RS2KFSH#C19854065Taiwan Semiconductor · SOD-128 | Taiwan Semiconductor | SOD-128 | On request | ₹9.67 · 0 in stock | View | |
| RS1KFS#C17222124Taiwan Semiconductor · SOD-128 | Taiwan Semiconductor | SOD-128 | On request | ₹8.03 · 0 in stock | View | |
