TECH PUBLICDatasheet (PDF)

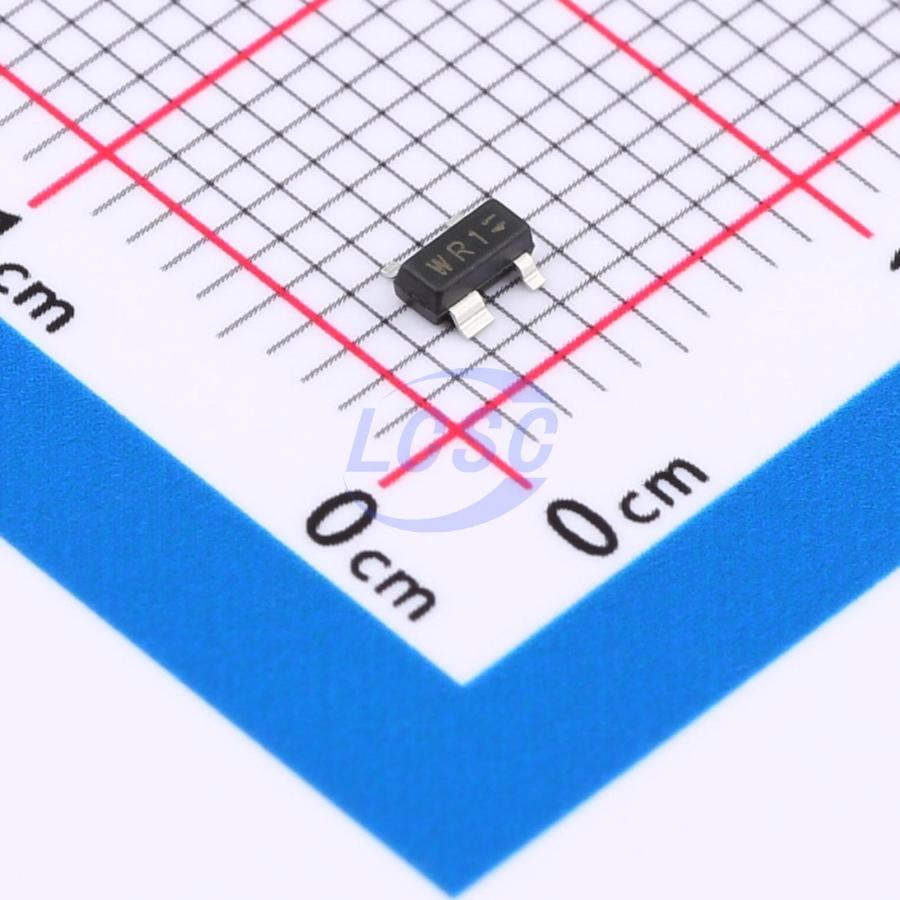

PRTR5V0U2AX
15VC Clamp 6A@8/20us Ipp TVS DIODE SOT-143
SOT-143RoHSActive
TVS DIODE 5VWM 15VC SOT-143
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PRTR5V0U2AX
- Store part #
- C41431806
- Package / case
- SOT-143
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,400 in stock
#C41431806
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹10.66 | ₹106.60 |
| 100+ | ₹8.59 | ₹859.00 |
| 300+ | ₹7.55 | ₹2,265.00 |
| 3,000+ | ₹6.28 | ₹18,840.00 |
| 6,000+ | ₹5.66 | ₹33,960.00 |
| 9,000+ | ₹5.36 | ₹48,240.00 |
10 × ₹10.66
₹106.60
excl. GST
₹125.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PRTR5V0U2AX
₹106.60 for 10 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 6A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 100W@8/20us
- Voltage - Breakdown
- 6.5V
- type
- TVS
- Reverse Leakage Current (Ir)
- 80nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
Applications
- USB 2.0 power and data line
- Set-top box and digital TV
- Digital video interface (DVI)
- Notebook Computers
- SIM Ports
- 10/100 Ethernet
Key features
- Ultra low leakage: nA level
- Operating voltage: 5V
- Low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30 kV Contact discharge: ±30 kV
- IEC61000-4-5 (Lightning) 6A (8/20μs)
- IEC61000-4-4 (EFT) 40A (5/50ns)
- RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PRTR5V0U2X#C2827688TECH PUBLIC · SOT-143 | TECH PUBLIC | SOT-143 | 82,950 | ₹8.32 · 82,950 in stock | View |
