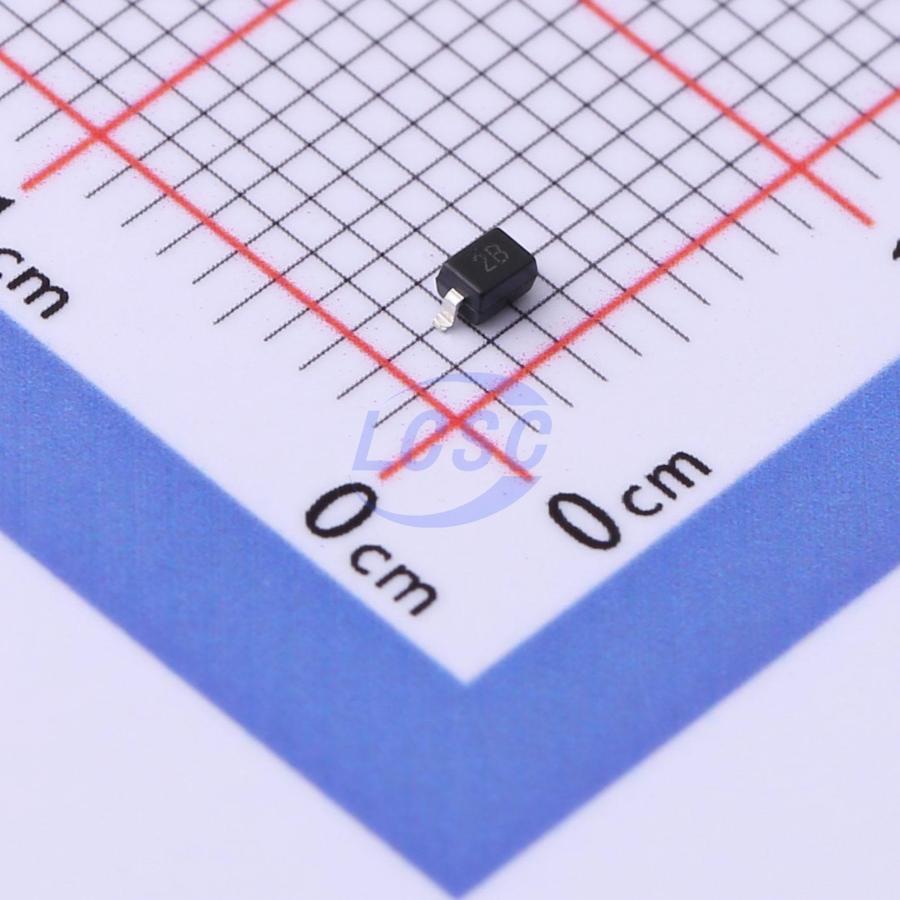

PSD05C-LF-T7 TECH PUBLIC

PSD05C-LF-T7

9VC Clamp 22A@8/20us Ipp ESD DIODE SOD-323

SOD-323RoHSActive

ESD DIODE 5VWM 9VC SOD-323

Manufacturer: TECH PUBLIC
Manufacturer part #: PSD05C-LF-T7
Store part #: C3011179
Package / case: SOD-323
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,600 in stock

#C3011179

Stock & price checked 12 days ago

Quantity	Unit price	Pack price
20+	₹4.59	₹91.80
200+	₹3.56	₹712.00
600+	₹2.98	₹1,788.00
3,000+	₹2.57	₹7,710.00
9,000+	₹2.28	₹20,520.00
21,000+	₹2.10	₹44,100.00

Quantity (min 20, multiples of 20)

20 × ₹4.59

₹91.80

excl. GST

₹108.32 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

PSD05C-LF-T7

₹91.80 for 20 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 9V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 22A@8/20us
Peak Pulse Power Dissipation (Ppp): 300W@8/20us
Number of Channels: 1
Voltage - Breakdown: 7V
type: ESD
Reverse Leakage Current (Ir): 500nA
Reverse Stand-Off Voltage (Vrwm): 5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.03 g

Overview

Applications

Cellular Handsets and Accessories
Personal Digital Assistants
Notebooks and Handhelds
Portable Instrumentation
Peripherals
Pagers Peripherals

Key features

300W peak pulse power (8/20μs)
Protects one data or power line
Ultra low leakage: nA level
Operating voltage: 5V
Ultra low clamping voltage
Complies with following standards:
IEC61000 - 4 - 2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
IEC61000 - 4 - 4 (Lightning) 22A (8/20ns)

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	PSD05C#C2827698TECH PUBLIC · SOD-323	TECH PUBLIC	SOD-323	16,500	₹5.45 · 16,500 in stock	View
	SD05C#C907858TECH PUBLIC · SOD-323	TECH PUBLIC	SOD-323	2,870	₹5.93 · 2,870 in stock	View
