TECH PUBLIC

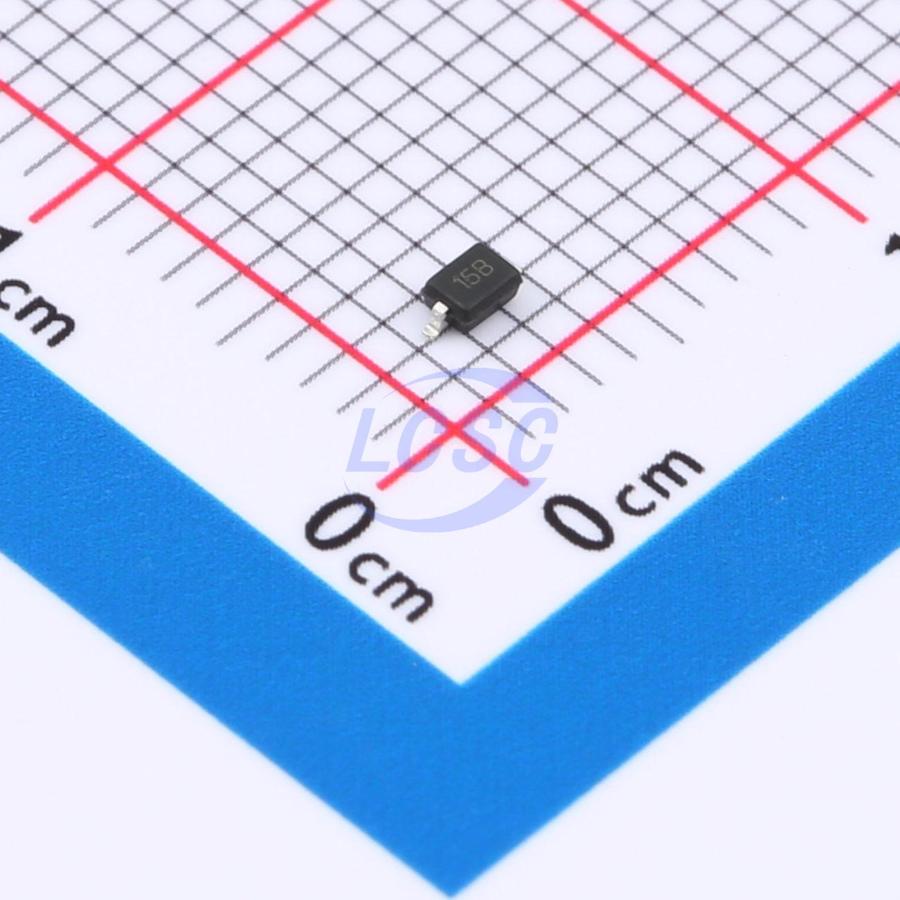

PSD15C-LF-T7

30VC Clamp 12A@8/20us Ipp SOD-323

SOD-323RoHSActive

15VWM 30VC SOD-323

Manufacturer: TECH PUBLIC
Manufacturer part #: PSD15C-LF-T7
Store part #: C28646382
Package / case: SOD-323
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,720 in stock

#C28646382

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
20+	₹5.57	₹111.40
200+	₹4.42	₹884.00
600+	₹3.77	₹2,262.00
3,000+	₹3.39	₹10,170.00
9,000+	₹3.04	₹27,360.00
21,000+	₹2.87	₹60,270.00

Quantity (min 20, multiples of 20)

20 × ₹5.57

₹111.40

excl. GST

₹131.45 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

PSD15C-LF-T7

₹111.40 for 20 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 30V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 12A@8/20us
Peak Pulse Power Dissipation (Ppp): 350W@8/20us
Number of Channels: 1
Voltage - Breakdown: 20V
Reverse Leakage Current (Ir): 500nA
Reverse Stand-Off Voltage (Vrwm): 15V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.026 g

Overview

Applications

Cellular Handsets and Accessories
Personal Digital Assistants
Notebooks and Handhelds
Portable Instrumentation
Peripherals
Pagers Peripherals
Desktop and Servers

Key features

350W peak pulse power (8/20μs)
Protects one data or power line
Ultra low leakage: nA level
Operating voltage: 15V
Ultra low clamping voltage
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
IEC61000-4-5 (Lightning) 12A (8/20μs)
IEC61000-4-4 (EFT) 40A (5/50ns)
RoHS Compliant

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	SD15C#C2875152TECH PUBLIC · SOD-323	TECH PUBLIC	SOD-323	7,100	₹5.38 · 7,100 in stock	View
	PSD15C#C5246398TECH PUBLIC · SOD-323	TECH PUBLIC	SOD-323	2,315	₹10.66 · 2,315 in stock	View
