TECH PUBLICDatasheet (PDF)

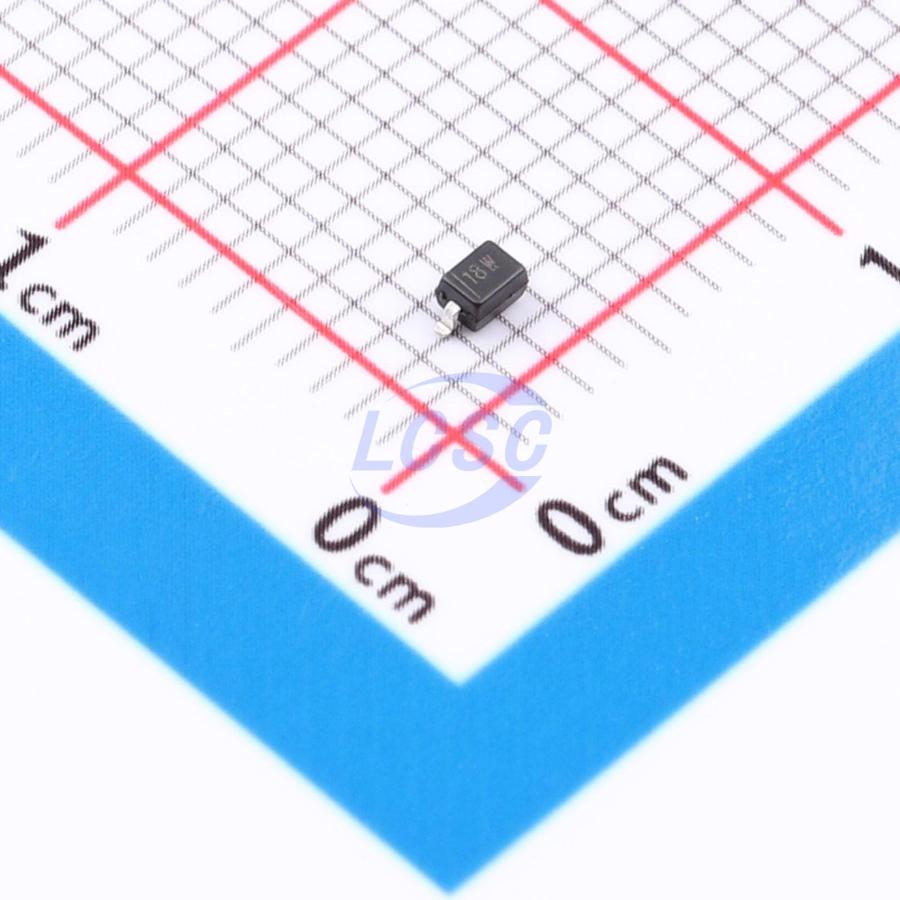

PSD18(TP)
35V 6A@8/20us 220W@8/20us 20V Unidirectional 18V SOD-323 TVS Diodes
SOD-323RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PSD18(TP)
- Store part #
- C53477718
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C53477718
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.99 | ₹99.80 |
| 200+ | ₹3.96 | ₹792.00 |
| 600+ | ₹3.37 | ₹2,022.00 |
| 3,000+ | ₹2.84 | ₹8,520.00 |
| 9,000+ | ₹2.54 | ₹22,860.00 |
| 21,000+ | ₹2.38 | ₹49,980.00 |
20 × ₹4.99
₹99.80
excl. GST
₹117.76 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PSD18(TP)
₹99.80 for 20 + GST
Specifications
- Clamping Voltage
- 35V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 6A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 220W@8/20us
- Voltage - Breakdown
- 20V
- Number of Channels
- 1
- type
- ESD
- Reverse Leakage Current (Ir)
- 100nA
- Polarity
- Unidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 18V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.028 g
Overview
Applications
- Mobile phones & accessories
- Personal digital assistants
- Laptops & handheld devices
- Portable instruments
- Peripherals
Key features
- Low operating voltage: 18V
- Ultra-low capacitance: 40pF
- Ultra-low leakage: nanoampere level
- Low clamping voltage
- IEC 61000-4-2 (ESD) immunity test: Air discharge: ±30kV; Contact discharge: ±30kV
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- 2-pin leadless package
- Lead-free devices
- Response time typically < 1 ns
