TECH PUBLICDatasheet (PDF)

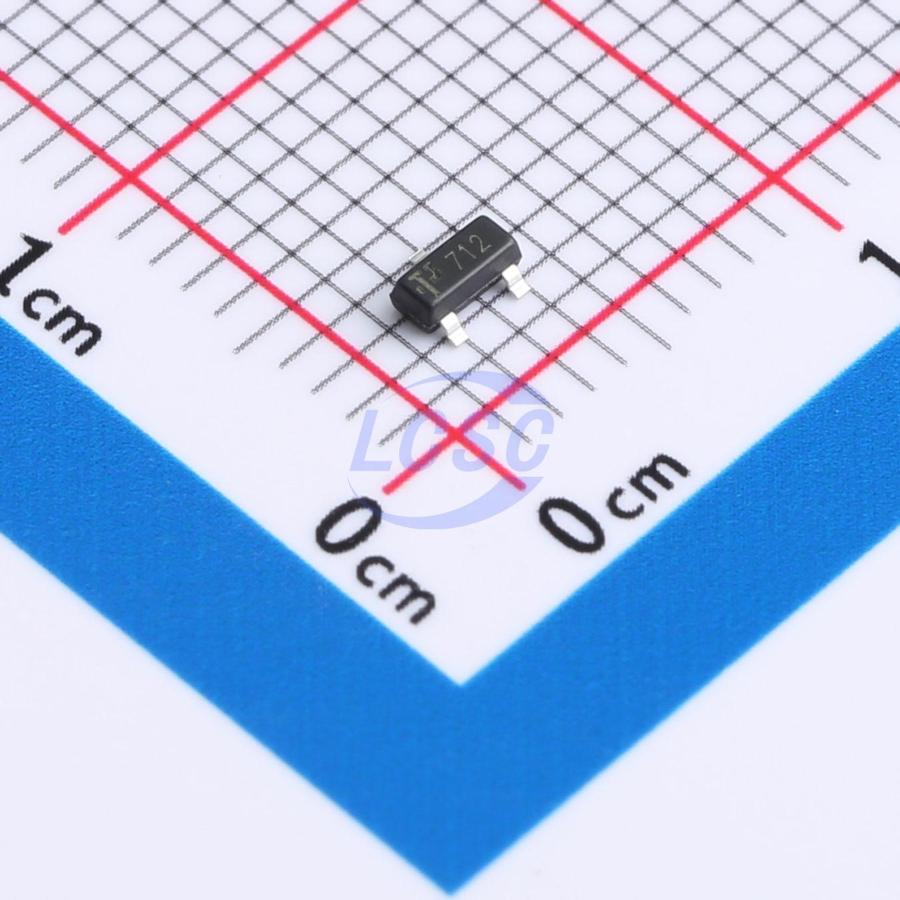

PSM712-LF-T7-L
20VC 26VC Clamp 8A@8/20us Ipp TVS DIODE SOT-23
SOT-23RoHSActive
TVS DIODE 7VWM 12VWM 20VC 26VC SOT-23
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PSM712-LF-T7-L
- Store part #
- C20617288
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,970 in stock
#C20617288
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.38 | ₹63.80 |
| 100+ | ₹5.12 | ₹512.00 |
| 300+ | ₹4.50 | ₹1,350.00 |
| 3,000+ | ₹3.81 | ₹11,430.00 |
| 6,000+ | ₹3.44 | ₹20,640.00 |
| 9,000+ | ₹3.24 | ₹29,160.00 |
10 × ₹6.38
₹63.80
excl. GST
₹75.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PSM712-LF-T7-L
₹63.80 for 10 + GST
Specifications
- Clamping Voltage
- 26V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 8A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 200W@8/20us
- Voltage - Breakdown
- 7.5V;13.3V
- type
- TVS
- Reverse Leakage Current (Ir)
- 100nA;1uA
- Reverse Stand-Off Voltage (Vrwm)
- 7V;12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
Applications
- Wireless System
- Networks
- Portable Instrumentation
- RS485 Ports
Key features
- 200W peak pulse power (8/20μs)
- Ultra low leakage: nA level
- Operating voltage: 7V or 12V
- Low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- IEC61000-4-5 (Lightning) 8A (8/20μs)
