TECH PUBLIC

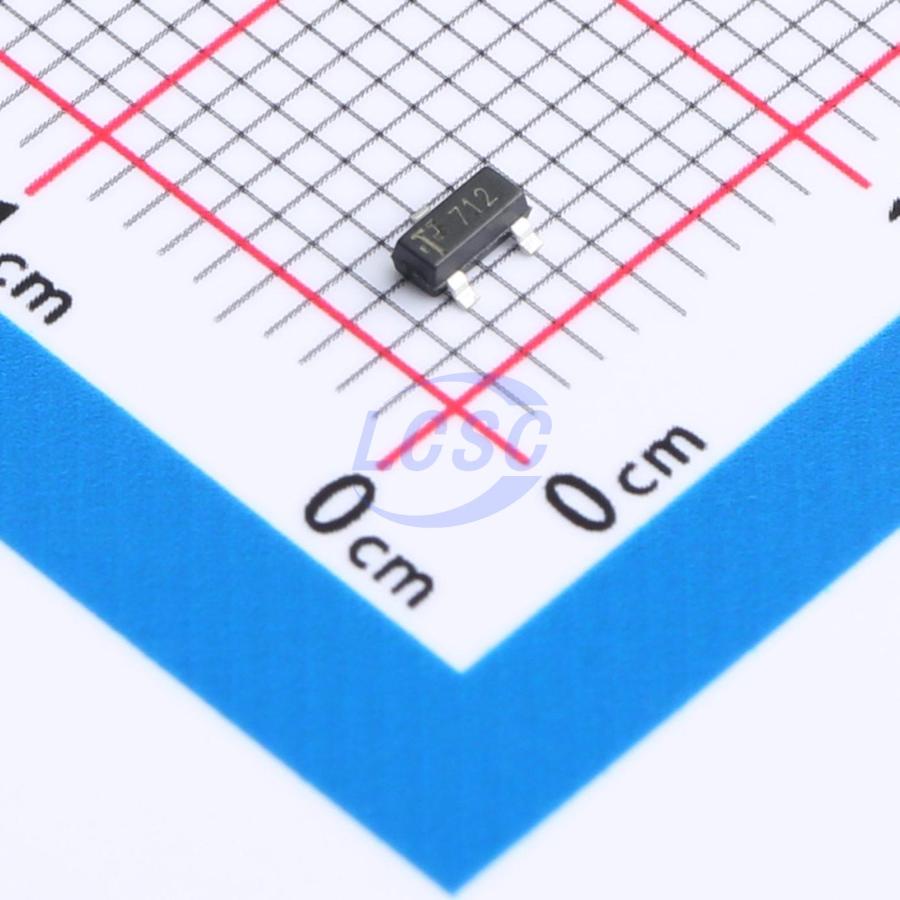

PSM712L

26VC Clamp 8A@8/20us Ipp TVS DIODE SOT-23

SOT-23RoHSActive

TVS DIODE 12VWM 26VC SOT-23

Manufacturer: TECH PUBLIC
Manufacturer part #: PSM712L
Store part #: C19268135
Package / case: SOT-23
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,280 in stock

#C19268135

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
20+	₹4.79	₹95.80
200+	₹3.73	₹746.00
600+	₹3.15	₹1,890.00
3,000+	₹2.79	₹8,370.00
9,000+	₹2.49	₹22,410.00
21,000+	₹2.32	₹48,720.00

Quantity (min 20, multiples of 20)

20 × ₹4.79

₹95.80

excl. GST

₹113.04 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

PSM712L

₹95.80 for 20 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 26V;20V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 8A@8/20us
Peak Pulse Power Dissipation (Ppp): 200W@8/20us
Number of Channels: 2
Voltage - Breakdown: 13.3V;7.5V
type: TVS
Polarity: Bidirectional
Reverse Leakage Current (Ir): 100nA;1uA
Reverse Stand-Off Voltage (Vrwm): 12V;7V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.03 g

Overview

Applications

Wireless System
Networks
Portable Instrumentation
RS485 Ports

Key features

200W peak pulse power (8/20us)
Ultra low leakage: nA level
Operating voltage: 7V or 12V
Low clamping voltage
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
IEC61000-4-4 (EFT) 40A (5/50ns)
IEC61000-4-5 (Lightning) 8A (8/20μs)
RoHS Comnliant

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	SM712-02HTGL#C19268134TECH PUBLIC · SOT-23	TECH PUBLIC	SOT-23	2,640	₹5.78 · 2,640 in stock	View
	SM712-TP#C53100550TECH PUBLIC · SOT-23	TECH PUBLIC	SOT-23	670	₹8.55 · 670 in stock	View
