Nexperia

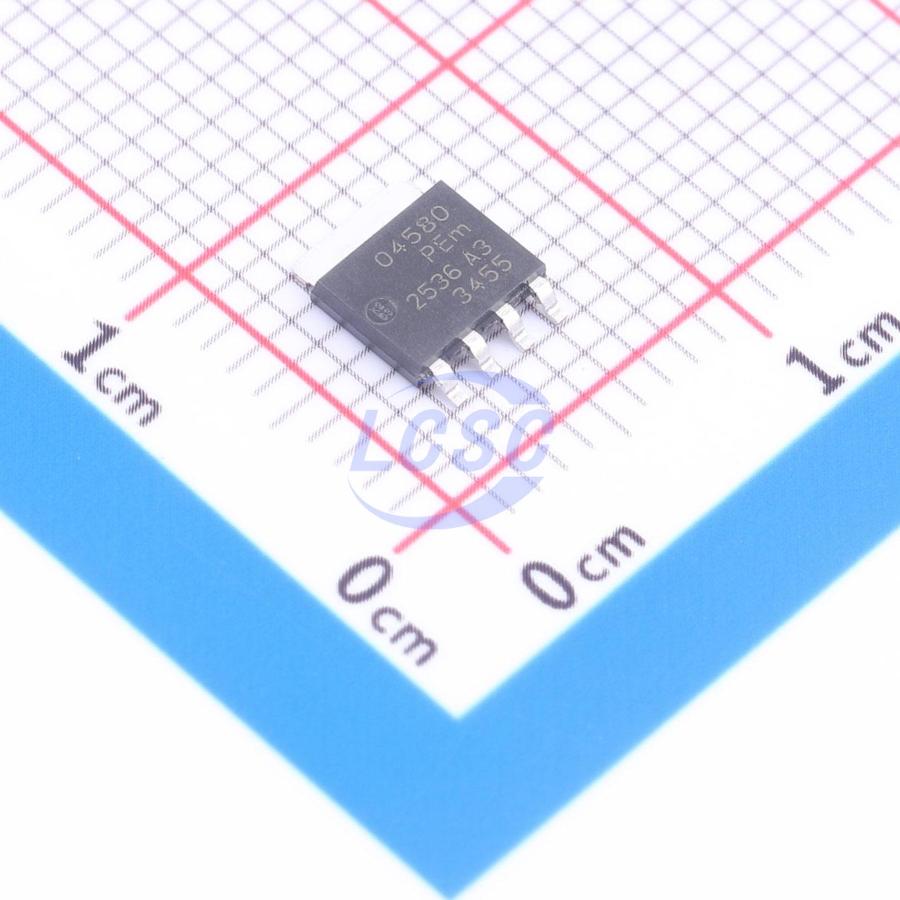

PSMN045-80YS,115

56W 80V 24A 45mΩ@10V 1 N-channel N-Channel SOT-669 Single FETs, MOSFETs RoHS

SOT-669ROHS3 CompliantActive

Manufacturer: Nexperia
Manufacturer part #: PSMN045-80YS,115
Store part #: C179449
Package / case: SOT-669
Category: Single FETs, MOSFETs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

49 in stock

#C179449

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹102.96	₹102.96
10+	₹100.35	₹1,003.50
30+	₹98.62	₹2,958.60
100+	₹97.09	₹9,709.00

Quantity (min 1)

1 × ₹102.96

₹102.96

excl. GST

₹121.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,500 per reel

PSMN045-80YS,115

₹102.96 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Capacitance(Coss): 79pF
Ciss-Input Capacitance: 675pF
Pd - Power Dissipation: 56W
Operating Temperature: -55℃~+175℃
Drain to Source Voltage: 80V
Current - Continuous Drain(Id): 24A
Reverse Transfer Capacitance (Crss): 48pF
RDS(on): 45mΩ@10V
Number: 1 N-channel
Gate Charge(Qg): 12.5nC@10V
Vgs: ±20V
Gate Threshold Voltage (Vgs(th)): 4V
Type: N-Channel

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.163 g

Overview

Standard-level N-channel MOSFET in LFPAK package, operating temperature up to 175°C. Designed and qualified for a wide range of industrial, communications, and consumer equipment.

Applications

DC-DC converter
Li-ion battery protection
Load switch
Motor control
Server power supply

Key features

Advanced TrenchMOS technology for low on-resistance (RDSon) and low gate charge
Improved switching power converter efficiency
Enhanced mechanical and thermal performance
LFPAK package delivering maximum power density in Power SO8 footprint

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
BUK7Y41-80EX#C549923Nexperia · SOT-669	Nexperia	SOT-669	42	₹109.33 · 42 in stock	View
BUK7Y53-100B,115#C549926Nexperia · SOT-669	Nexperia	SOT-669	99	₹134.01 · 99 in stock	View
BUK7Y25-80EX#C549919Nexperia · SOT-669	Nexperia	SOT-669	89	₹194.69 · 89 in stock	View
PSMN028-100YS,115#C553205Nexperia · SOT-669	Nexperia	SOT-669	27	₹119.32 · 27 in stock	View
BUK7Y22-100EX#C549917Nexperia · SOT-669	Nexperia	SOT-669	10	₹103.00 · 10 in stock	View
