NexperiaDatasheet (PDF)

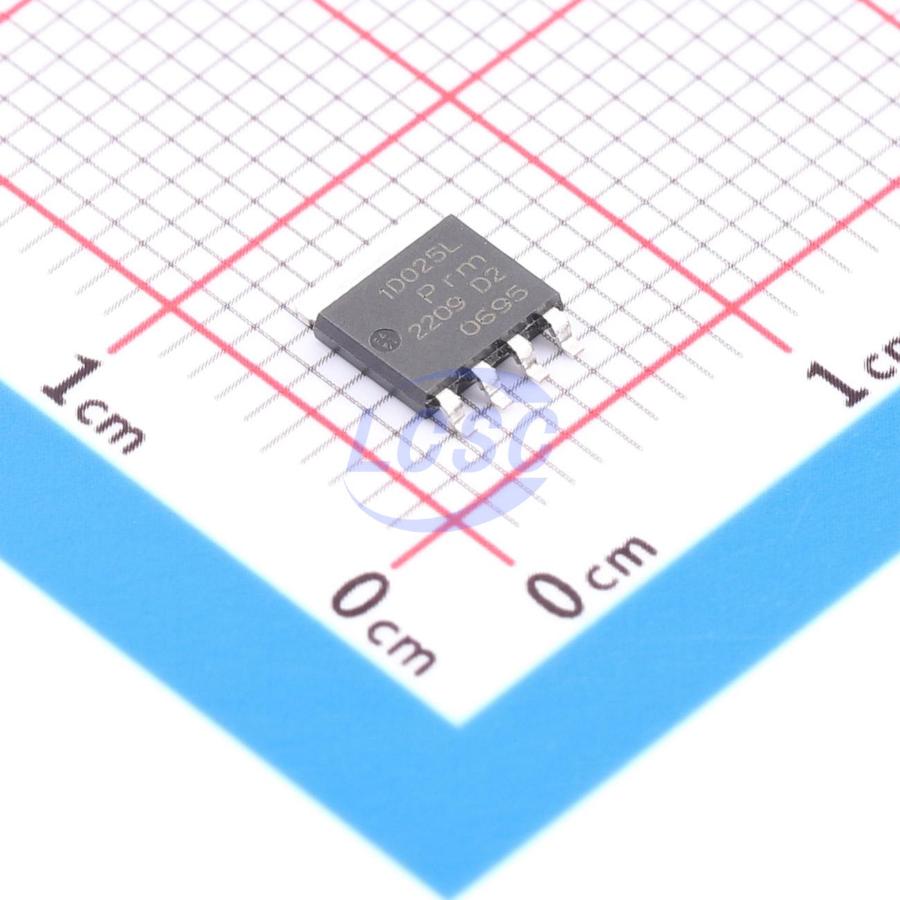

PSMN1R0-25YLDX
25V 240A 160W 0.89mΩ@10V 1 N-channel SOT-669 Single FETs, MOSFETs RoHS
SOT-669ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PSMN1R0-25YLDX
- Store part #
- C553216
- Package / case
- SOT-669
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
99 in stock
#C553216
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹259.77 | ₹259.77 |
| 10+ | ₹253.46 | ₹2,534.60 |
| 30+ | ₹249.35 | ₹7,480.50 |
| 100+ | ₹244.99 | ₹24,499.00 |
1 × ₹259.77
₹259.77
excl. GST
₹306.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
PSMN1R0-25YLDX
₹259.77 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 25V
- Current - Continuous Drain(Id)
- 240A
- Ciss-Input Capacitance
- 5.308nF
- Pd - Power Dissipation
- 160W
- Reverse Transfer Capacitance (Crss)
- 342pF
- RDS(on)
- 0.89mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 71.8nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.171 g
Overview
Logic-level gate drive N-channel enhancement-mode MOSFET in LFPAK56 package. Nexperia's NextPowerS3 portfolio, utilizing proprietary "SchottkyPlus" technology, delivers high efficiency and low-spike performance typically associated with MOSFETs integrating Schottky or Schottky-like diodes, without the issue of high leakage current. NextPowerS3 is particularly suited for high-efficiency applications at high switching frequencies.
Applications
- On-board DC:DC solutions for servers and telecom equipment
- Secondary-side synchronous rectification in telecom applications
- Voltage Regulator Modules (VRM)
- Point-of-Load (POL) modules
- Power supply for V-core, ASIC, DDR, GPU, VGA, and system components
- Brushed and brushless motor control
- Power OR-ing
Key features
- Avalanche rated, 100% tested at IAS = 190 A
- Ultra-low QG, QGD, and QOSS for high system efficiency, especially at higher switching frequencies
- Ultra-fast switching with soft recovery
- Low spikes and ringing for low EMI design
- Unique "SchottkyPlus" technology; leakage current < 1 μA at 25°C with Schottky-like performance
- Optimized for 4.5 V gate drive
- Low parasitic inductance and resistance
- Power SO8 package with high-reliability clip bonding and solder die attach; no glue, no wire bonding, operable at 175°C
- Wave solderable; exposed leads for optimal visual solder inspection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PSMN1R5-40YSDX#C553230Nexperia · SOT-669 | Nexperia | SOT-669 | 8 | ₹170.40 · 8 in stock | View |
 | PSMNR60-25YLHX#C553351Nexperia · SOT-669 | Nexperia | SOT-669 | 9 | ₹604.88 · 9 in stock | View |
 | PSMN1R2-25YLDX#C553223Nexperia · SOT-669 | Nexperia | SOT-669 | On request | ₹1,045.04 · 0 in stock | View |
| PSMNR70-30YLHX#C553352Nexperia · SOT-669 | Nexperia | SOT-669 | On request | ₹302.09 · 0 in stock | View | |
