NexperiaDatasheet (PDF)

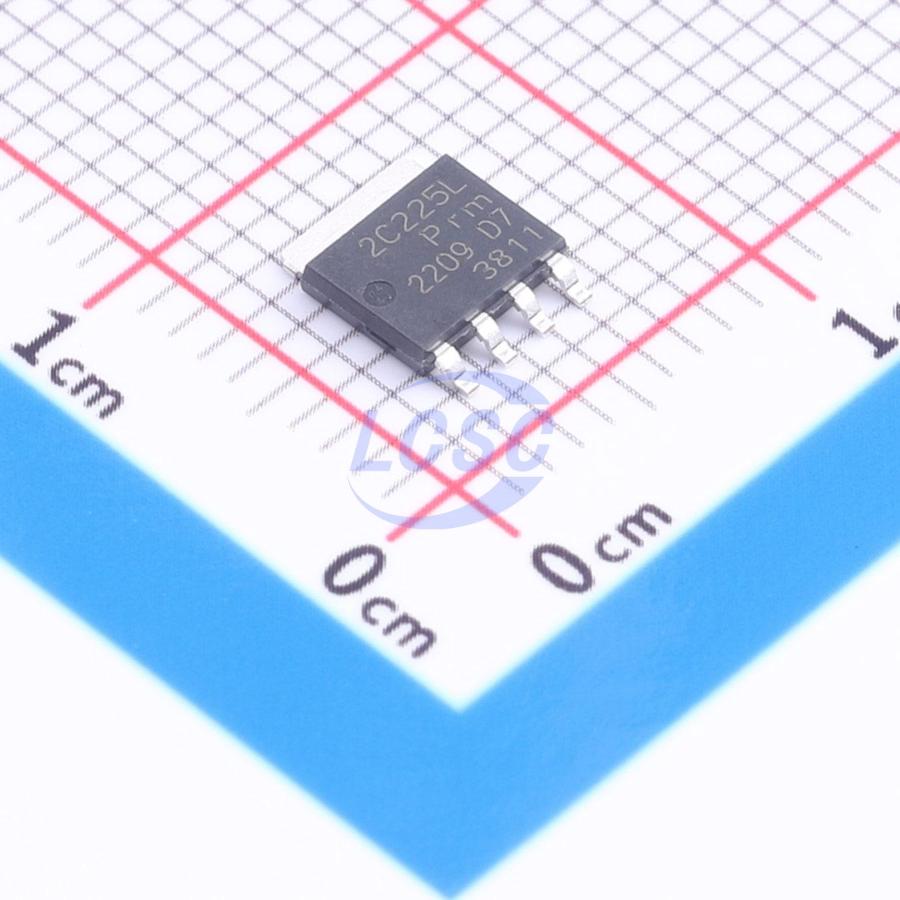

PSMN2R2-25YLC,115
106W 25V 100A 2.4mΩ@10V 1 N-channel N-Channel SOT-669 Single FETs, MOSFETs RoHS
SOT-669ROHS3 CompliantActive
MOSFET N-CH 25V 100A SOT-669
- Manufacturer
- Nexperia
- Manufacturer part #
- PSMN2R2-25YLC,115
- Store part #
- C553252
- Package / case
- SOT-669
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
250 in stock
#C553252
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹230.53 | ₹230.53 |
| 10+ | ₹197.01 | ₹1,970.10 |
| 30+ | ₹176.12 | ₹5,283.60 |
| 100+ | ₹154.57 | ₹15,457.00 |
| 500+ | ₹144.99 | ₹72,495.00 |
| 1,500+ | ₹140.63 | ₹2,10,945.00 |
1 × ₹230.53
₹230.53
excl. GST
₹272.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
PSMN2R2-25YLC,115
₹230.53 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 617pF
- Ciss-Input Capacitance
- 2.542nF
- Pd - Power Dissipation
- 106W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 25V
- Current - Continuous Drain(Id)
- 100A
- Reverse Transfer Capacitance (Crss)
- 216pF
- RDS(on)
- 2.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 39nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 1.95V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.14 g
Overview
Logic level enhancement-mode N-channel MOSFET in LFPAK package. This product is designed and qualified for use in industrial, communications, and domestic equipment.
Applications
- DC-DC converter
- Li-ion battery protection
- Load switch
- Power "OR" function
- Server power supply
- Synchronous rectifier
Key features
- High-reliability Power SO8 package, operable up to 175°C
- Low parasitic inductance and resistance
- NextPower super-junction technology, optimized for 4.5V gate drive
- Ultra-low QG, QGD, and QOSS for high system efficiency across light and heavy loads
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PSMN2R5-30YL,115#C553256Nexperia · SOT-669 | Nexperia | SOT-669 | 99 | ₹255.42 · 99 in stock | View |
 | PSMN1R7-30YL,115#C553235Nexperia · SOT-669 | Nexperia | SOT-669 | 39 | ₹368.40 · 39 in stock | View |
 | BUK7Y7R2-60EX#C549928Nexperia · SOT-669 | Nexperia | SOT-669 | 16 | ₹160.32 · 16 in stock | View |
 | PSMN2R0-30YLDX#C553246Nexperia · SOT-669 | Nexperia | SOT-669 | 39 | ₹119.43 · 39 in stock | View |
 | PSMNR60-25YLHX#C553351Nexperia · SOT-669 | Nexperia | SOT-669 | 9 | ₹604.88 · 9 in stock | View |
