Nexperia

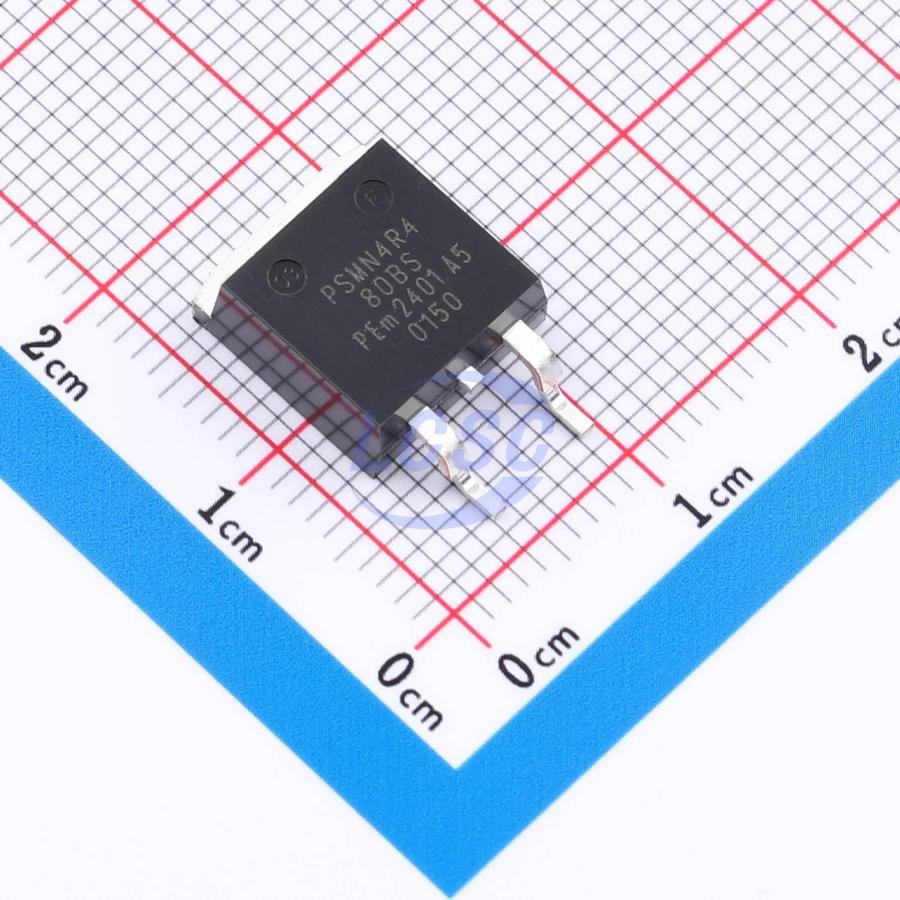

PSMN4R4-80BS,118

306W 80V 100A 4.5mΩ@10V 1 N-channel N-Channel D2PAK Single FETs, MOSFETs RoHS

D2PAKROHS3 CompliantActive

Manufacturer: Nexperia
Manufacturer part #: PSMN4R4-80BS,118
Store part #: C553297
Package / case: D2PAK
Category: Single FETs, MOSFETs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

77 in stock

#C553297

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹626.16	₹626.16
10+	₹533.65	₹5,336.50
30+	₹478.91	₹14,367.30
100+	₹423.31	₹42,331.00
500+	₹397.68	₹1,98,840.00
800+	₹386.17	₹3,08,936.00

Quantity (min 1)

1 × ₹626.16

₹626.16

excl. GST

₹738.87 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 800 per reel

PSMN4R4-80BS,118

₹626.16 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Capacitance(Coss): 700pF
Ciss-Input Capacitance: 8.4nF
Pd - Power Dissipation: 306W
Operating Temperature: -55℃~+175℃
Drain to Source Voltage: 80V
Current - Continuous Drain(Id): 100A
Reverse Transfer Capacitance (Crss): 336pF
RDS(on): 4.5mΩ@10V
Number: 1 N-channel
Gate Charge(Qg): 125nC@10V
Vgs: ±20V
Gate Threshold Voltage (Vgs(th)): 3V
Type: N-Channel

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 800 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.742 g

Overview

Standard-level N-channel MOSFET in SOT404 package, operating up to 175°C. Designed and qualified for a wide range of industrial, communications, and consumer equipment.

Applications

DC-DC converters
Motor control
Load switches
Server power supplies

Key features

Low switching and conduction losses, high efficiency
Compatible with standard-level gate drive sources
