NexperiaDatasheet (PDF)

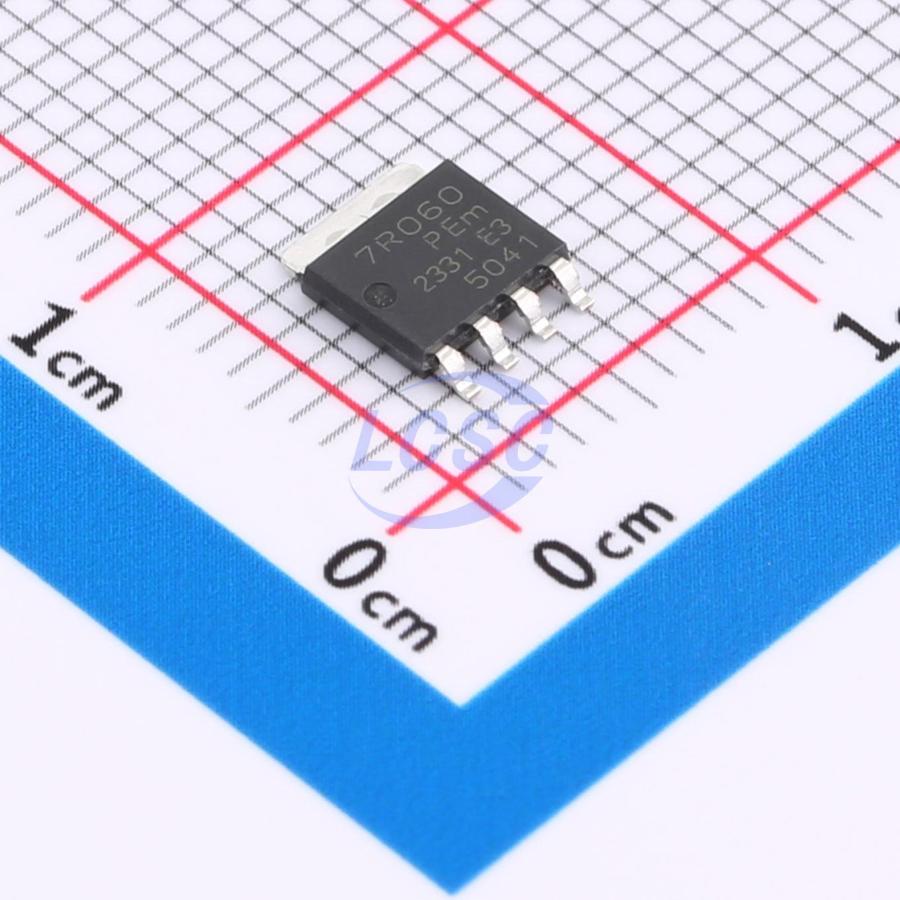

PSMN7R0-60YS,115
N-Channel 60V 89A 117W LFPAK56(PowerSO-8)
LFPAK56(PowerSO-8)ROHS3 CompliantActive
MOSFET N-CH 60V 89A LFPAK56(PowerSO-8)
- Manufacturer
- Nexperia
- Manufacturer part #
- PSMN7R0-60YS,115
- Store part #
- C478143
- Package / case
- LFPAK56(PowerSO-8)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
948 in stock
#C478143
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹145.81 | ₹145.81 |
| 10+ | ₹120.82 | ₹1,208.20 |
| 30+ | ₹106.91 | ₹3,207.30 |
| 100+ | ₹91.49 | ₹9,149.00 |
| 500+ | ₹84.53 | ₹42,265.00 |
| 1,500+ | ₹81.48 | ₹1,22,220.00 |
1 × ₹145.81
₹145.81
excl. GST
₹172.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
PSMN7R0-60YS,115
₹145.81 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 366pF
- Ciss-Input Capacitance
- 2.712nF
- Pd - Power Dissipation
- 117W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 89A
- Reverse Transfer Capacitance (Crss)
- 202pF
- RDS(on)
- 6.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 45nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.13 g
Overview
Standard level N-channel MOSFET in LFPAK package qualified to 175 °C. This product is designed and qualified for use in a wide range of industrial, communications and domestic equipment.
Applications
- DC-to-DC converters
- Motor control
- Lithium-ion battery protection
- Server power supplies
- Load switching
Key features
- Advanced TrenchMOS provides low RDSon and low gate charge
- High efficiency gains in switching power converters
- Improved mechanical and thermal characteristics
- LFPAK provides maximum power density in a Power SO8 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| BUK7Y9R9-80EX#C549932Nexperia · LFPAK56(PowerSO-8) | Nexperia | LFPAK56(PowerSO-8) | 80 | ₹327.20 · 80 in stock | View | |
| PSMN5R2-60YLX#C553306Nexperia · LFPAK56(PowerSO-8) | Nexperia | LFPAK56(PowerSO-8) | 74 | ₹328.94 · 74 in stock | View | |
 | PSMN5R5-60YS,115#C478157Nexperia · LFPAK56(PowerSO-8) | Nexperia | LFPAK56(PowerSO-8) | On request | ₹286.09 · 0 in stock | View |
 | BUK7Y8R7-60EX#C549930Nexperia · LFPAK56(PowerSO-8) | Nexperia | LFPAK56(PowerSO-8) | On request | ₹112.57 · 0 in stock | View |
 | BUK9Y8R5-80EX#C550051Nexperia · LFPAK56(PowerSO-8) | Nexperia | LFPAK56(PowerSO-8) | On request | ₹513.92 · 0 in stock | View |
