NexperiaDatasheet (PDF)

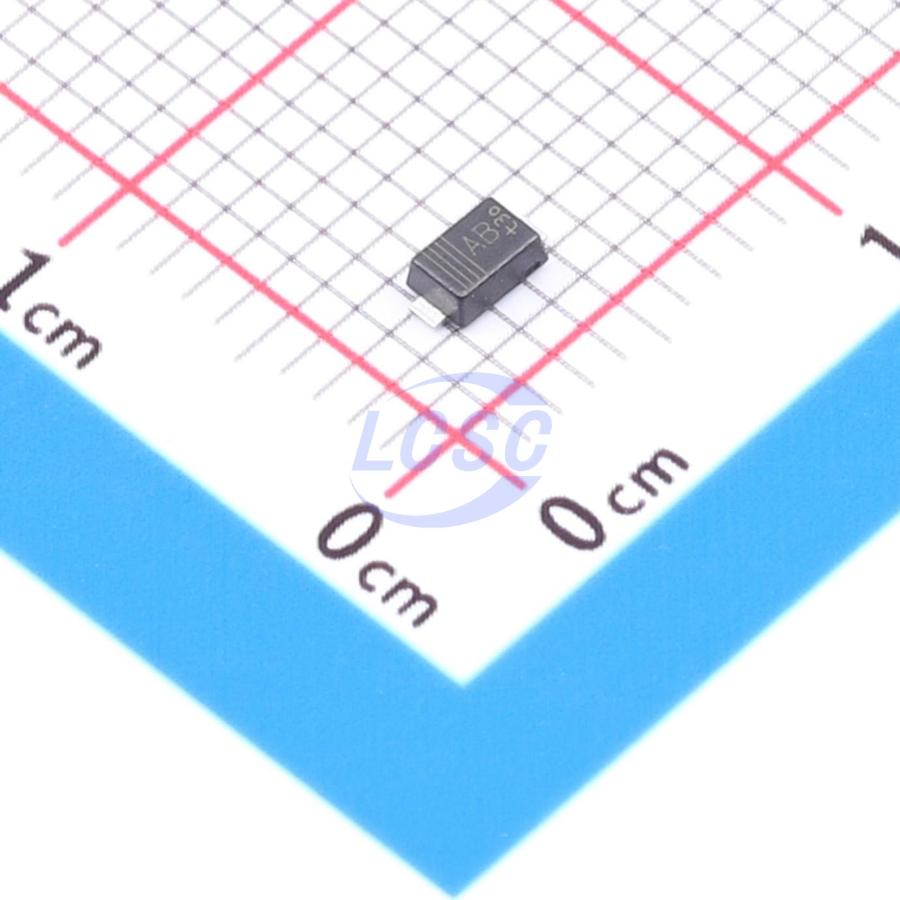

PTVS11VS1UR-QX
18.2V 400W 12.85V Unidirectional 11V SOD-123W TVS Diodes RoHS
SOD-123WROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PTVS11VS1UR-QX
- Store part #
- C20235880
- Package / case
- SOD-123W
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
241 in stock
#C20235880
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.04 | ₹61.04 |
| 10+ | ₹59.52 | ₹595.20 |
| 30+ | ₹58.44 | ₹1,753.20 |
| 100+ | ₹57.56 | ₹5,756.00 |
1 × ₹61.04
₹61.04
excl. GST
₹72.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PTVS11VS1UR-QX
₹61.04 for 1 + GST
Specifications
- Clamping Voltage
- 18.2V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Voltage - Breakdown
- 12.85V
- Number of Channels
- 1
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 2.5uA
- Reverse Stand-Off Voltage (Vrwm)
- 11V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.04 g
Overview
400 W unidirectional Transient Voltage Suppressor (TVS) in a SOD123W small and flat lead Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection.
Applications
- Power supply protection
- Automotive application
- Industrial application
- Power management
Key features
- Rated peak pulse power: Pppm = 400 W (350 W for 3V3)
- Reverse standoff voltage range: VRWM = 3.3 V to 64 V
- Reverse current: IRM = 0.001 μA
- Very low package height: 1 mm
- Small plastic package suitable for surface-mounted design
- Qualified according to AEC-Q101 and recommended for use in automotive applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PTVS10VS1UR-FS#C20421271FUXINSEMI · SOD-123 | FUXINSEMI | SOD-123 | 4,790 | ₹10.31 · 4,790 in stock | View |
 | SMF4L10A#C53152407FUXINSEMI · SOD-123 | FUXINSEMI | SOD-123 | 2,900 | ₹10.74 · 2,900 in stock | View |
 | SM4F12A#C42371531R+O · SOD-123FL | R+O | SOD-123FL | 1,370 | ₹8.94 · 1,370 in stock | View |
 | PTVS12VS1UR,115#C456115Nexperia · SOD-123W | Nexperia | SOD-123W | 975 | ₹32.32 · 975 in stock | View |
 | TPSMF4L10A#C1974632Littelfuse · SOD-123FL | Littelfuse | SOD-123FL | 825 | ₹35.28 · 825 in stock | View |
