NexperiaDatasheet (PDF)

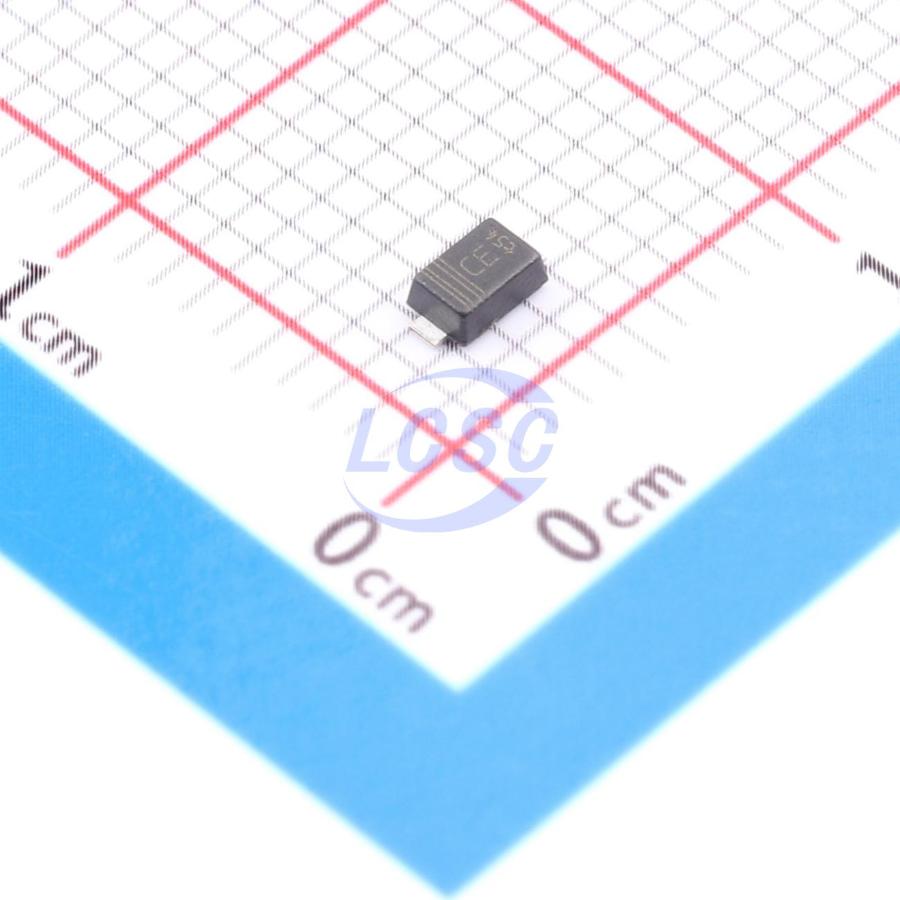

PTVS13VS1UTR,115
21.5VC Clamp 18.6A Ipp TVS DIODE SOD-123W
SOD-123WROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PTVS13VS1UTR,115
- Store part #
- C553370
- Package / case
- SOD-123W
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
500 in stock
#C553370
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹73.64 | ₹73.64 |
| 10+ | ₹57.56 | ₹575.60 |
| 30+ | ₹50.62 | ₹1,518.60 |
| 100+ | ₹41.93 | ₹4,193.00 |
| 500+ | ₹38.23 | ₹19,115.00 |
| 1,000+ | ₹35.84 | ₹35,840.00 |
1 × ₹73.64
₹73.64
excl. GST
₹86.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PTVS13VS1UTR,115
₹73.64 for 1 + GST
Specifications
- Clamping Voltage
- 21.5V
- Operating Temperature
- -55℃~+185℃
- Peak Pulse Current (Ipp)
- 18.6A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 14.4V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 13V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.034 g
Overview
400 W unidirectional Transient Voltage Suppressor (TVS) in a SOD123W small and flat lead low-profile Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection in high-temperature applications.
Applications
- Power supply protection
- Automotive application
- Industrial application
- Power management
- High-temperature applications
Key features
- Rated peak pulse power: High temperature stability Tj ≤ 185 °C, P PPM = 400 W (350 W for 3V3)
- Reverse standoff voltage range: V RWM = 3.3 V to 64 V, Small plastic package suitable for surface-mounted design
- Reverse current: I RM = 0.001 μA
- AEC-Q101 qualified
- Very low package height: 1 mm
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPSMF4L13A#C3700245Littelfuse · SOD-123F | Littelfuse | SOD-123F | 95 | ₹40.87 · 95 in stock | View |
 | SMF4L13A#C5806864LGE · SOD-123FL | LGE | SOD-123FL | 545 | ₹11.46 · 545 in stock | View |
| SMF4L13A#C1973107Littelfuse · SOD-123FL | Littelfuse | SOD-123FL | 2,765 | ₹31.95 · 2,765 in stock | View | |
| SM4F13A-TP#C19992544MCC · SOD-123FL | MCC | SOD-123FL | 2,255 | ₹11.32 · 2,255 in stock | View | |
 | P4SMFT13A#C48392731Slkor · SMF(SOD-123FL) | Slkor | SMF(SOD-123FL) | 2,360 | ₹4.97 · 2,360 in stock | View |
