JSMSEMI

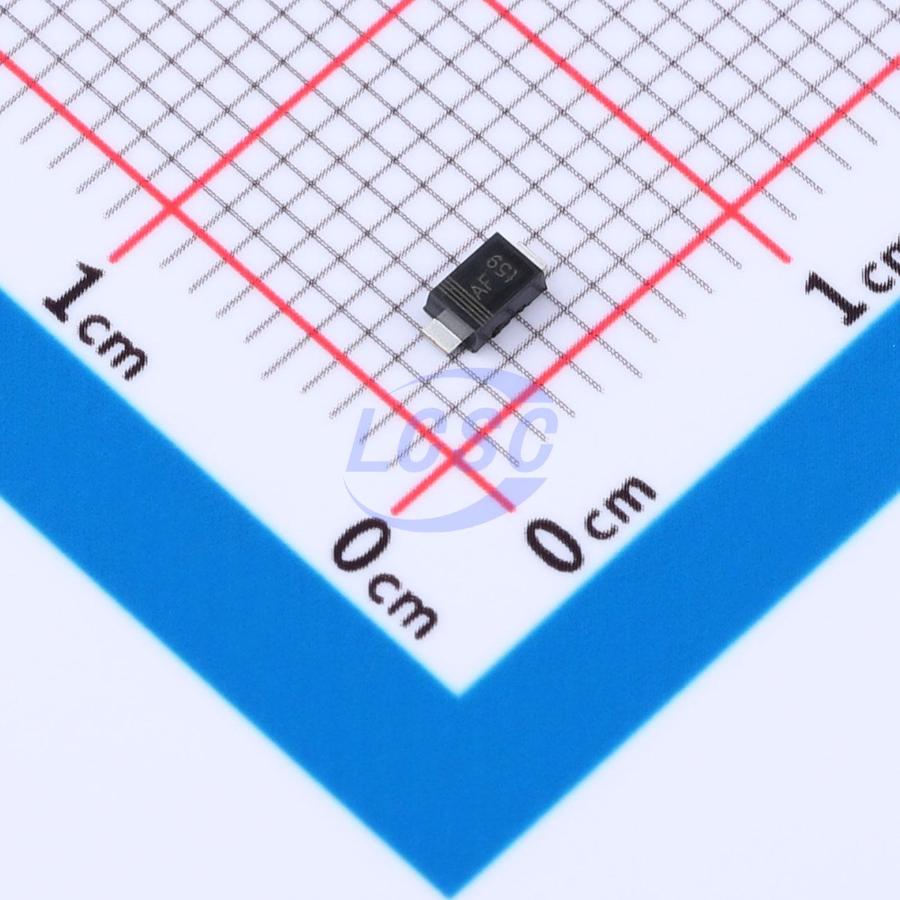

PTVS15VS1UR,115-JSM

32V 120A@8/20us 3.8kW@8/20us 16.7V Unidirectional 15V SOD-123FL TVS Diodes RoHS

SOD-123FLROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: PTVS15VS1UR,115-JSM
Store part #: C53114110
Package / case: SOD-123FL
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,920 in stock

#C53114110

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
10+	₹8.16	₹81.60
100+	₹6.50	₹650.00
300+	₹5.68	₹1,704.00
3,000+	₹5.05	₹15,150.00
6,000+	₹4.55	₹27,300.00
9,000+	₹4.30	₹38,700.00

Quantity (min 10, multiples of 10)

10 × ₹8.16

₹81.60

excl. GST

₹96.29 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

PTVS15VS1UR,115-JSM

₹81.60 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 32V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 120A@8/20us
Peak Pulse Power Dissipation (Ppp): 3.8kW@8/20us
Voltage - Breakdown: 16.7V
Number of Channels: 1
type: TVS
Polarity: Unidirectional
Reverse Leakage Current (Ir): 500nA
Reverse Stand-Off Voltage (Vrwm): 15V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.034 g

Overview

Applications

Mobile phones and accessories
Microprocessor-based devices
Personal digital assistants (PDAs)
Laptops, desktops, and servers
Portable instruments

Key features

3800W peak pulse power (pulse duration tp = 8/20 µs)
Miniature SOD123FL package
Unidirectional configuration
Solid-state silicon avalanche technology
Low clamping voltage
Low leakage current
Protects one data/power line, compliant with:
IEC 61000-4-2 ±30kV contact discharge, ±30kV air discharge
IEC 61000-4-4 (EFT) 40A (5/50 ns)
IEC 61000-4-5 (surge) 120A (8/20 µs)
