NexperiaDatasheet (PDF)

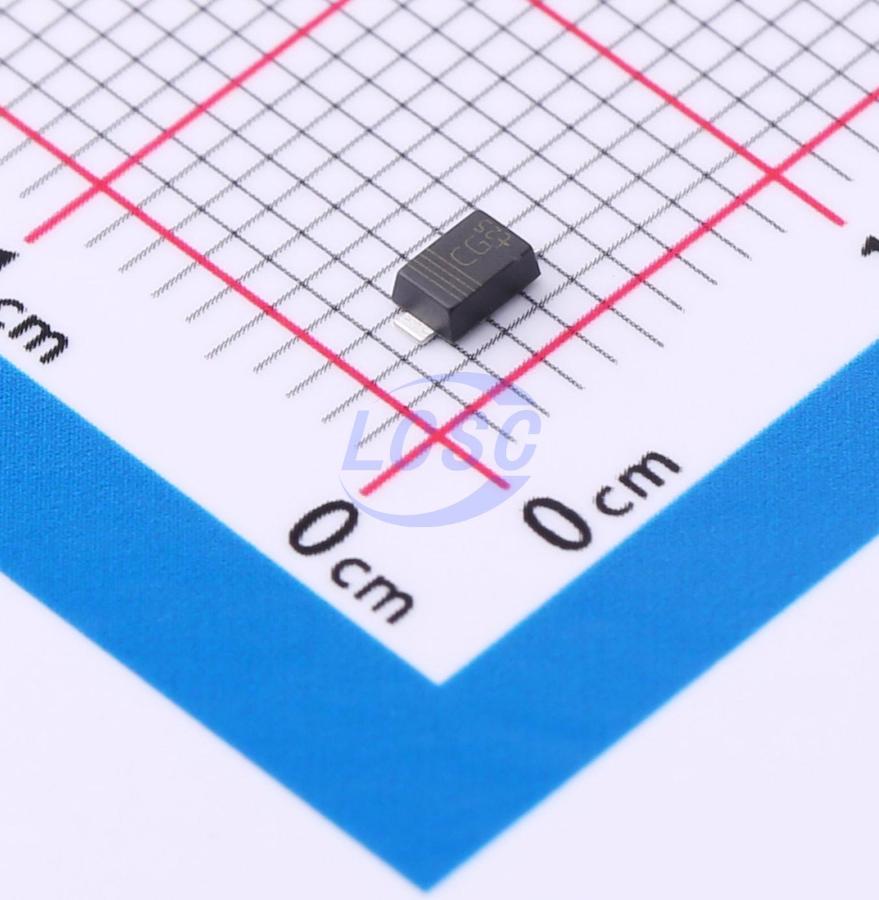

PTVS15VS1UTR,115
24.4VC Clamp 16.4A Ipp TVS DIODE SOD-123W
SOD-123WROHS3 CompliantActive
TVS DIODE 15VWM 24.4VC SOD-123W
- Manufacturer
- Nexperia
- Manufacturer part #
- PTVS15VS1UTR,115
- Store part #
- C553375
- Package / case
- SOD-123W
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
240 in stock
#C553375
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.59 | ₹167.95 |
| 50+ | ₹26.33 | ₹1,316.50 |
| 150+ | ₹23.22 | ₹3,483.00 |
| 500+ | ₹19.34 | ₹9,670.00 |
| 3,000+ | ₹17.61 | ₹52,830.00 |
| 6,000+ | ₹16.56 | ₹99,360.00 |
5 × ₹33.59
₹167.95
excl. GST
₹198.18 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PTVS15VS1UTR,115
₹167.95 for 5 + GST
Specifications
- Clamping Voltage
- 24.4V
- Operating Temperature
- -55℃~+185℃
- Peak Pulse Current (Ipp)
- 16.4A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 16.7V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1nA
- Reverse Stand-Off Voltage (Vrwm)
- 15V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
400 W unidirectional Transient Voltage Suppressor (TVS) in a SOD123W small and flat lead low-profile Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection in high-temperature applications.
Applications
- Power supply protection
- Automotive application
- Industrial application
- Power management
- High-temperature applications
Key features
- Rated peak pulse power: High temperature stability Tj ≤ 185 °C, P PPM = 400 W (350 W for 3V3)
- Reverse standoff voltage range: V RWM = 3.3 V to 64 V, Small plastic package suitable for surface-mounted design
- Reverse current: I RM = 0.001 μA
- AEC-Q101 qualified
- Very low package height: 1 mm
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PTVS15VS1UR,115#C513104Nexperia · SOD-123W | Nexperia | SOD-123W | 6,650 | ₹34.90 · 6,650 in stock | View |
 | SMF4L15A#C5806865LGE · SOD-123FL | LGE | SOD-123FL | 2,860 | ₹12.24 · 2,860 in stock | View |
 | S4MF15A#C5161276ZHIDE · SOD-123FL | ZHIDE | SOD-123FL | 2,950 | ₹7.73 · 2,950 in stock | View |
 | SMF4L15A#C54741594MDD(Microdiode Semiconductor) · SOD-123FL | MDD(Microdiode Semiconductor) | SOD-123FL | 3,240 | ₹4.71 · 3,240 in stock | View |
 | SMF4L28A#C696689SEMIWARE · SOD-123FL | SEMIWARE | SOD-123FL | 130 | ₹10.46 · 130 in stock | View |
