NexperiaDatasheet (PDF)

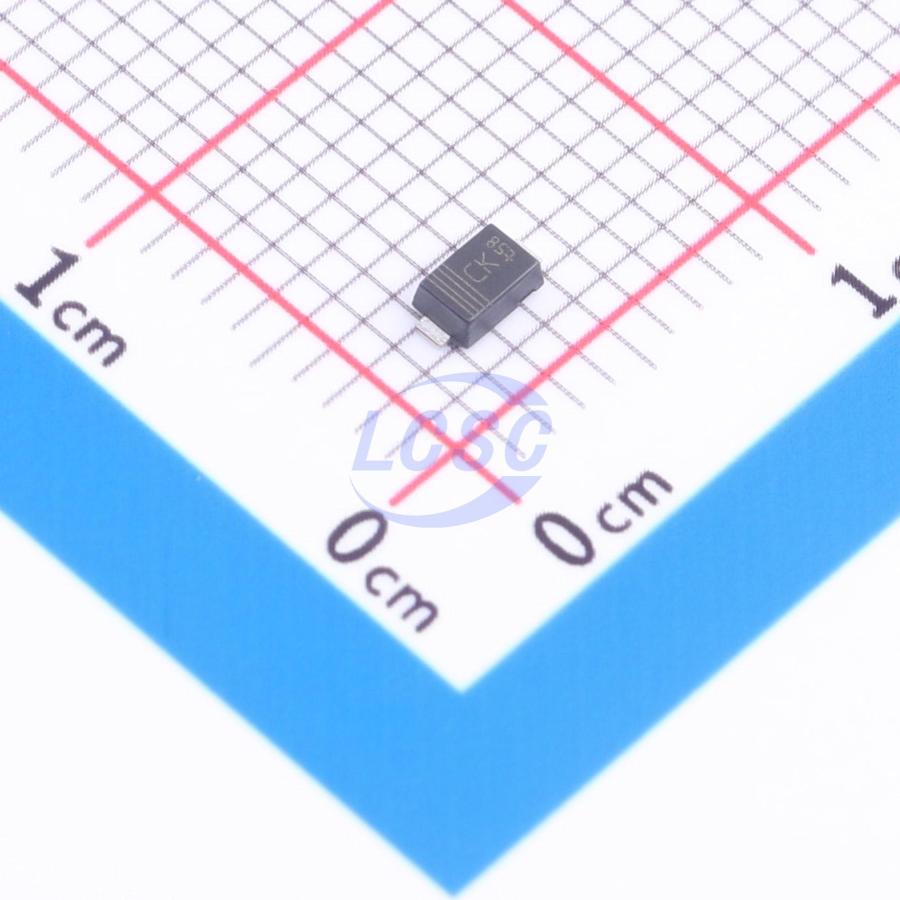

PTVS18VS1UTR,115
29.2VC Clamp 13.7A Ipp TVS DIODE SOD-123W
SOD-123WROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PTVS18VS1UTR,115
- Store part #
- C553385
- Package / case
- SOD-123W
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
99 in stock
#C553385
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹94.70 | ₹94.70 |
| 10+ | ₹75.81 | ₹758.10 |
| 30+ | ₹66.47 | ₹1,994.10 |
| 100+ | ₹57.13 | ₹5,713.00 |
| 500+ | ₹51.70 | ₹25,850.00 |
| 1,000+ | ₹48.66 | ₹48,660.00 |
1 × ₹94.70
₹94.70
excl. GST
₹111.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PTVS18VS1UTR,115
₹94.70 for 1 + GST
Specifications
- Clamping Voltage
- 29.2V
- Operating Temperature
- -55℃~+185℃
- Peak Pulse Current (Ipp)
- 13.7A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 20V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1nA
- Reverse Stand-Off Voltage (Vrwm)
- 18V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.062 g
Overview
400 W unidirectional Transient Voltage Suppressor (TVS) in a SOD123W small and flat lead low-profile Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection in high-temperature applications.
Applications
- Power supply protection
- Automotive application
- Industrial application
- Power management
- High-temperature applications
Key features
- Rated peak pulse power: High temperature stability Tj ≤ 185 °C, P PPM = 400 W (350 W for 3V3)
- Reverse standoff voltage range: V RWM = 3.3 V to 64 V, Small plastic package suitable for surface-mounted design
- Reverse current: I RM = 0.001 μA
- AEC-Q101 qualified
- Very low package height: 1 mm
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PTVS18VS1UR,115#C553384Nexperia · SOD-123W | Nexperia | SOD-123W | 2,350 | ₹30.28 · 2,350 in stock | View |
 | S4MF18AX#C6423782JingYang · SOD-123FL | JingYang | SOD-123FL | 2,730 | ₹6.84 · 2,730 in stock | View |
 | SMF4L18AQ-7#C7083468DIODES · DO-219AA | DIODES | DO-219AA | 40 | ₹39.28 · 40 in stock | View |
 | SM4F18A#C42371534R+O · SOD-123FL | R+O | SOD-123FL | 2,540 | ₹11.30 · 2,540 in stock | View |
 | TPSMF4L18A#C53278605TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 2,870 | ₹7.96 · 2,870 in stock | View |
