NexperiaDatasheet (PDF)

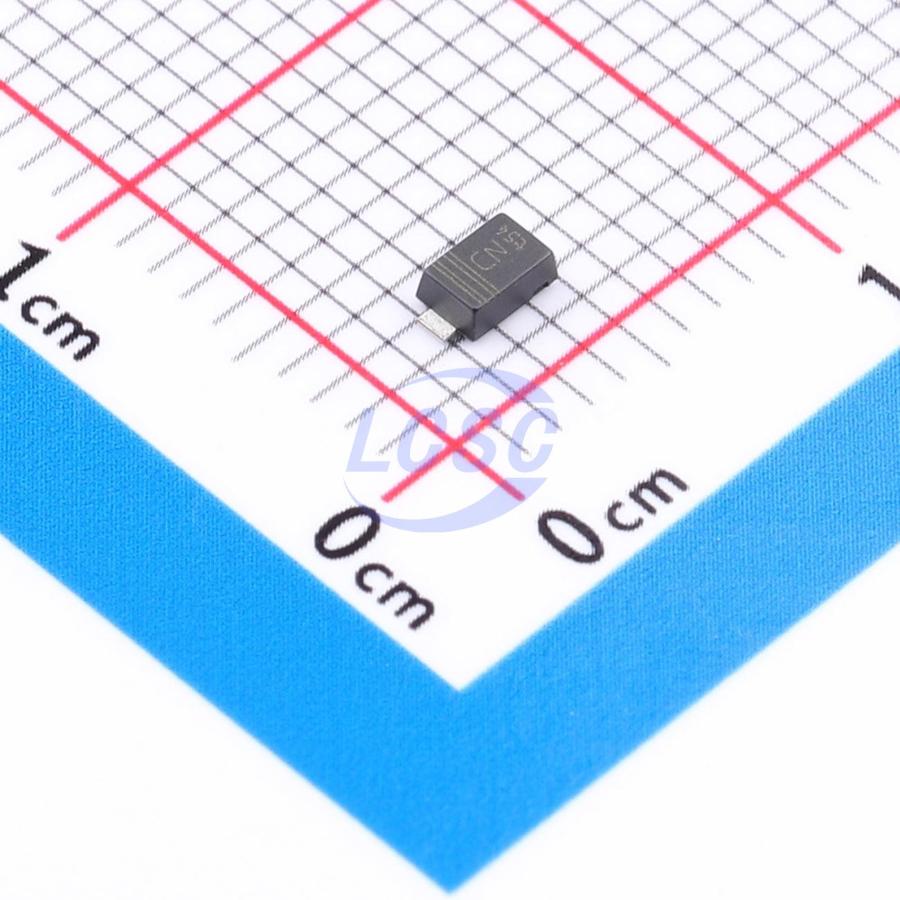

PTVS24VS1UTR,115
38.9VC Clamp 10.3A Ipp TVS DIODE SOD-123W
SOD-123WROHS3 CompliantActive
TVS DIODE 24VWM 38.9VC SOD-123W
- Manufacturer
- Nexperia
- Manufacturer part #
- PTVS24VS1UTR,115
- Store part #
- C553399
- Package / case
- SOD-123W
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
141 in stock
#C553399
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.17 | ₹72.17 |
| 10+ | ₹56.52 | ₹565.20 |
| 30+ | ₹49.56 | ₹1,486.80 |
| 100+ | ₹41.30 | ₹4,130.00 |
| 500+ | ₹37.39 | ₹18,695.00 |
| 1,000+ | ₹35.22 | ₹35,220.00 |
1 × ₹72.17
₹72.17
excl. GST
₹85.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PTVS24VS1UTR,115
₹72.17 for 1 + GST
Specifications
- Clamping Voltage
- 38.9V
- Operating Temperature
- -55℃~+185℃
- Peak Pulse Current (Ipp)
- 10.3A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 26.7V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.04 g
Overview
400 W unidirectional Transient Voltage Suppressor (TVS) in a SOD123W small and flat lead low-profile Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection in high-temperature applications.
Applications
- Power supply protection
- Automotive application
- Industrial application
- Power management
- High-temperature applications
Key features
- Rated peak pulse power: High temperature stability Tj ≤ 185 °C, P PPM = 400 W (350 W for 3V3)
- Reverse standoff voltage range: V RWM = 3.3 V to 64 V, Small plastic package suitable for surface-mounted design
- Reverse current: I RM = 0.001 μA
- AEC-Q101 qualified
- Very low package height: 1 mm
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PTVS24VS1UR,115#C553398Nexperia · SOD-123W | Nexperia | SOD-123W | 1,820 | ₹36.65 · 1,820 in stock | View |
 | PTVS24VS1UR#C5380693FUXINSEMI · SOD-123 | FUXINSEMI | SOD-123 | 7,620 | ₹6.44 · 7,620 in stock | View |
 | TP4LSMF24A#C52145950TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 4,460 | ₹8.04 · 4,460 in stock | View |
 | TPTVS24VS1UR#C52145951TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 2,150 | ₹8.02 · 2,150 in stock | View |
 | SM4F24A#C50325420R+O · SOD-123FL | R+O | SOD-123FL | 12,700 | ₹5.41 · 12,700 in stock | View |
