NexperiaDatasheet (PDF)

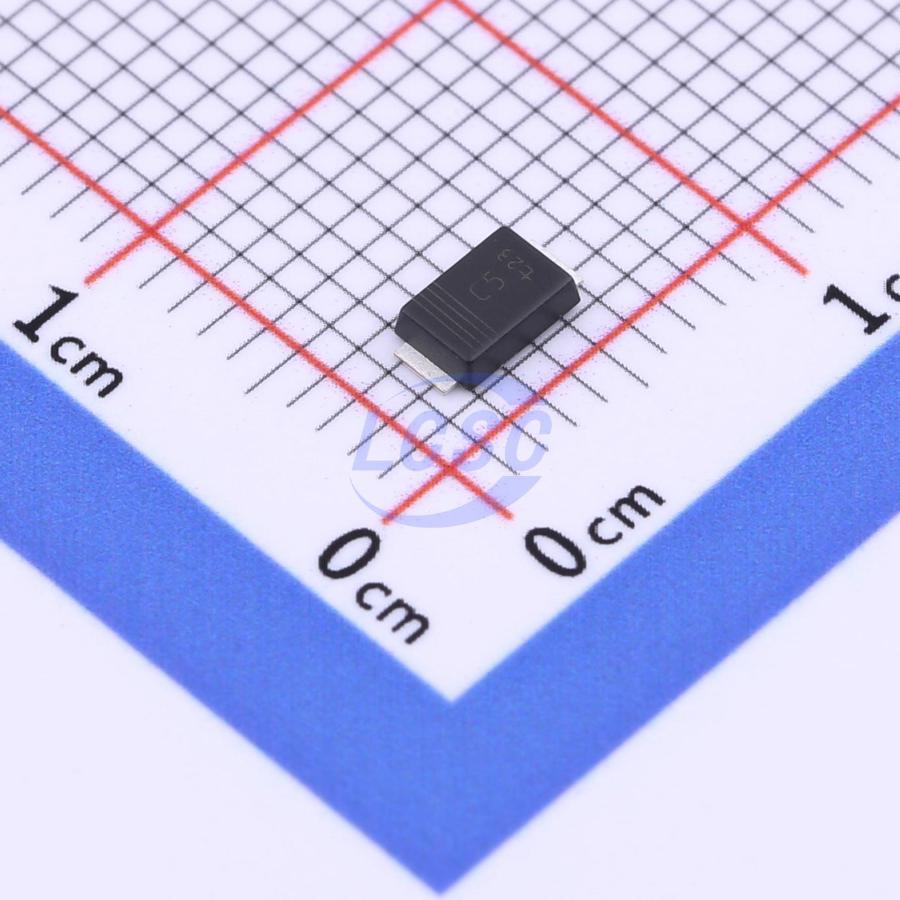

PTVS3V3P1UTP,115
8VC Clamp 75A Ipp TVS DIODE SOD-128
SOD-128ROHS3 CompliantActive
TVS DIODE 3.3VWM 8VC SOD-128
- Manufacturer
- Nexperia
- Manufacturer part #
- PTVS3V3P1UTP,115
- Store part #
- C553420
- Package / case
- SOD-128
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
360 in stock
#C553420
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.56 | ₹202.80 |
| 50+ | ₹31.74 | ₹1,587.00 |
| 150+ | ₹27.97 | ₹4,195.50 |
| 500+ | ₹23.25 | ₹11,625.00 |
| 3,000+ | ₹21.14 | ₹63,420.00 |
| 6,000+ | ₹19.88 | ₹1,19,280.00 |
5 × ₹40.56
₹202.80
excl. GST
₹239.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PTVS3V3P1UTP,115
₹202.80 for 5 + GST
Specifications
- Clamping Voltage
- 8V
- Operating Temperature
- -55℃~+185℃
- Peak Pulse Current (Ipp)
- 75A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 5.2V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 600uA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.051 g
Overview
600 W unidirectional Transient Voltage Suppressor (TVS) in a SOD128 small and flat lead Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection in high-temperature applications.
Applications
- Power supply protection
- Automotive application
- Industrial application
- Power management
- High-temperature applications
Key features
- Peak pulse power rating: PPPM = 600 W
- High temperature stability: TJ = 185℃
- Reverse standoff voltage range: VRWM = 3.3V to 64V
- Small plastic package for SMT design
- Reverse current: IRM = 0.001uA
- AEC-Q101 qualified
- Ultra-low profile package: 1 mm
