NexperiaDatasheet (PDF)

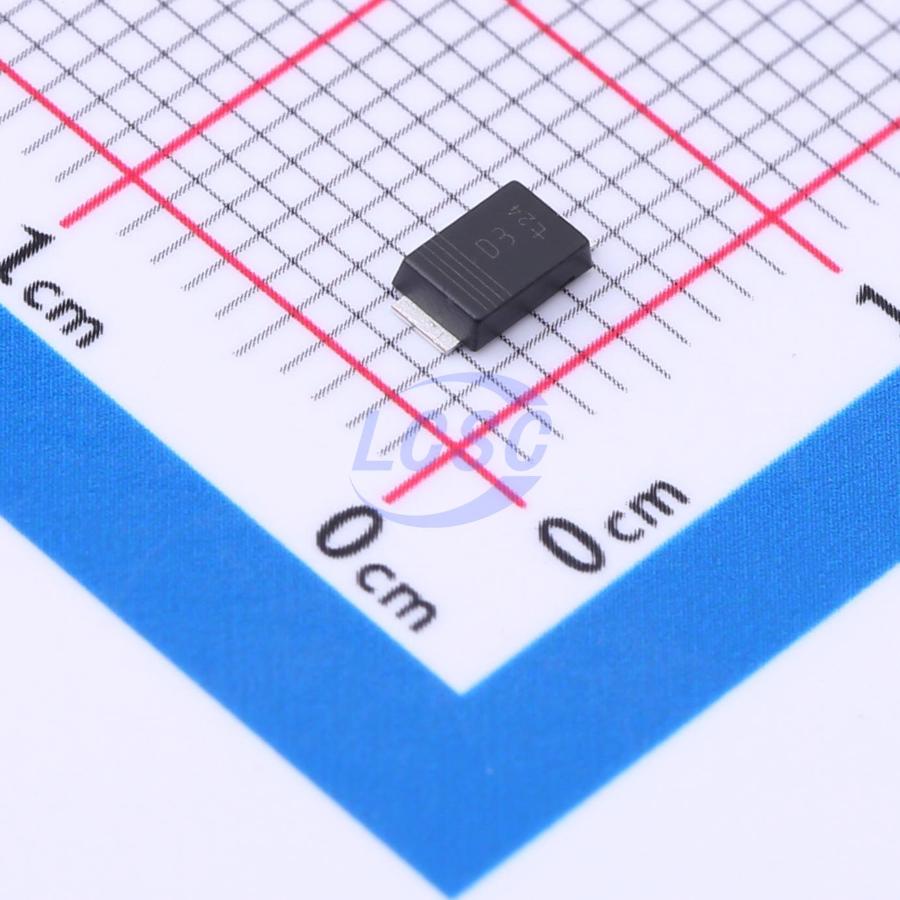

PTVS51VP1UTP,115
82.4VC Clamp 7.3A Ipp TVS DIODE SOD-128
SOD-128ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PTVS51VP1UTP,115
- Store part #
- C553437
- Package / case
- SOD-128
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4 in stock
#C553437
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.15 | ₹57.15 |
| 10+ | ₹45.64 | ₹456.40 |
| 30+ | ₹40.85 | ₹1,225.50 |
| 100+ | ₹34.56 | ₹3,456.00 |
| 500+ | ₹30.64 | ₹15,320.00 |
| 1,000+ | ₹28.91 | ₹28,910.00 |
1 × ₹57.15
₹57.15
excl. GST
₹67.44 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PTVS51VP1UTP,115
₹57.15 for 1 + GST
Specifications
- Clamping Voltage
- 82.4V
- Peak Pulse Current (Ipp)
- 7.3A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 56.7V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 51V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
600 W unidirectional Transient Voltage Suppressor (TVS) in a SOD128 small and flat lead Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection in high-temperature applications.
Applications
- Power supply protection
- Automotive application
- Industrial application
- Power management
- High-temperature applications
Key features
- Peak pulse power rating: PPPM = 600 W
- High temperature stability: TJ = 185℃
- Reverse standoff voltage range: VRWM = 3.3V to 64V
- Small plastic package for SMT design
- Reverse current: IRM = 0.001uA
- AEC-Q101 qualified
- Ultra-low profile package: 1 mm
