NexperiaDatasheet (PDF)

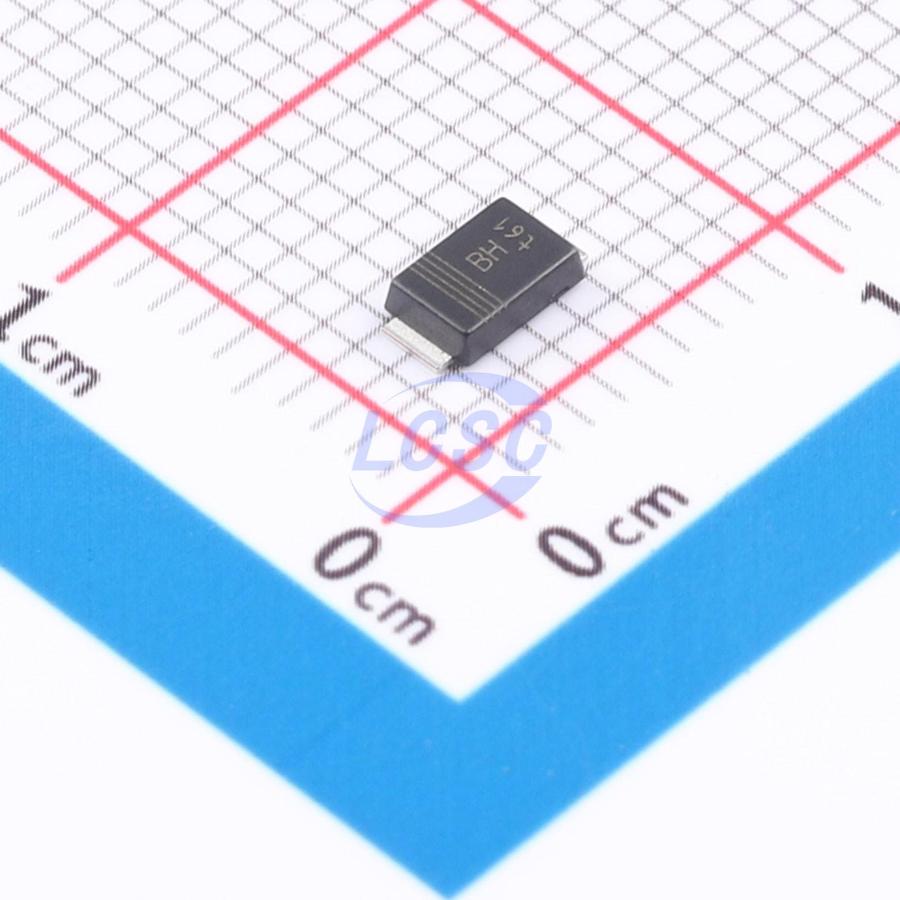

PTVS58VP1UP,115
93.6VC Clamp 6.4A Ipp TVS DIODE SOD-128
SOD-128ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PTVS58VP1UP,115
- Store part #
- C553443
- Package / case
- SOD-128
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
174 in stock
#C553443
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹51.70 | ₹51.70 |
| 10+ | ₹50.39 | ₹503.90 |
| 30+ | ₹49.52 | ₹1,485.60 |
| 100+ | ₹48.66 | ₹4,866.00 |
1 × ₹51.70
₹51.70
excl. GST
₹61.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PTVS58VP1UP,115
₹51.70 for 1 + GST
Specifications
- Clamping Voltage
- 93.6V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 6.4A
- Peak Pulse Power Dissipation (Ppp)
- 600W
- Number of Channels
- 1
- Voltage - Breakdown
- 64.4V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1nA
- Reverse Stand-Off Voltage (Vrwm)
- 58V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.061 g
Overview
600 W unidirectional Transient Voltage Suppressor (TVS) in a SOD128 small and flat lead Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection.
Applications
- Power supply protection
- Automotive application
- Industrial application
- Power management
Key features
- Rated peak pulse power: P_PPM = 600 W
- Very low package height: 1 mm
- Reverse standoff voltage range: V_RWM = 3.3 V to 64 V
- Reverse current: I_RM = 0.001 μA
- AEC - Q101 qualified
