NexperiaDatasheet (PDF)

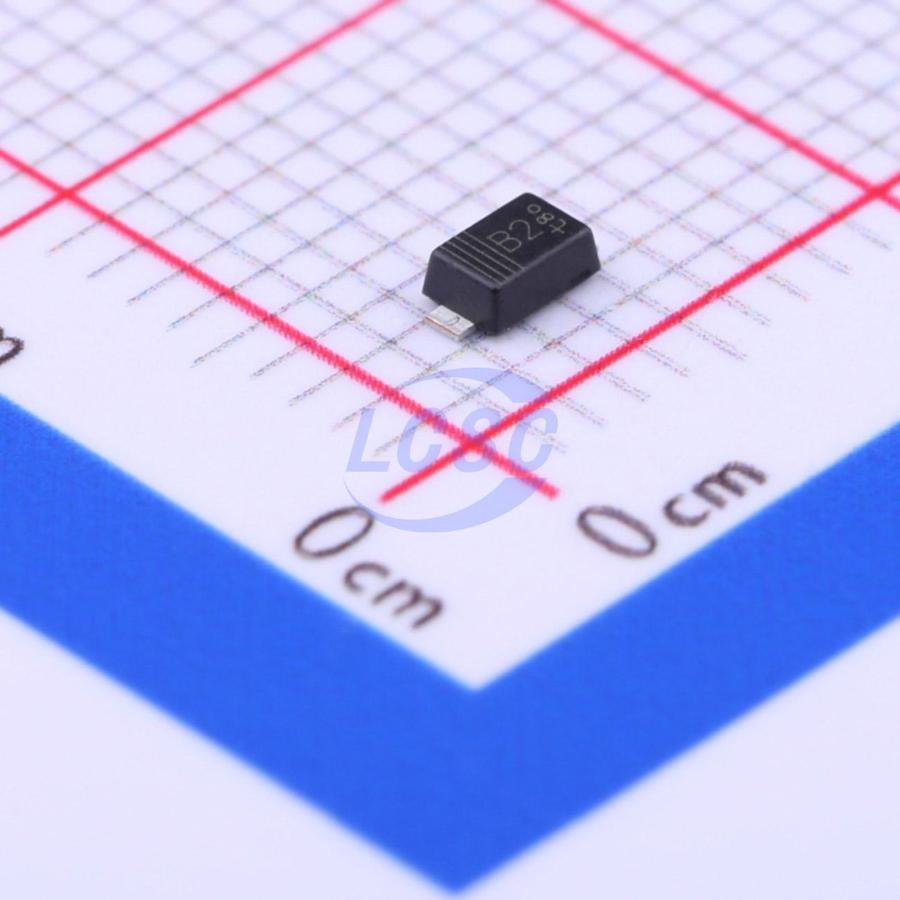

PTVS58VS1UR,115
93.6VC Clamp 4.3A Ipp TVS DIODE SOD-123W
SOD-123WROHS3 CompliantActive
TVS DIODE 58VWM 93.6VC SOD-123W
- Manufacturer
- Nexperia
- Manufacturer part #
- PTVS58VS1UR,115
- Store part #
- C272849
- Package / case
- SOD-123W
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,880 in stock
#C272849
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.56 | ₹227.80 |
| 50+ | ₹35.72 | ₹1,786.00 |
| 150+ | ₹31.49 | ₹4,723.50 |
| 500+ | ₹26.22 | ₹13,110.00 |
| 3,000+ | ₹23.88 | ₹71,640.00 |
| 6,000+ | ₹22.48 | ₹1,34,880.00 |
5 × ₹45.56
₹227.80
excl. GST
₹268.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PTVS58VS1UR,115
₹227.80 for 5 + GST
Specifications
- Clamping Voltage
- 93.6V
- Operating Temperature
- -55℃~+150℃
- Peak Pulse Current (Ipp)
- 4.3A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 64.4V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1nA
- Reverse Stand-Off Voltage (Vrwm)
- 58V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.3 g
Overview
400 W unidirectional Transient Voltage Suppressor (TVS) in a SOD123W small and flat lead low-profile Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection.
Applications
- Power supply protection
- Automotive application
- Industrial application
- Power management
Key features
- Rated peak pulse power: Small plastic package suitable for Pppm = 400 W (350 W for 3V3) surface-mounted design
- Reverse standoff voltage range: VRWM = 3.3 V to 64 V
- Reverse current: IRM = 0.001 μA
- AEC-Q101 qualified
- Very low package height: 1 mm
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SMF4L58AT1G#C26074954Littelfuse · SOD-123FL | Littelfuse | SOD-123FL | 3,000 | ₹37.64 · 3,000 in stock | View |
| TPSMF4L58A#C1974047Littelfuse · SOD-123FL | Littelfuse | SOD-123FL | 2,760 | ₹28.43 · 2,760 in stock | View | |
| SM4FJ58A#C52993718BORN · SOD-123FL | BORN | SOD-123FL | 3,000 | ₹7.40 · 3,000 in stock | View | |
 | BNPTVS58VS1UR#C48533910BORN · SOD-123FL | BORN | SOD-123FL | 4,630 | ₹7.17 · 4,630 in stock | View |
 | PTVS60VS1UTR,115#C553454Nexperia · SOD-123W | Nexperia | SOD-123W | 95 | ₹89.49 · 95 in stock | View |
