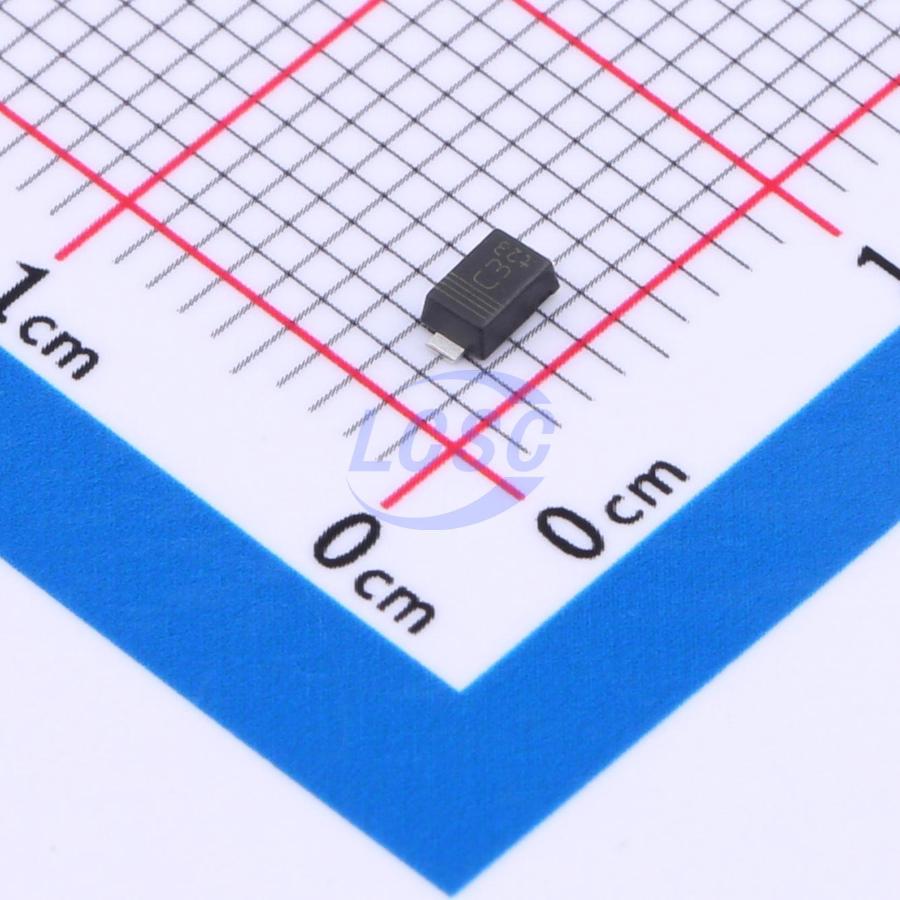

PTVS5V0S1UTR,115
9.2VC Clamp 43.5A Ipp TVS DIODE SOD-123W
SOD-123WROHS3 CompliantActive
TVS DIODE 5VWM 9.2VC SOD-123W
- Manufacturer
- Nexperia
- Manufacturer part #
- PTVS5V0S1UTR,115
- Store part #
- C553446
- Package / case
- SOD-123W
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
284 in stock
#C553446
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹80.58 | ₹80.58 |
| 10+ | ₹65.17 | ₹651.70 |
| 30+ | ₹57.35 | ₹1,720.50 |
| 100+ | ₹49.74 | ₹4,974.00 |
| 500+ | ₹45.18 | ₹22,590.00 |
| 1,000+ | ₹42.80 | ₹42,800.00 |
1 × ₹80.58
₹80.58
excl. GST
₹95.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PTVS5V0S1UTR,115
₹80.58 for 1 + GST
Specifications
- Clamping Voltage
- 9.2V
- Peak Pulse Current (Ipp)
- 43.5A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 6.4V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 5uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.035 g
Overview
400 W unidirectional Transient Voltage Suppressor (TVS) in a SOD123W small and flat lead low-profile Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection in high-temperature applications.
Applications
- Power supply protection
- Automotive application
- Industrial application
- Power management
- High-temperature applications
Key features
- Rated peak pulse power: High temperature stability Tj ≤ 185 °C, P PPM = 400 W (350 W for 3V3)
- Reverse standoff voltage range: V RWM = 3.3 V to 64 V, Small plastic package suitable for surface-mounted design
- Reverse current: I RM = 0.001 μA
- AEC-Q101 qualified
- Very low package height: 1 mm
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PTVS5V0S1UR,115#C478011Nexperia · SOD-123W | Nexperia | SOD-123W | 60,255 | ₹21.74 · 60,255 in stock | View |
 | TPSMF4L5.0A#C468929Littelfuse · SOD-123FL | Littelfuse | SOD-123FL | 2,490 | ₹27.89 · 2,490 in stock | View |
 | S4MF5.0A#C2683622ZHIDE · SOD-123FL | ZHIDE | SOD-123FL | 50 | ₹7.65 · 50 in stock | View |
 | SM4F5.0A#C50325416R+O · SOD-123FL | R+O | SOD-123FL | 2,700 | ₹5.05 · 2,700 in stock | View |
| SZSMF4L5.0AT3G#C22382283Littelfuse · SOD-123FL | Littelfuse | SOD-123FL | 4,609 | ₹55.54 · 4,609 in stock | View | |
