NexperiaDatasheet (PDF)

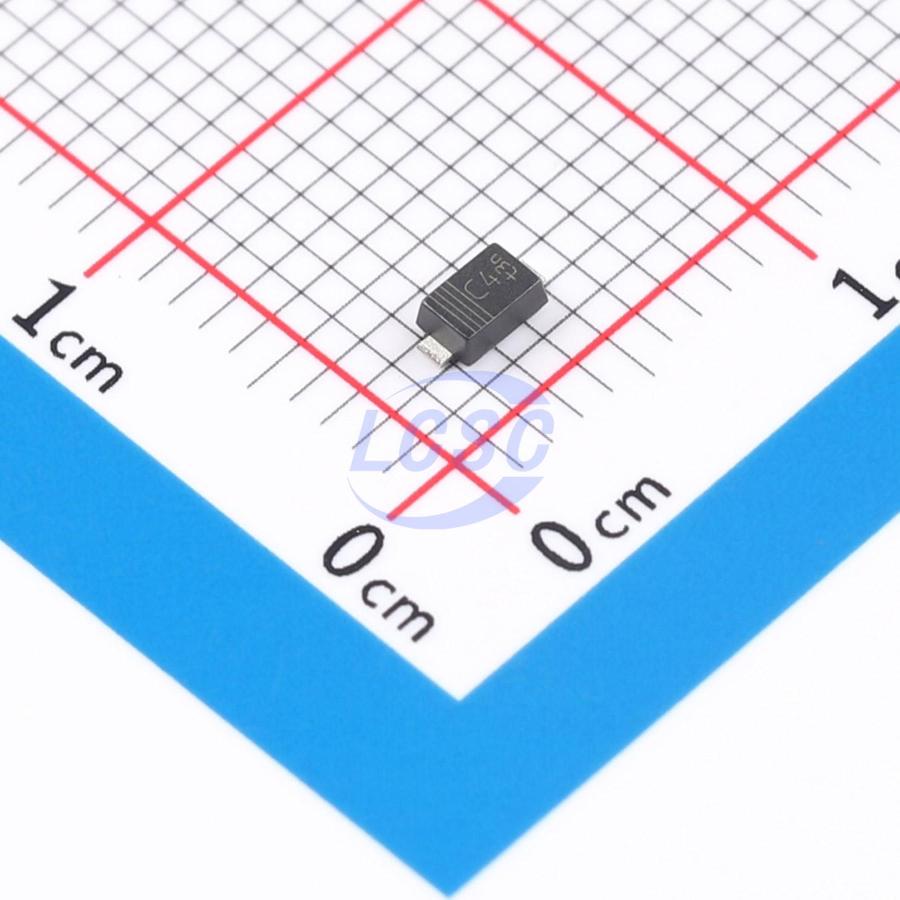

PTVS6V0S1UTR,115
10.3VC Clamp 38.8A Ipp TVS DIODE SOD-123W
SOD-123WROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PTVS6V0S1UTR,115
- Store part #
- C553460
- Package / case
- SOD-123W
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
829 in stock
#C553460
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹70.16 | ₹70.16 |
| 10+ | ₹54.73 | ₹547.30 |
| 30+ | ₹48.22 | ₹1,446.60 |
| 100+ | ₹39.97 | ₹3,997.00 |
| 500+ | ₹36.28 | ₹18,140.00 |
| 1,000+ | ₹34.11 | ₹34,110.00 |
1 × ₹70.16
₹70.16
excl. GST
₹82.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PTVS6V0S1UTR,115
₹70.16 for 1 + GST
Specifications
- Clamping Voltage
- 10.3V
- Operating Temperature
- -55℃~+185℃
- Peak Pulse Current (Ipp)
- 38.8A
- Peak Pulse Power Dissipation (Ppp)
- 400W
- Number of Channels
- 1
- Voltage - Breakdown
- 6.67V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 400uA
- Reverse Stand-Off Voltage (Vrwm)
- 6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.026 g
Overview
400 W unidirectional Transient Voltage Suppressor (TVS) in a SOD123W small and flat lead low-profile Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection in high-temperature applications.
Applications
- Power supply protection
- Automotive application
- Industrial application
- Power management
- High-temperature applications
Key features
- Rated peak pulse power: High temperature stability Tj ≤ 185 °C, P PPM = 400 W (350 W for 3V3)
- Reverse standoff voltage range: V RWM = 3.3 V to 64 V, Small plastic package suitable for surface-mounted design
- Reverse current: I RM = 0.001 μA
- AEC-Q101 qualified
- Very low package height: 1 mm
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PTVS6V0S1UR,115#C294622Nexperia · SOD-123W | Nexperia | SOD-123W | 2,175 | ₹45.83 · 2,175 in stock | View |
 | TPSMF4L6.0A#C5373325Littelfuse · SOD-123FL | Littelfuse | SOD-123FL | 3,030 | ₹24.33 · 3,030 in stock | View |
 | SM4F6.0A#C52145948TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 2,920 | ₹7.96 · 2,920 in stock | View |
 | TPSMF4L6.0A#C52145949TECH PUBLIC · SOD-123FL | TECH PUBLIC | SOD-123FL | 2,590 | ₹7.96 · 2,590 in stock | View |
 | SM4F6.0A#C50325417R+O · SOD-123FL | R+O | SOD-123FL | 1,140 | ₹5.31 · 1,140 in stock | View |
