TECH PUBLICDatasheet (PDF)

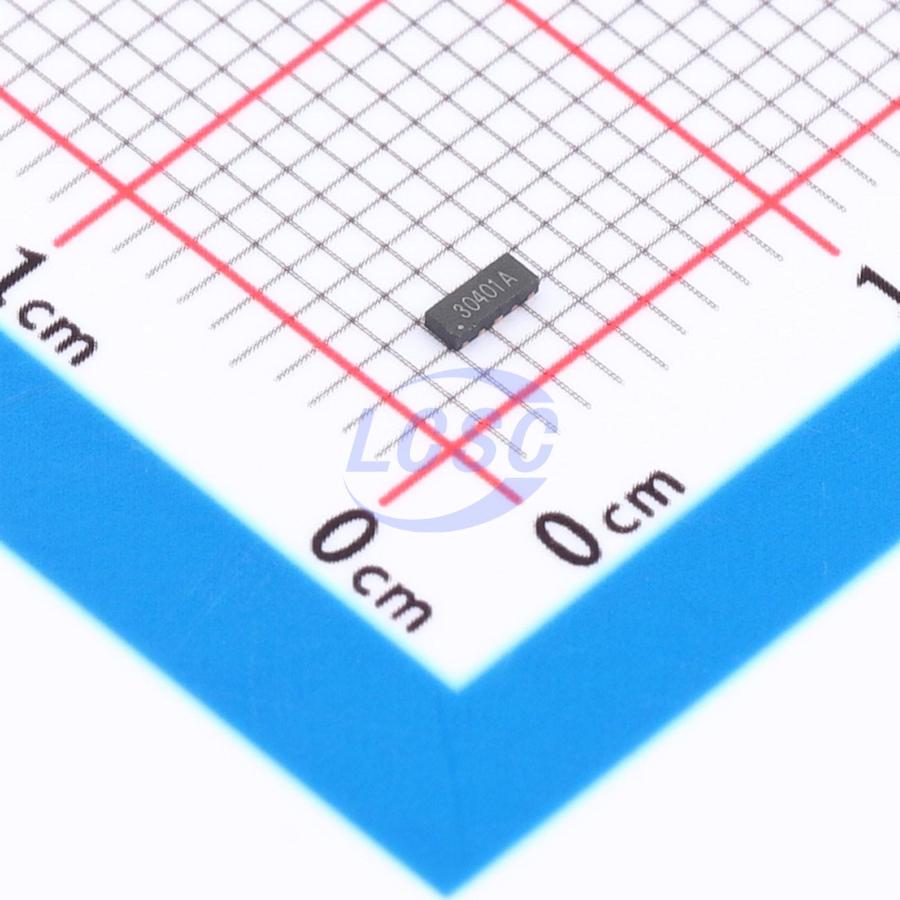

PUSB3F99X-TP
10V 60W@8/20us 3.8V Unidirectional 3.3V DFN2510-10 TVS Diodes
DFN2510-10RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- PUSB3F99X-TP
- Store part #
- C51939590
- Package / case
- DFN2510-10
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,895 in stock
#C51939590
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.84 | ₹79.20 |
| 50+ | ₹12.44 | ₹622.00 |
| 150+ | ₹10.74 | ₹1,611.00 |
| 500+ | ₹9.46 | ₹4,730.00 |
| 3,000+ | ₹8.44 | ₹25,320.00 |
| 6,000+ | ₹7.94 | ₹47,640.00 |
5 × ₹15.84
₹79.20
excl. GST
₹93.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PUSB3F99X-TP
₹79.20 for 5 + GST
Specifications
- Clamping Voltage
- 10V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Power Dissipation (Ppp)
- 60W@8/20us
- Voltage - Breakdown
- 3.8V
- Number of Channels
- Four channels
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1 g
Overview
Applications
- USB 3.1, USB 3.2, and MDDI ports
- PCI Express and Serial SATA ports
- Laptops
- Tablets
Key features
- 4-channel unidirectional ESD protection
- Typically used for high-speed ports
- Low operating voltage: 3.3V
- Typical I/O channel input capacitance as low as 0.35pF (typical)
- IEC 61000-4-2 (ESD) immunity test: air discharge ±15kV, contact discharge ±8kV
- IEC 61000-4-4 (EFT): 40A (5/50ns)
- Fully lead-free, fully RoHS compliant
- Halogen- and antimony-free, "green" device
