VBsemi ElecDatasheet (PDF)

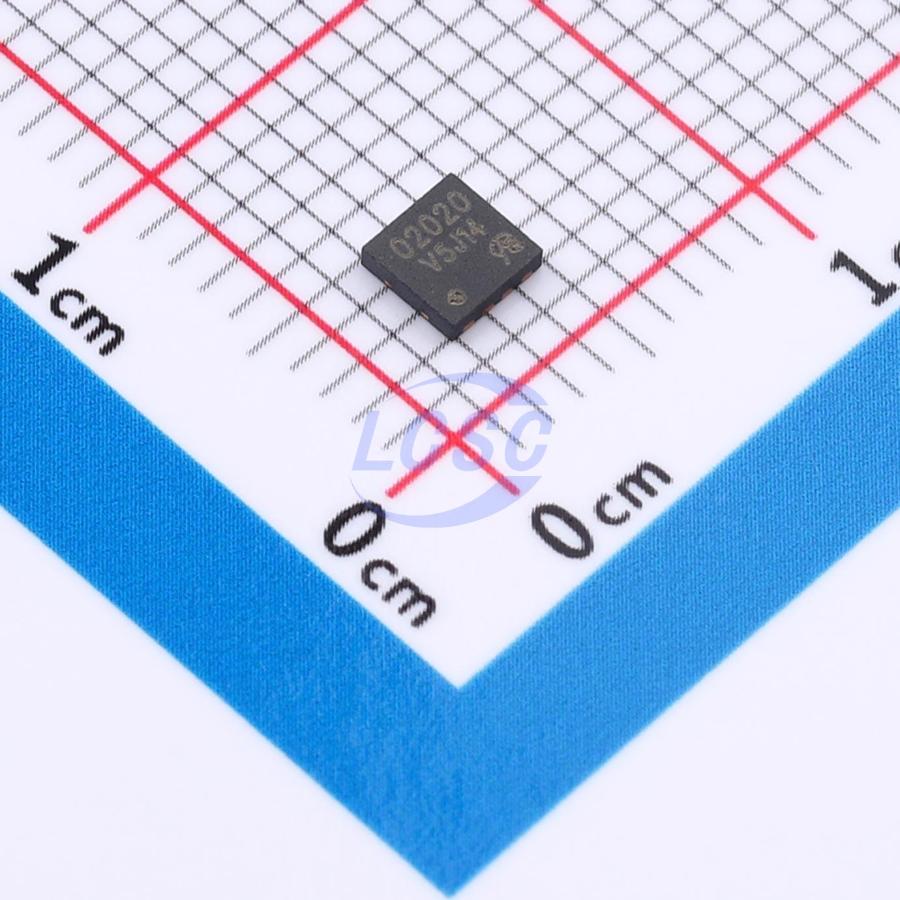

PXP020-20QXJ-VB
40W 20V 15A 16mΩ@4.5V 1 P-Channel P-Channel DFN-8(3x3) Single FETs, MOSFETs
DFN-8(3x3)RoHSActive
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- PXP020-20QXJ-VB
- Store part #
- C52148749
- Package / case
- DFN-8(3x3)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C52148749
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹102.32 | ₹102.32 |
| 10+ | ₹84.47 | ₹844.70 |
| 30+ | ₹75.33 | ₹2,259.90 |
| 100+ | ₹66.40 | ₹6,640.00 |
| 500+ | ₹54.86 | ₹27,430.00 |
| 1,000+ | ₹52.03 | ₹52,030.00 |
1 × ₹102.32
₹102.32
excl. GST
₹120.74 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
PXP020-20QXJ-VB
₹102.32 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 180pF
- Ciss-Input Capacitance
- 1.5nF
- Pd - Power Dissipation
- 40W
- Drain to Source Voltage
- 20V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 15A
- Reverse Transfer Capacitance (Crss)
- 145pF
- RDS(on)
- 16mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 16nC
- Vgs
- ±8V
- Gate Threshold Voltage (Vgs(th))
- 600mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.29 g
Overview
Applications
- Load Switch - Battery Switch
Key features
- Halogen-free per IEC 61249-2-21
- Trench power MOSFET
- 100% gate resistance (Rg) tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI7617DN-VB#C19188122VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 5 | ₹99.70 · 5 in stock | View |
 | SSPS7333P-VB#C20755310VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 1 | ₹89.04 · 1 in stock | View |
 | SI7153DN-T1-GE3-VB#C22395994VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 10 | ₹85.92 · 10 in stock | View |
 | AON7401-VB#C45662501VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 10 | ₹116.25 · 10 in stock | View |
 | SI7121ADN-T1-GE3-VB#C22395993VBsemi Elec · DFN3x3-8 | VBsemi Elec | DFN3x3-8 | 10 | ₹107.14 · 10 in stock | View |
