NexperiaDatasheet (PDF)

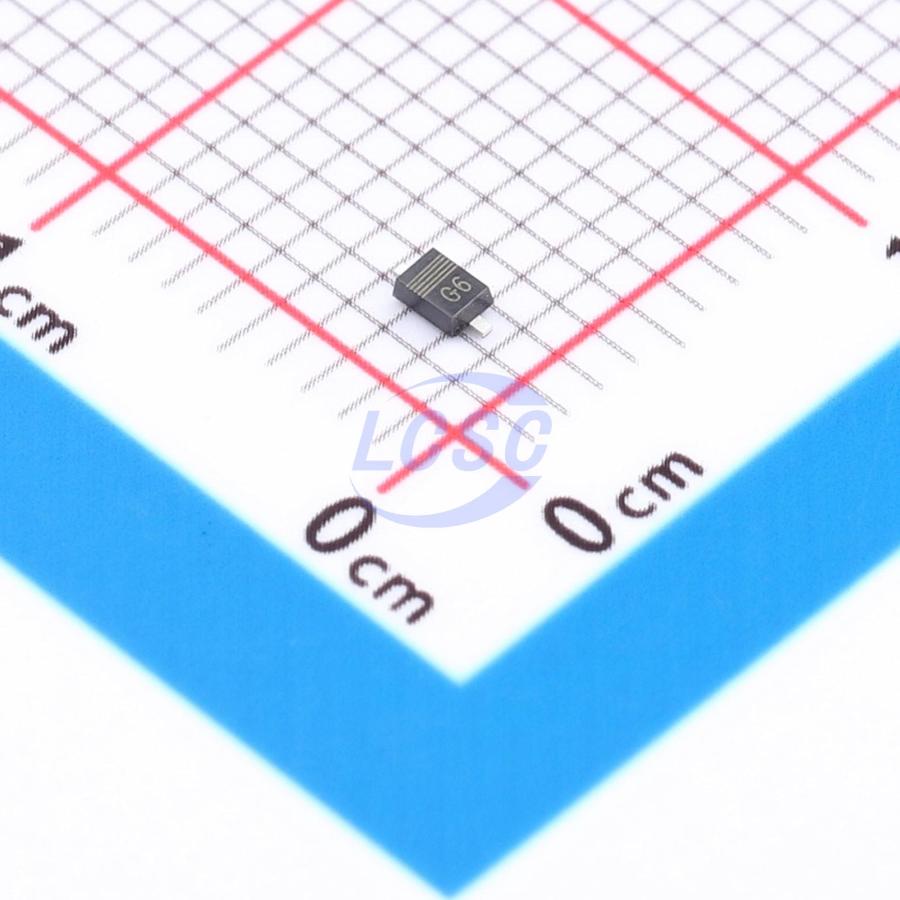

PZU3.3B,115
1 Independent 3.1V~3.5V 3.3V SOD-323F Single Zener Diodes RoHS
SOD-323FROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PZU3.3B,115
- Store part #
- C553692
- Package / case
- SOD-323F
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,950 in stock
#C553692
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.10 | ₹71.00 |
| 100+ | ₹5.58 | ₹558.00 |
| 300+ | ₹4.82 | ₹1,446.00 |
| 3,000+ | ₹4.25 | ₹12,750.00 |
| 6,000+ | ₹3.78 | ₹22,680.00 |
| 9,000+ | ₹3.56 | ₹32,040.00 |
10 × ₹7.10
₹71.00
excl. GST
₹83.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PZU3.3B,115
₹71.00 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Pd - Power Dissipation
- 310mW
- Reverse Leakage Current (Ir)
- 5uA@1V
- Impedance(Zzt)
- 95Ω
- Zener Voltage(Range)
- 3.1V~3.5V
- Zener Voltage(Nom)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.026 g
Overview
General- purpose Zener diodes in a SOD323F (SC- 90) very small and flat lead Surface Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Total power dissipation: 550 mW
- Tolerance series: B: approximately 5%; B1, B2, B3: sequential, approximately 2%
- Small plastic package suitable for surface mounted design
- Wide working voltage range: nominal 2.4 V to 36 V
- Very low leakage current for a given reverse voltage for types PZU5.1B, PZU10B
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZT52C3V3SQ#C20600081YANGJIE · SOD-323(SC-90) | YANGJIE | SOD-323(SC-90) | 2,220 | ₹4.51 · 2,220 in stock | View |
 | MM3Z3V3#C52145163YTL · SOD-323 | YTL | SOD-323 | 2,650 | ₹1.87 · 2,650 in stock | View |
 | MM3Z3V3T1G#C75073onsemi · SOD-323 | onsemi | SOD-323 | 5,480 | ₹3.94 · 5,480 in stock | View |
 | SZMM3Z3V3T1G#C894530onsemi · SOD-323 | onsemi | SOD-323 | 3,950 | ₹16.51 · 3,950 in stock | View |
 | PZU3.3B2A,115#C553696Nexperia · SOD-323 | Nexperia | SOD-323 | 95 | ₹23.56 · 95 in stock | View |
