NexperiaDatasheet (PDF)

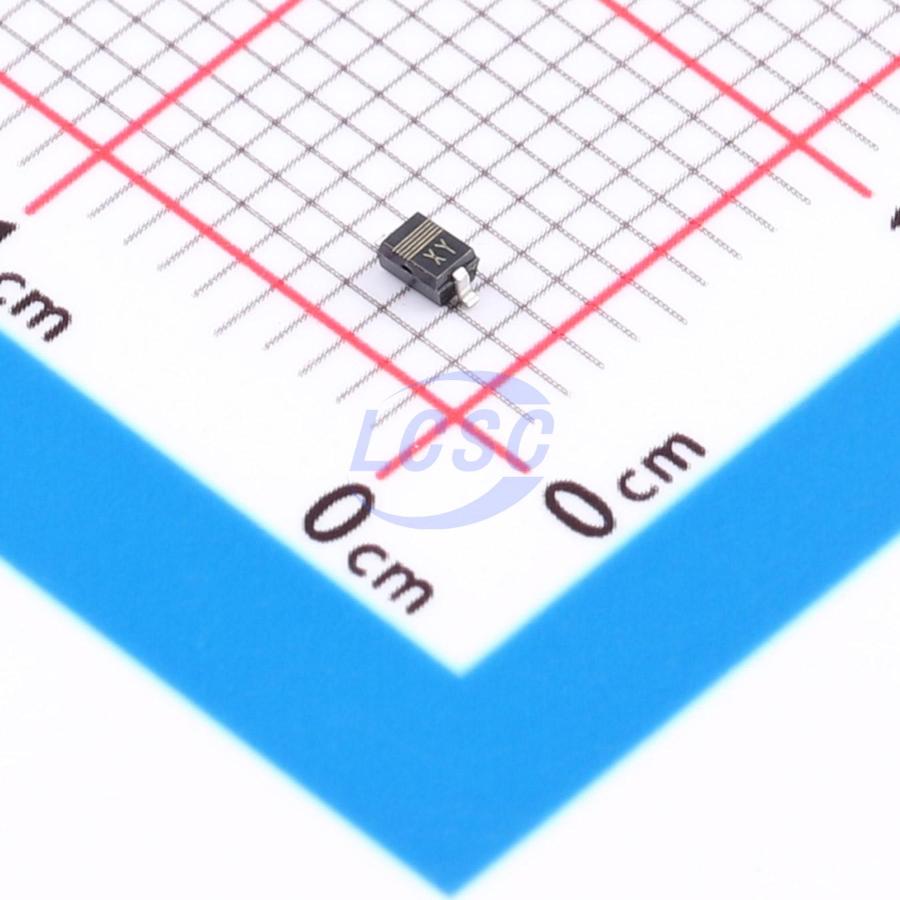

PZU3.3B2A,115
1 Independent 3.25V~3.5V 3.3V SOD-323 Single Zener Diodes RoHS
SOD-323ROHS3 CompliantActive
- Manufacturer
- Nexperia
- Manufacturer part #
- PZU3.3B2A,115
- Store part #
- C553696
- Package / case
- SOD-323
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
95 in stock
#C553696
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.56 | ₹117.80 |
| 50+ | ₹23.03 | ₹1,151.50 |
| 150+ | ₹22.69 | ₹3,403.50 |
| 500+ | ₹22.33 | ₹11,165.00 |
5 × ₹23.56
₹117.80
excl. GST
₹139.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
PZU3.3B2A,115
₹117.80 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±2%
- Pd - Power Dissipation
- 320mW
- Reverse Leakage Current (Ir)
- 5uA@1V
- Impedance(Zzt)
- 95Ω
- Zener Voltage(Range)
- 3.25V~3.5V
- Zener Voltage(Nom)
- 3.3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.066 g
Overview
General- purpose Zener diodes in a SOD323 (SC- 76) very small Surface- Mounted Device (SMD) plastic package.
Applications
- General regulation functions
Key features
- Non-repetitive peak reverse power dissipation: PZSM ≤ 40 W
- Total power dissipation: Ptot ≤ 320 mW
- Tolerance series:
- B: approximately ± 5%
- B1, B2, B3: approximately ± 2%
- Wide working voltage range: nominal 2.4 V to 36 V (E24 range)
- Low reverse current IR range
- Small plastic package suitable for surface-mounted design
- PZU5.1BA - 10BA: Very low dynamic impedances at low currents, very low leakage current, hard breakdown knee
- PZU-types at 10 V: Intentional minor rise of leakage current for optimized fast switching and noise reduction [Ref. AN90031]
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PZU3.3B2A-QX#C6629614Nexperia · SOD-323 | Nexperia | SOD-323 | 200 | ₹21.94 · 200 in stock | View |
 | BZX384-B3V3-QX#C7508090Nexperia · SOD-323 | Nexperia | SOD-323 | 895 | ₹23.44 · 895 in stock | View |
 | PZU3.3B,115#C553692Nexperia · SOD-323F | Nexperia | SOD-323F | 1,950 | ₹7.10 · 1,950 in stock | View |
| BZT52B3V3JS-TP#C3731188MCC · SOD-323 | MCC | SOD-323 | 3,000 | ₹4.30 · 3,000 in stock | View | |
 | BZT52B3V3S#C545387LGE · SOD-323 | LGE | SOD-323 | 11,590 | ₹2.82 · 11,590 in stock | View |
