VBsemi ElecDatasheet (PDF)

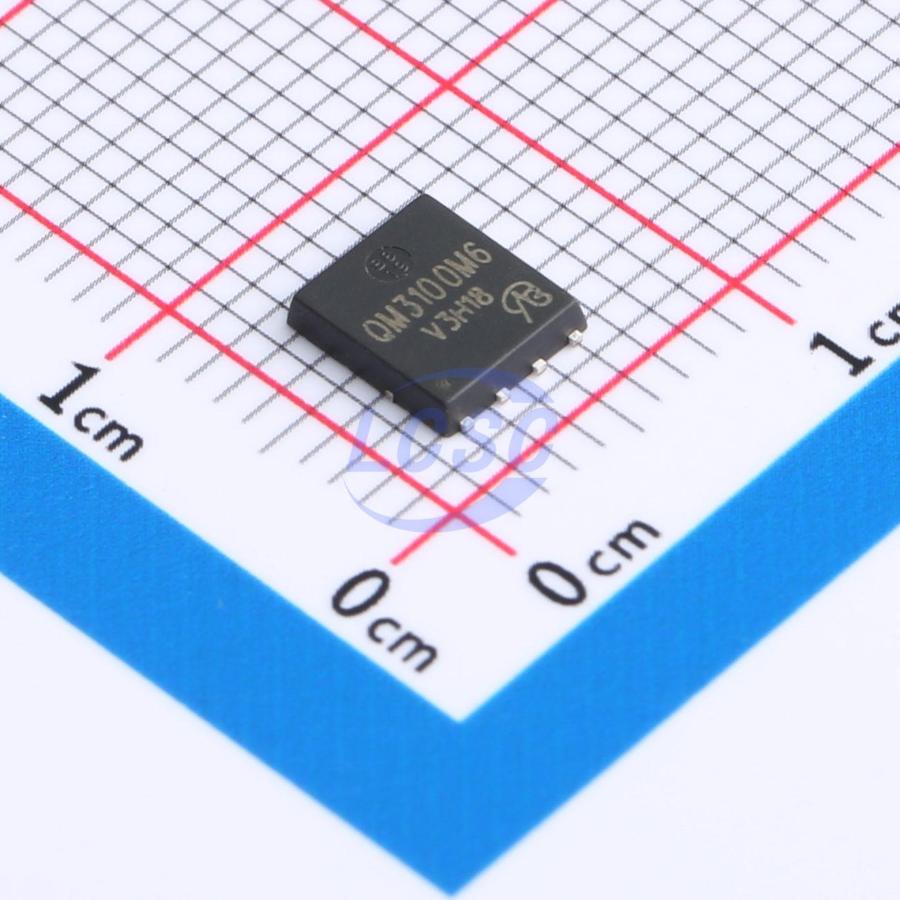

QM3100M6-VB
N-Channel 30V 160A Surface Mount DFN5x6-8
DFN5x6-8ROHS CompliantActive
MOSFET N-CH 30V 160A DFN5x6-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- QM3100M6-VB
- Store part #
- C7569044
- Package / case
- DFN5x6-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C7569044
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹136.03 | ₹136.03 |
| 10+ | ₹111.26 | ₹1,112.60 |
| 30+ | ₹98.66 | ₹2,959.80 |
| 100+ | ₹86.48 | ₹8,648.00 |
| 500+ | ₹70.62 | ₹35,310.00 |
| 1,000+ | ₹66.93 | ₹66,930.00 |
1 × ₹136.03
₹136.03
excl. GST
₹160.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
QM3100M6-VB
₹136.03 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 1.725nF
- Current - Continuous Drain(Id)
- 160A
- Ciss-Input Capacitance
- 9.9nF
- Reverse Transfer Capacitance (Crss)
- 970pF
- Number
- 1 N-channel
- Gate Charge(Qg)
- 83nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.26 g
Overview
Applications
- OR gate applications
- Servers
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
