VBsemi ElecDatasheet (PDF)

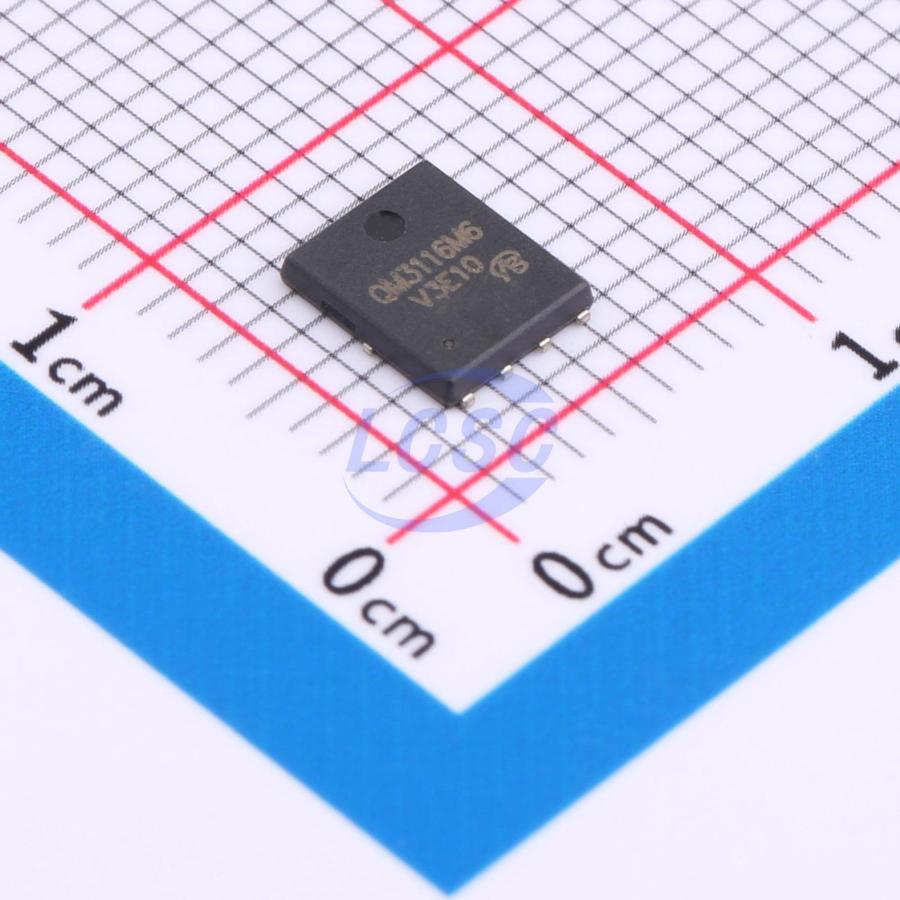

QM3116M6-VB
N-Channel 30V Surface Mount DFN5x6-8
DFN5x6-8ROHS CompliantActive
MOSFET N-CH 30V DFN5x6-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- QM3116M6-VB
- Store part #
- C7569045
- Package / case
- DFN5x6-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8 in stock
#C7569045
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹144.30 | ₹144.30 |
| 10+ | ₹117.31 | ₹1,173.10 |
| 30+ | ₹103.71 | ₹3,111.30 |
| 100+ | ₹90.32 | ₹9,032.00 |
| 500+ | ₹82.25 | ₹41,125.00 |
| 1,000+ | ₹78.22 | ₹78,220.00 |
1 × ₹144.30
₹144.30
excl. GST
₹170.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
QM3116M6-VB
₹144.30 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 1.725nF
- Current - Continuous Drain(Id)
- 160A
- Ciss-Input Capacitance
- 9.9nF
- Reverse Transfer Capacitance (Crss)
- 970pF
- RDS(on)
- 1.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 83nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.255 g
Overview
Applications
- OR gate
- Server
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MDU1511RH-VB#C7568950VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 4 | ₹150.44 · 4 in stock | View |
 | BSC022N03S G-VB#C7569125VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 50 | ₹134.54 · 50 in stock | View |
 | BSC016N04LS G-VB#C19711229VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 5 | ₹136.96 · 5 in stock | View |
 | IRFH5301TRPBF-VB#C20417498VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 10 | ₹144.30 · 10 in stock | View |
 | CSD16321Q5-VB#C20755423VBsemi Elec · DFN5x6-8 | VBsemi Elec | DFN5x6-8 | 8 | ₹142.63 · 8 in stock | View |
