ROHMDatasheet (PDF)

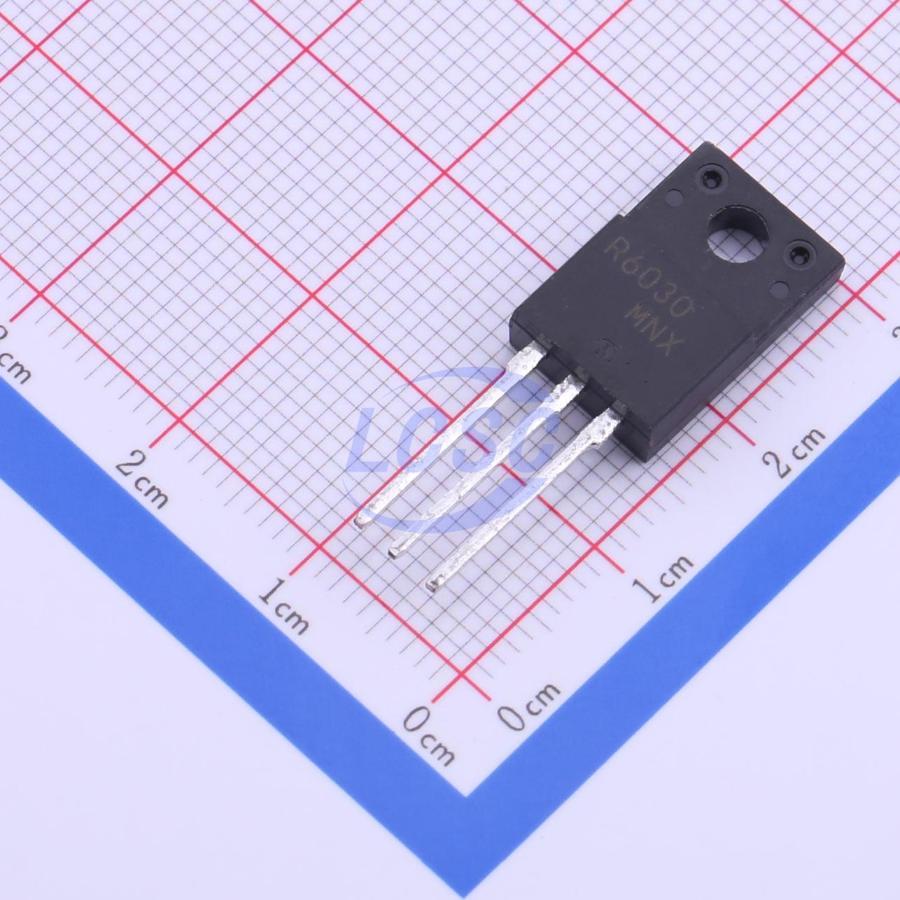

R6030MNXC7
N-Channel 600V 30A 90W Through Hole TO-220FM
TO-220FMROHS CompliantActive
MOSFET N-CH 600V 30A TO-220FM
- Manufacturer
- ROHM
- Manufacturer part #
- R6030MNXC7
- Store part #
- C371552
- Package / case
- TO-220FM
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
418 in stock
#C371552
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹342.99 | ₹342.99 |
| 10+ | ₹326.15 | ₹3,261.50 |
| 50+ | ₹283.16 | ₹14,158.00 |
| 100+ | ₹273.23 | ₹27,323.00 |
| 500+ | ₹268.48 | ₹1,34,240.00 |
| 1,000+ | ₹266.32 | ₹2,66,320.00 |
1 × ₹342.99
₹342.99
excl. GST
₹404.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
R6030MNXC7
₹342.99 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 2.26nF
- Ciss-Input Capacitance
- 2.18nF
- Pd - Power Dissipation
- 90W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 30A
- Reverse Transfer Capacitance (Crss)
- 30pF
- RDS(on)
- 150mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 43nC@10V
- Vgs
- ±30V
- Gate Threshold Voltage (Vgs(th))
- 5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.66 g
Overview
Applications
- Switching Power Supply
Key features
- Fast reverse recovery time (trr)
- Low on-resistance
- Fast switching speed
- Gate-source voltage (VGSS) guaranteed to be ±30V
- Drive circuits can be simple
- Pb-free plating ; RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | OSPF30N65#C48677866OSEN · TO-220F | OSEN | TO-220F | 1,963 | ₹101.26 · 1,963 in stock | View |
| CMF65R090DT#C53896384Cmos · TO-220F | Cmos | TO-220F | 96 | ₹223.60 · 96 in stock | View | |
 | CMF65R080SD#C49208278Cmos · TO-220F | Cmos | TO-220F | 50 | ₹249.84 · 50 in stock | View |
 | APC65R100FMF#C46594658ALLPOWER · TO-220F | ALLPOWER | TO-220F | 735 | ₹294.91 · 735 in stock | View |
 | RSF65T110F#C51904666REASUNOS · TO-220F | REASUNOS | TO-220F | 409 | ₹96.24 · 409 in stock | View |
