RENESAS

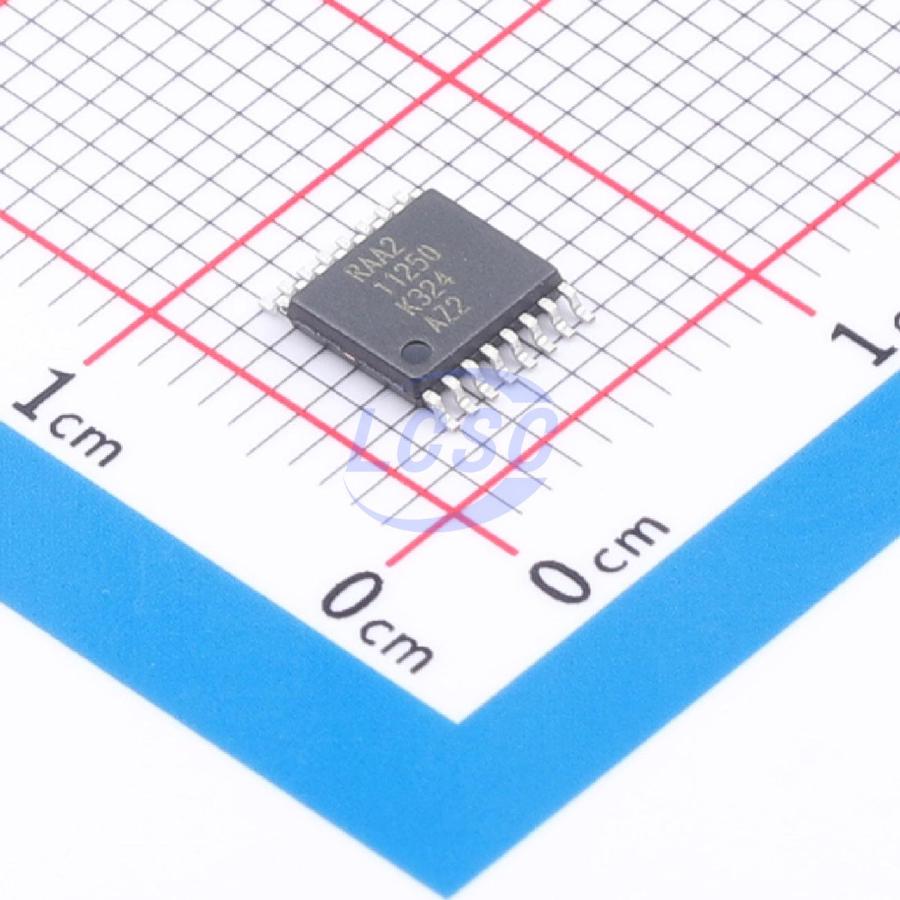

RAA211250GSP#HA0

Step-down type 200kHz~800kHz Adjustable 800mV~27V 5A HTSSOP-16 Voltage Regulators - DC DC Switching Regulators RoHS

HTSSOP-16ROHS3 CompliantActive

4.5V to 30V, 5A, DC/DC Synchronous Step-Down Regulator w/ Internal Compensation and Adjustable Frequency

Manufacturer: RENESAS
Manufacturer part #: RAA211250GSP#HA0
Store part #: C5333761
Package / case: HTSSOP-16
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C5333761

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹408.70	₹408.70
10+	₹350.16	₹3,501.60
30+	₹315.26	₹9,457.80
100+	₹279.92	₹27,992.00
500+	₹263.87	₹1,31,935.00
1,000+	₹256.50	₹2,56,500.00

Quantity (min 1)

1 × ₹408.70

₹408.70

excl. GST

₹482.27 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

RAA211250GSP#HA0

₹408.70 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Function: Step-down type
Number of Outputs: 1
Frequency - Switching: 200kHz~800kHz
Features: Adjustable soft-start;Cycle-by-cycle current limiting;Hiccup current limiting;Light load efficient mode;Built-in LDO regulator;Operating status indication;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~30V
Switch tube (built-in/external): Built-in
Output Voltage: 800mV~27V
Output Current: 5A
Quiescent Current: 90uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: ECL99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.03 g

Overview

The RAA211250 is a DC/DC synchronous step-down (Buck) regulator that supports a 4.5V to 30V input voltage range and adjustable output voltage. It can deliver up to continuous 5A of continuous output current with premium load and line regulation performance. The RAA211250 uses peak-current mode control architecture. Its PWM switching frequency is programmable to provide the best trade-off between transient response and efficiency. It also supports PFM operation and DEM to maximize light load efficiency, in addition to an external bias LDO input to further reduce power dissipation across the load range. The regulator also has an internal loop compensation circuit to reduce the external component count and BoM cost. The RAA211250 provides useful functions such as internal or programmable soft-start and power good indicator. For safe operation, the RAA211250 also offers protection features such as cycle-by-cycle peak and valley current limit, input voltage UVLO, output voltage undervoltage (short-circuit) protection, and thermal shutdown.

Applications

Industrial power systems
Distributed power supplies and general-purpose point-of-load
Telecommunication base station power supplies
High-voltage single-board systems

Key features

Wide input voltage range: 4.5V to 30V
Adjustable output voltage: 0.8V to 90% of VIN (limited by minimum off time)
Up to 5A of continuous output current
Default 400kHz switching frequency and programmable switching frequency range from 200kHz to 800kHz ±1%
Load regulation accuracy from -40°C to 125°C, ±0.5% Load regulation accuracy at 25°C
95μA typical quiescent current
Internal compensation
Internal 0.5ms soft-start in QFN
External programmable soft-start (HTSSOP)
PFM operation and DEM at light load
Integrated external bias LDO
Power-good indicator
Integrated MOSFET rDS(ON) (typical): 70mΩ/25mΩ (QFN); 115mΩ/40mΩ (TSSOP)
Cycle-by-cycle peak and valley current limit
Input voltage UVLO and output voltage undervoltage (short-circuit) protection
Thermal Shutdown
Available in 20 Ld QFN 4mm×3.5mm and 16 Ld HTSSOP packages
