RENESAS

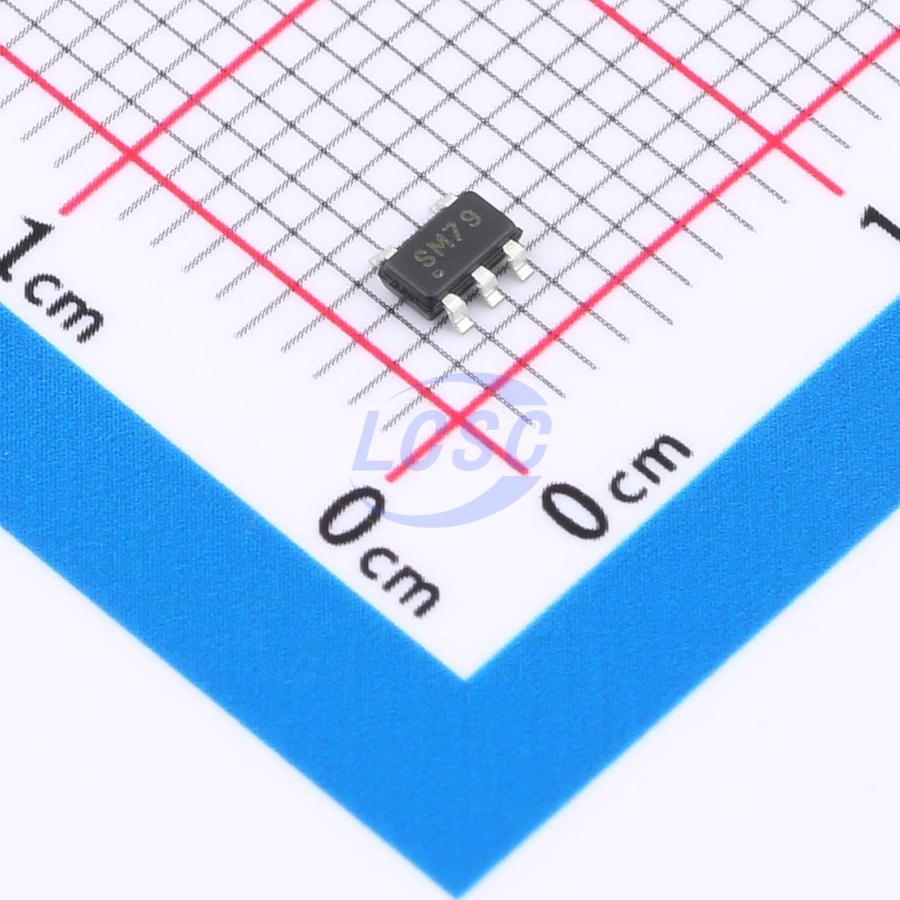

RAA2118034GP3#JA0

Step-down type Fixed 3.3V 300mA TSOT-23 Voltage Regulators - DC DC Switching Regulators RoHS

TSOT-23ROHS3 CompliantActive

80V, 300mA, ultra-low quiescent current DC/DC step-down regulator

Manufacturer: RENESAS
Manufacturer part #: RAA2118034GP3#JA0
Store part #: C28529576
Package / case: TSOT-23
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9 in stock

#C28529576

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹194.45	₹194.45
10+	₹161.91	₹1,619.10
30+	₹144.11	₹4,323.30
100+	₹123.93	₹12,393.00
500+	₹114.81	₹57,405.00
1,000+	₹110.91	₹1,10,910.00

Quantity (min 1)

1 × ₹194.45

₹194.45

excl. GST

₹229.45 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

RAA2118034GP3#JA0

₹194.45 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Function: Step-down type
Number of Outputs: 1
Features: Overcurrent Protection
Topology: Buck
Output Type: Fixed
Operating Voltage: 7V~80V
Switch tube (built-in/external): Built-in
Output Voltage: 3.3V
Output Current: 300mA
Quiescent Current: 5.5uA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.02 g

Overview

The RAA211803 and RAA211805 are easy-to-use, ultra-low quiescent current (IQ) buck regulators with a wide input voltage range of 7V to 80V and up to 300mA output current. RAA211803 has a fixed output voltage of 3.3V, and the RAA211805 output voltage is 5V. The devices offer comprehensive protections, including VIN UVLO, VOUT OVP, overcurrent, and over-temperature protections. The devices are offered in a TSOT23-5 package.

Applications

General purpose or LDO replacement
Industrial power supplies
Embedded systems and I/O supplies
E-Bikes, Power Tools
Home/Industrial Automation

Key features

7V to 80V input supply range
Up to 300mA output current
IQ = 5.5μA at 80V, at no load conditions, switching
IQ = 4.5μA at 80V at no load and no switching conditions
RAA211803 is fixed 3.3V VOUT, RAA211805 is fixed 5V VOUT
Minimum on-time of 75ns
Variable frequency operation, frequency programmed by external inductor (10μH to 33μH)
Pre-bias, monotonic, and smooth start-up
Protections: Overcurrent (OC) Limit, input Undervoltage Lockout (UVLO), Over-Temperature Protection (OTP), output Overvoltage Protection (OVP)
Accurate EN threshold
Package: TSOT23-5 (2.9mm × 1.63mm)
