HXY MOSFETDatasheet (PDF)

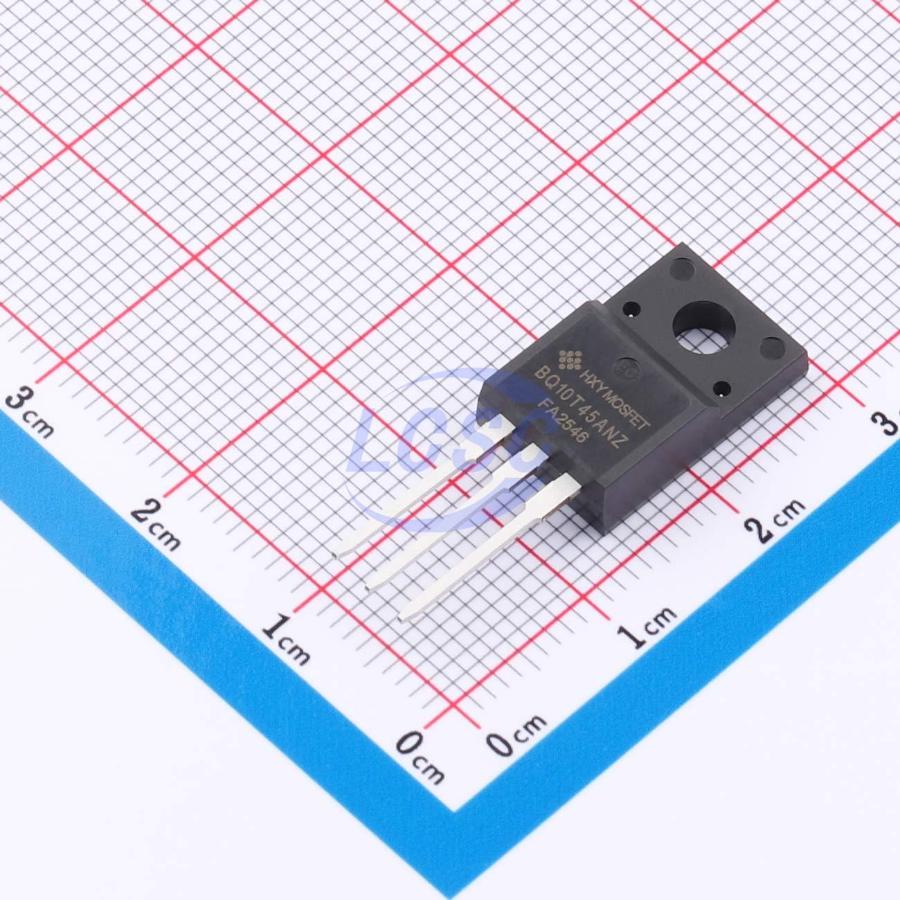

RBQ10T45ANZC9-HXY
45V 1 Pair Common Cathode 650mV@15A 10A TO-220F Single Diodes
TO-220FRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- RBQ10T45ANZC9-HXY
- Store part #
- C53262808
- Package / case
- TO-220F
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
47 in stock
#C53262808
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹124.14 | ₹124.14 |
| 10+ | ₹101.80 | ₹1,018.00 |
| 50+ | ₹90.85 | ₹4,542.50 |
| 100+ | ₹79.68 | ₹7,968.00 |
| 500+ | ₹73.03 | ₹36,515.00 |
| 1,000+ | ₹69.59 | ₹69,590.00 |
1 × ₹124.14
₹124.14
excl. GST
₹146.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
RBQ10T45ANZC9-HXY
₹124.14 for 1 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 45V
- Diode Configuration
- 1 Pair Common Cathode
- Voltage - Forward(Vf@If)
- 650mV@15A
- Reverse Leakage Current (Ir)
- 100uA@45V
- Non-Repetitive Peak Forward Surge Current
- 150A
- Current - Rectified
- 10A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.673 g
Overview
Applications
- Low-voltage high-frequency inverters
- Freewheeling
- Polarity protection applications
Key features
- Low power consumption, high efficiency
- High surge capability
- Suitable for low-voltage high-frequency inverters, freewheeling, and polarity protection applications
- Metal-silicon junction, majority carrier conduction
- High current capability, low forward voltage drop
- Guard ring for overvoltage protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RB088T-40NZC9-HXY#C53262827HXY MOSFET · TO-220F | HXY MOSFET | TO-220F | 48 | ₹98.37 · 48 in stock | View |
 | RBR10T40ANZC9-HXY#C53262834HXY MOSFET · TO-220F | HXY MOSFET | TO-220F | 48 | ₹144.76 · 48 in stock | View |
 | HMBRF2045CT#C22396415HXY MOSFET · TO-220F | HXY MOSFET | TO-220F | 45 | ₹27.39 · 45 in stock | View |
 | RB218T-40NZC9-HXY#C53262831HXY MOSFET · TO-220F | HXY MOSFET | TO-220F | 47 | ₹146.69 · 47 in stock | View |
 | RBR20T40ANZC9-HXY#C53262835HXY MOSFET · TO-220F | HXY MOSFET | TO-220F | 48 | ₹98.37 · 48 in stock | View |
