TIDatasheet (PDF)

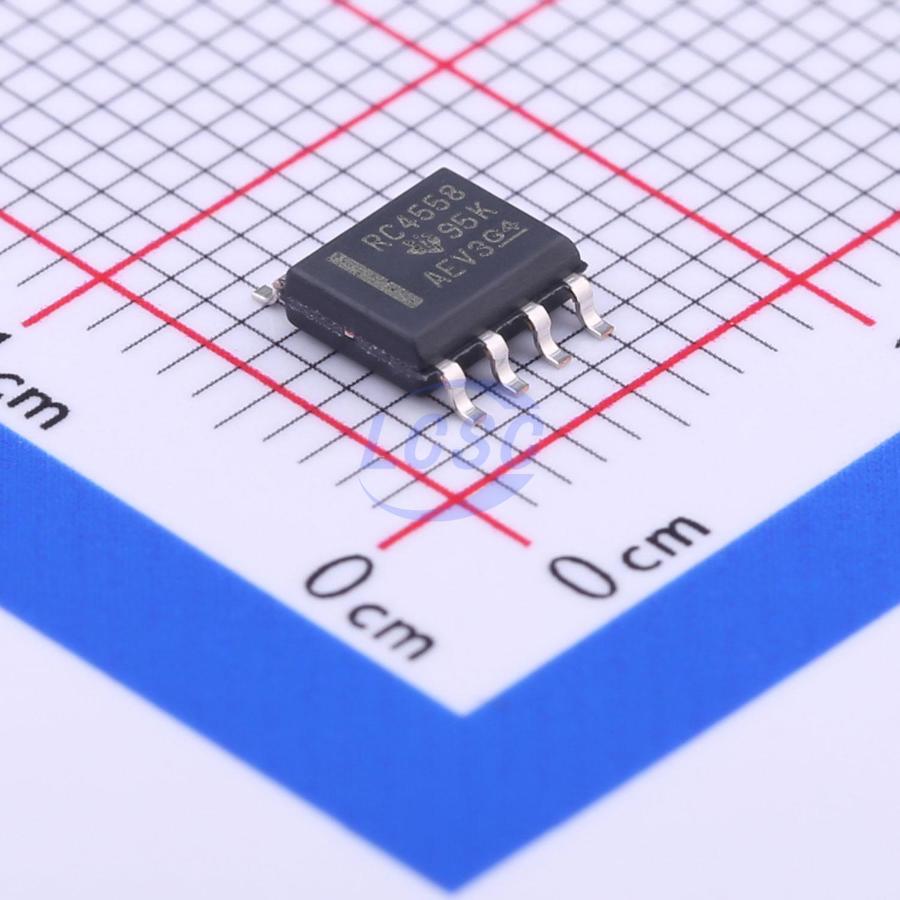

RC4558DR
2 6mV 1.7V/us 90dB 500nA 2.5mA 3MHz SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Dual General-Purpose Operational Amplifier
- Manufacturer
- TI
- Manufacturer part #
- RC4558DR
- Store part #
- C406864
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,380 in stock
#C406864
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.52 | ₹137.60 |
| 50+ | ₹21.66 | ₹1,083.00 |
| 150+ | ₹19.14 | ₹2,871.00 |
| 500+ | ₹16.00 | ₹8,000.00 |
| 2,500+ | ₹13.43 | ₹33,575.00 |
| 5,000+ | ₹12.58 | ₹62,900.00 |
5 × ₹27.52
₹137.60
excl. GST
₹162.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
RC4558DR
₹137.60 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 6mV
- Slew Rate
- 1.7V/us
- Input Offset Current(Ios)
- 200nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 500nA
- Quiescent Current
- 2.5mA
- Gain Bandwidth Product
- 3MHz
- Features
- Built-in compensation
- Input Voltage Noise Density
- 8nV/√Hz@1kHz
- Dual Supply
- 5V~15V;-15V~-5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.171 g
Overview
The RC4558 device is a dual general-purpose operational amplifier, with each half electrically similar to the μA741, except that offset null capability is not provided. The high common-mode input voltage range and the absence of latch-up make this amplifier ideal for voltage-follower applications. The device is shortcircuit protected, and the internal frequency compensation ensures stability without external components.
Applications
- DVD Recorders and Players
- Pro Audio Mixers
Key features
- Continuous Short-Circuit Protection
- Wide Common-Mode and Differential Voltage Ranges
- No Frequency Compensation Required
- Low Power Consumption
- No Latch-Up
- Unity-Gain Bandwidth: 3 MHz Typ
- Gain and Phase Match Between Amplifiers
- Low Noise: 8 nV/√Hz Typ at 1 kHz
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | JRC4558DTR(XBLW)#C22357878XBLW · SOP-8 | XBLW | SOP-8 | 10,210 | ₹4.29 · 10,210 in stock | View |
 | RC4558M/TR#C434477HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,420 | ₹11.47 · 2,420 in stock | View |
 | JRC4558D233#C51026317GREENMICRO · SOP-8 | GREENMICRO | SOP-8 | 1,160 | ₹4.76 · 1,160 in stock | View |
 | XL4558#C556299XINLUDA · SOP-8 | XINLUDA | SOP-8 | 1,660 | ₹11.50 · 1,660 in stock | View |
| RC4558DR-TUDI#C55098822Tudi · SOP-8 | Tudi | SOP-8 | 2,500 | ₹19.24 · 2,500 in stock | View | |
