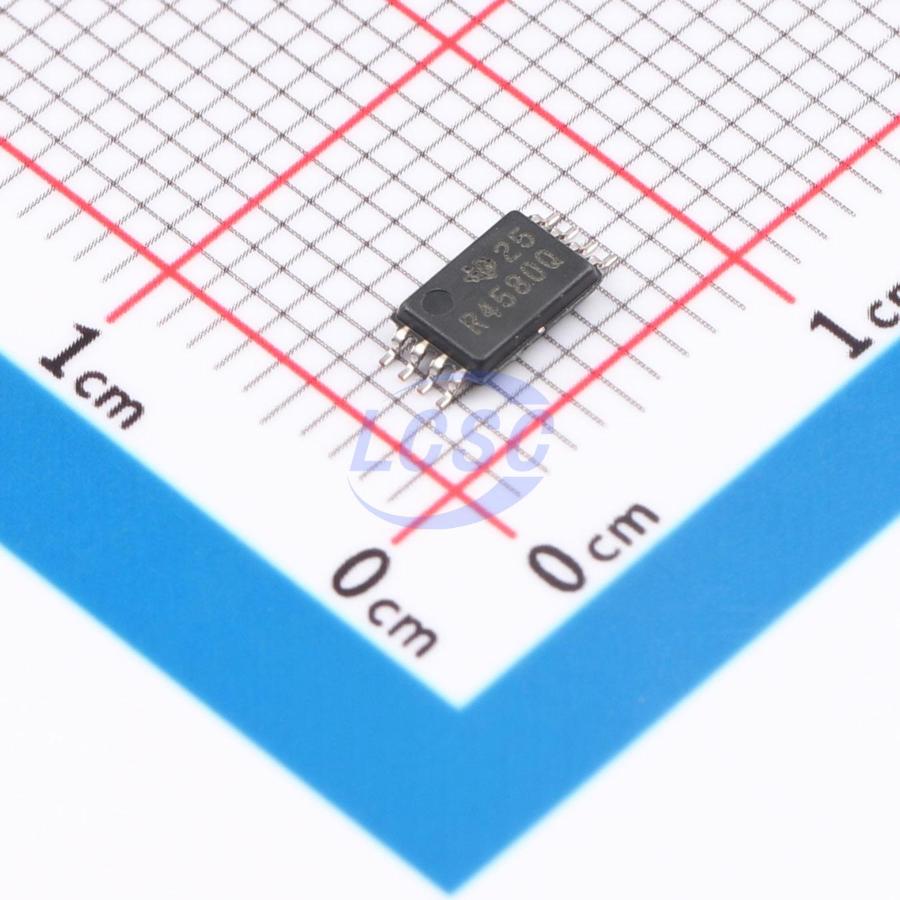

RC4580QPWRQ1

6mA 2-Channel TSSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

TSSOP-8ROHS3 CompliantActive

Dual Audio Operational Amplifier

Manufacturer: TI
Manufacturer part #: RC4580QPWRQ1
Store part #: C2058199
Package / case: TSSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

19 in stock

#C2058199

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹104.31	₹104.31
10+	₹88.44	₹884.40
30+	₹80.41	₹2,412.30
100+	₹72.58	₹7,258.00
500+	₹67.80	₹33,900.00
1,000+	₹65.41	₹65,410.00

Quantity (min 1)

1 × ₹104.31

₹104.31

excl. GST

₹123.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,000 per reel

RC4580QPWRQ1

₹104.31 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Quiescent Current: 6mA
Total Harmonic Distortion + Noise (THD+N): 0.0005%
Speaker Channels: 2-Channel
Operating Temperature: -40℃~+125℃
Voltage - Supply: -16V~-2V;2V~16V
Power Supply Rejection Ratio (PSRR): 80dB

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.074 g

Overview

The RC4580-Q1 device is a dual operational amplifier that is designed optimally for audio applications, such as improving tone control. It offers low noise, high gain bandwidth, low harmonic distortion, and high output current. All of these features make the device ideally suited for audio electronics, such as audio preamplifiers and active filters, as well as industrial measurement equipment. When high output current is required, the RC4580-Q1 device can be used as a headphone amplifier. Due to its wide operating supply voltage, the RC4580-Q1 device can also be used in low-voltage applications.

Applications

Audio preamplifier
Active filter
Headphone amplifier
Industrial measurement equipment

Key features

Qualified for Automotive Applications AEC-Q100 Qualified With the Following Results:
Device Temperature Grade 1: -40°C to 125°C Ambient Operating Temperature Range
Device HBM ESD Classification Level H2
Device CDM ESD Classification Level C3B
Operating Voltage: ±2 V to ±18 V
Low Noise Voltage: 0.8 μVrms (TYP)
Wide GBW: 12 MHz (TYP)
Low THD: 0.0005% (TYP)
Slew Rate: 5 V/μs (TYP)
Suitable for Automotive Applications Such As Audio Preamplifier, Active Filter, Headphone Amplifier, Industrial Measurement Equipment
Drop-In Replacement for NJM4580
Pin and Function Compatible With LM833, NE5532, NJM4558/9, and NJM4560/2/5
