TECH PUBLICDatasheet (PDF)

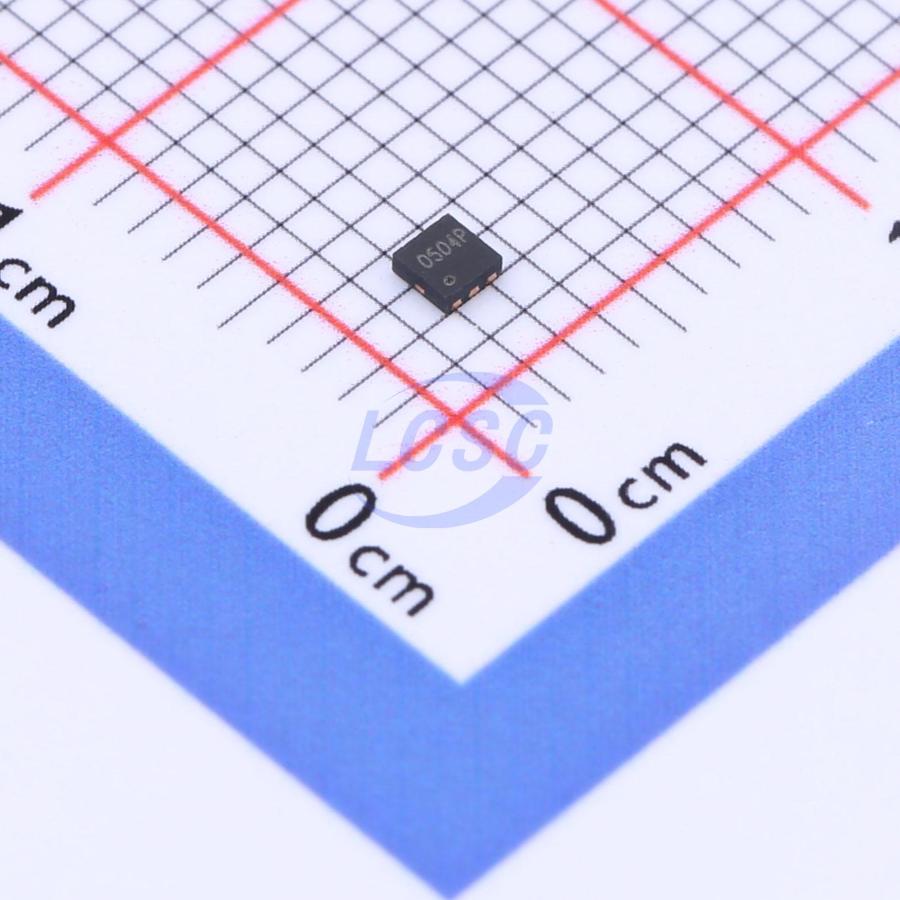

RCLAMP0504P
nan
DFN1616-6RoHSActive
5VWM 21VC DFN1616-6
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- RCLAMP0504P
- Store part #
- C2987145
- Package / case
- DFN1616-6
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,670 in stock
#C2987145
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.92 | ₹69.60 |
| 50+ | ₹11.06 | ₹553.00 |
| 150+ | ₹9.62 | ₹1,443.00 |
| 500+ | ₹8.55 | ₹4,275.00 |
| 3,000+ | ₹6.71 | ₹20,130.00 |
| 6,000+ | ₹6.28 | ₹37,680.00 |
5 × ₹13.92
₹69.60
excl. GST
₹82.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RCLAMP0504P
₹69.60 for 5 + GST
Specifications
- Clamping Voltage
- 21V
- Peak Pulse Current (Ipp)
- 4.5A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 120W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 6V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.026 g
Overview
Applications
- USB 2.O and USB OTG
- Multi Media Card (MMC) Interfaces
- SD Card Interfaces
- MDDI Ports
- SIM Ports
- Key Pads
Key features
- Ultra low capacitance: 0.35pF(IO to I0)
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- Protects one power line and four data lines
- Flow-through package
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- IEC61000-4-5 (Lightning) 4.5A (8/20μs)
- RoHS Compliant
