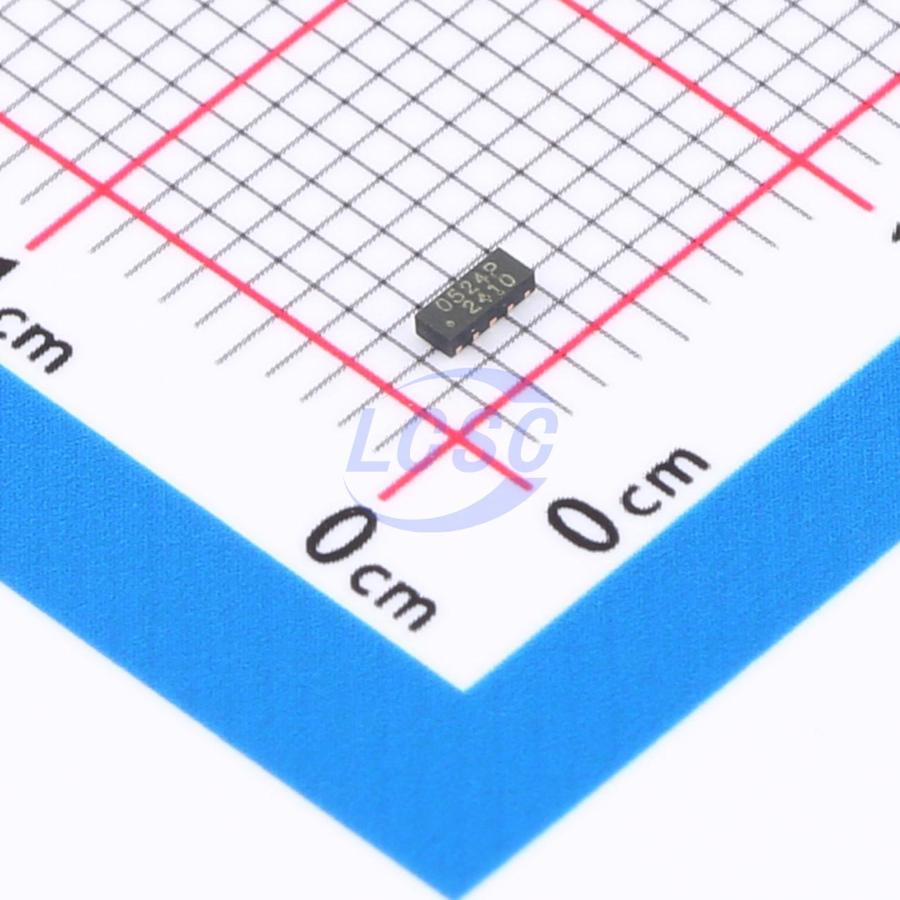

RCLAMP0524PATCT
9VC 16VC Clamp 4A@8/20us Ipp ESD DIODE DFN2510-10
DFN2510-10RoHSActive
ESD DIODE 5VWM 9VC 16VC DFN2510-10
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- RCLAMP0524PATCT
- Store part #
- C2905634
- Package / case
- DFN2510-10
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,040 in stock
#C2905634
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.87 | ₹98.70 |
| 100+ | ₹8.03 | ₹803.00 |
| 300+ | ₹7.12 | ₹2,136.00 |
| 3,000+ | ₹5.69 | ₹17,070.00 |
| 6,000+ | ₹5.13 | ₹30,780.00 |
| 9,000+ | ₹4.87 | ₹43,830.00 |
10 × ₹9.87
₹98.70
excl. GST
₹116.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RCLAMP0524PATCT
₹98.70 for 10 + GST
Specifications
- Clamping Voltage
- 16V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 80W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 7V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.027 g
Overview
Applications
- High Definition Multimedia Interface (HDMI)
- Digital Visual Interface (DVI)
- Unified Display Interface (UDI)
- MDDI Ports
- PCI Express
- Serial ATA
Key features
- Ultra low capacitance: 0.3pF typical (I/O to I/O)
- Ultra low leakage: nA level
- Low operating voltage: 5V
- Low clamping voltage
- Up to 4 data lines and one power line protects
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±20kV
- IEC 61000-4-4 (EFT) 40A (5/50ns)
- IEC 61000-4-5 (Lightning): 4 A(8/20μs)
- ROHS Compliant
- UL Flammability Classification Rating 94V-0
- Moisture Sensitivity: Level 3 per J-STD-020
