TECH PUBLIC

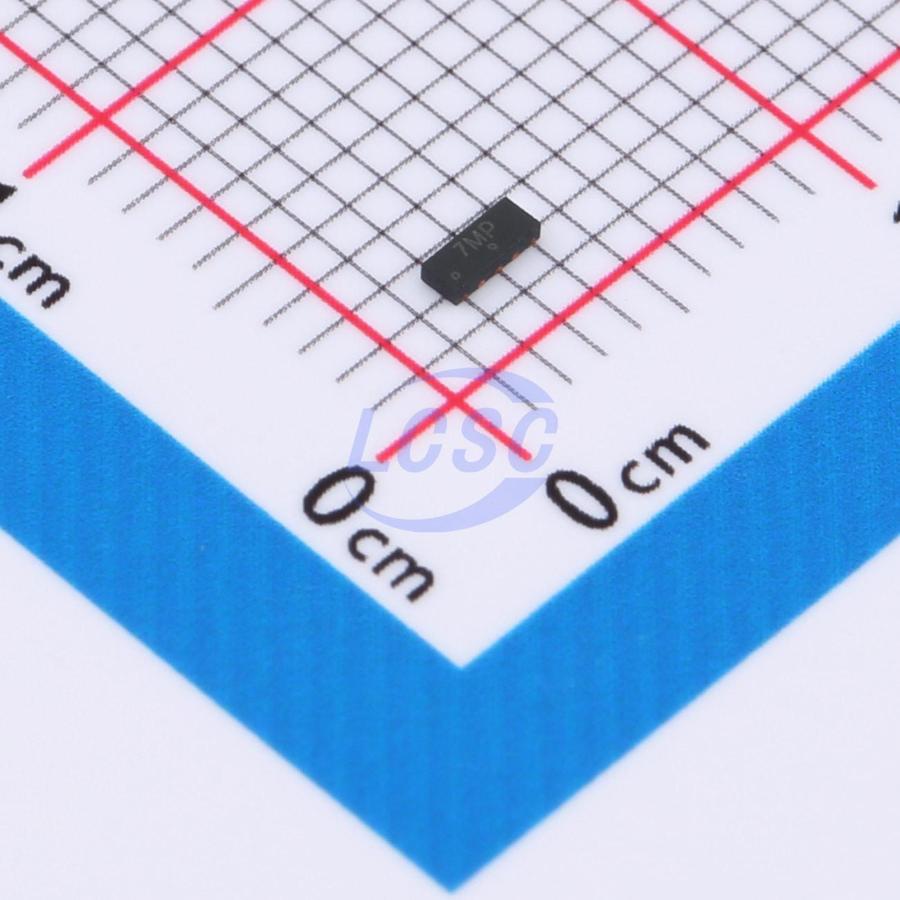

RCLAMP0544P-TP

18VC Clamp 3A@8/20us Ipp DFN2510-10

DFN2510-10RoHSActive

5VWM 18VC DFN2510-10

Manufacturer: TECH PUBLIC
Manufacturer part #: RCLAMP0544P-TP
Store part #: C41348091
Package / case: DFN2510-10
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,155 in stock

#C41348091

Stock & price checked 11 days ago

Quantity	Unit price	Pack price
5+	₹14.63	₹73.15
50+	₹11.50	₹575.00
150+	₹9.94	₹1,491.00
500+	₹8.77	₹4,385.00
3,000+	₹7.83	₹23,490.00
6,000+	₹7.36	₹44,160.00

Quantity (min 5, multiples of 5)

5 × ₹14.63

₹73.15

excl. GST

₹86.32 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

RCLAMP0544P-TP

₹73.15 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 18V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 3A@8/20us
Peak Pulse Power Dissipation (Ppp): 60W@8/20us
Number of Channels: Four channels
Voltage - Breakdown: 7.5V
type: TVS
Polarity: Bidirectional
Reverse Leakage Current (Ir): 200nA
Reverse Stand-Off Voltage (Vrwm): 5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.025 g

Overview

Applications

HDMI 1.4& 2.0, USB 2.0 & 3.0 and MDDI ports
Monitors and flat panel displays
Set-top box and Digital TV
Video graphics cards
Digital Video Interface (DVI)
Notebook Computers

Key features

Ultra low capacitance: 0.2pF typical(IO/ to I/O)
Low operating voltage: 5V
Low clamping voltage
Up to 4 lines protects
Leadless flow-through package
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±20kV Contact discharge: ±15kV
IEC61000-4-5 (Lightning) 3A (8/20μs)
