TECH PUBLICDatasheet (PDF)

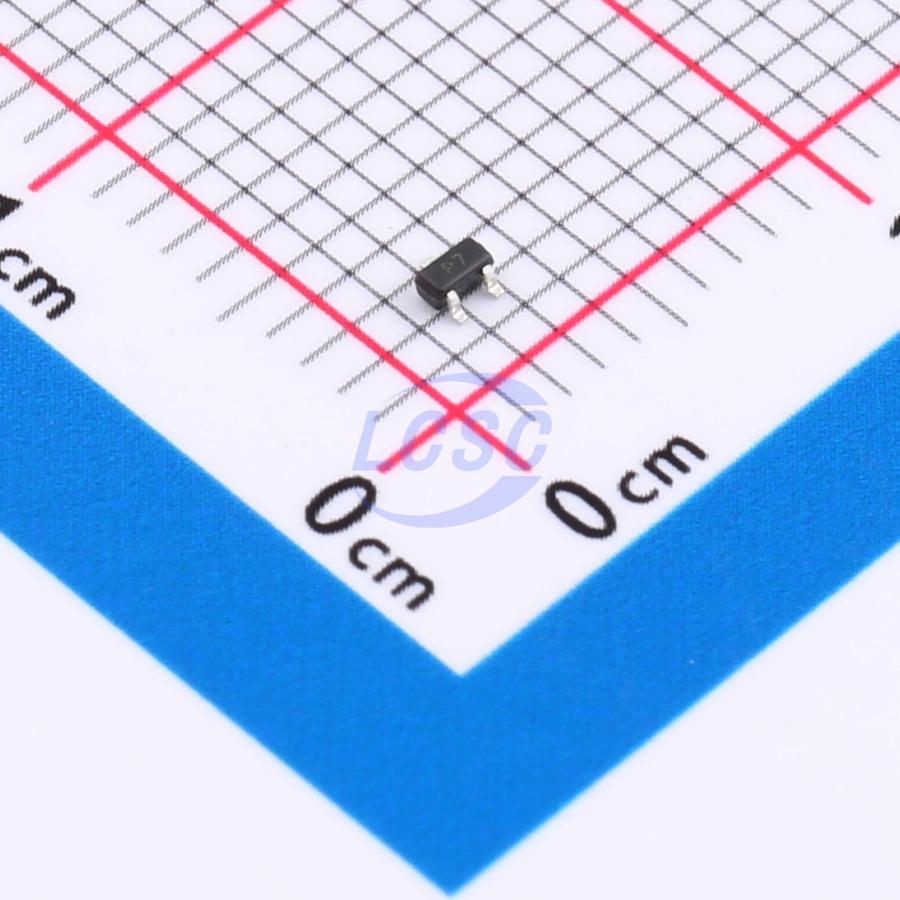

RCLAMP2402B
43VC Clamp ESD DIODE SOT-523
SOT-523RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- RCLAMP2402B
- Store part #
- C19268146
- Package / case
- SOT-523
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,965 in stock
#C19268146
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.57 | ₹92.85 |
| 50+ | ₹14.92 | ₹746.00 |
| 150+ | ₹13.11 | ₹1,966.50 |
| 500+ | ₹11.74 | ₹5,870.00 |
| 3,000+ | ₹10.64 | ₹31,920.00 |
| 6,000+ | ₹10.09 | ₹60,540.00 |
5 × ₹18.57
₹92.85
excl. GST
₹109.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RCLAMP2402B
₹92.85 for 5 + GST
Specifications
- Clamping Voltage
- 43V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 2A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 70W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 26V
- type
- ESD
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 24V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.026 g
Overview
Applications
- Laptop Computers
- Cellular Phones
- Digital Cameras
- Personal Digital Assistants (PDAs)
Key features
- Ultra low capacitance: 0.5pF typical(IO to IO)
- Ultra low leakage: nA level
- Low operating voltage: 24V
- Complies with following standards:
- IEC 61000 - 4 - 2 (ESD) immunity test Air discharge: ±25kV Contact discharge: ±15kV
- IEC61000 - 4 - 5 (Lightning) 2A (8/20μs)
- RoHS Compliant
