TECH PUBLICDatasheet (PDF)

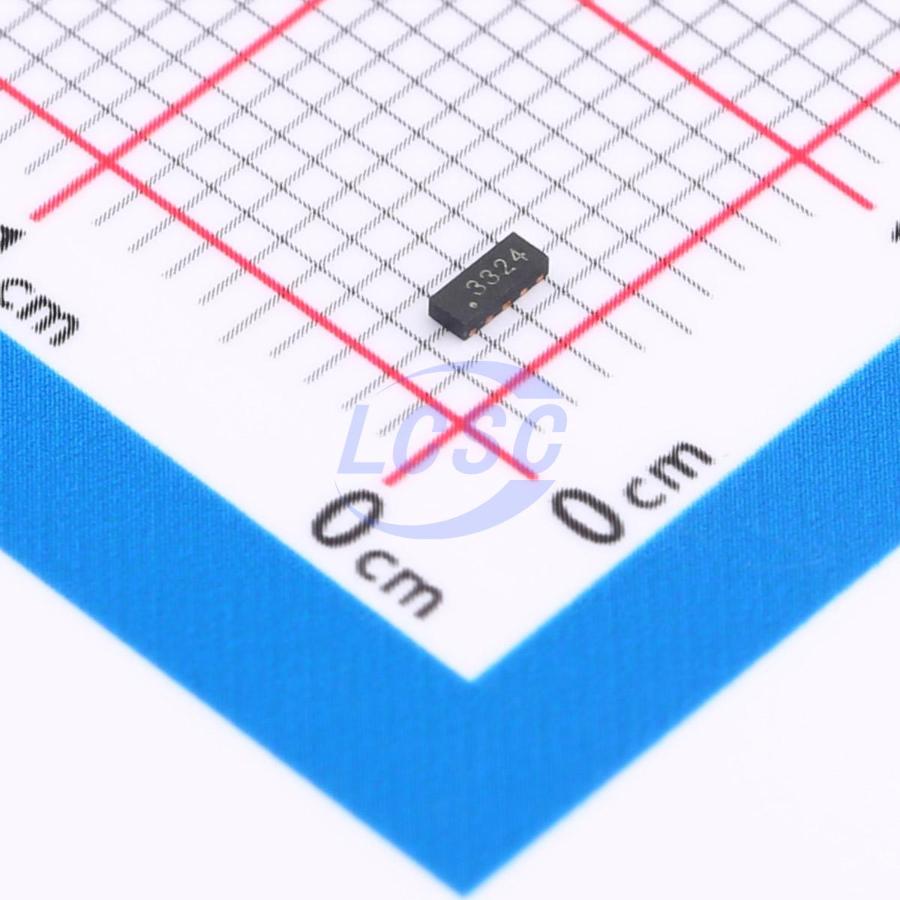

RCLAMP3324P
15VC Clamp ESD DIODE DFN2510-10
DFN2510-10RoHSActive
ESD DIODE 3.3VWM 15VC DFN2510-10
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- RCLAMP3324P
- Store part #
- C7472866
- Package / case
- DFN2510-10
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,775 in stock
#C7472866
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.45 | ₹62.25 |
| 50+ | ₹9.84 | ₹492.00 |
| 150+ | ₹8.53 | ₹1,279.50 |
| 500+ | ₹7.57 | ₹3,785.00 |
| 3,000+ | ₹6.77 | ₹20,310.00 |
| 6,000+ | ₹6.39 | ₹38,340.00 |
5 × ₹12.45
₹62.25
excl. GST
₹73.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RCLAMP3324P
₹62.25 for 5 + GST
Specifications
- Clamping Voltage
- 15V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 4A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 70W@8/20us
- Number of Channels
- Four channels
- Voltage - Breakdown
- 3.6V
- type
- TVS
- Polarity
- Unidirectional
- Reverse Leakage Current (Ir)
- 60nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
Applications
- High Definition Multimedia Interface (HDMI)
- Digital Visual Interface (DVI)
- Unified Display Interface (UDI)
- MDDI Ports
- PCIExpress
- SerialATA
Key features
- Ultra low capacitance: 0.3pF typical (I/O to I/O)
- Ultra low leakage: nA level
- Low operating voltage: 3.3V
- Low clamping voltage
- Up to 4 data lines and one power line protects
- Complies with following standards: - IEC 61000 - 4 - 2(ESD) immunity test Airdischarge: ±20kV Contact discharge: ±15kV - IEC61000 - 4 - 4 (EFT)40A (5/50ns) - IEC61000 - 4 - 5 (Lightning): 4 A(8/20μs)
- ROHS Compliant
