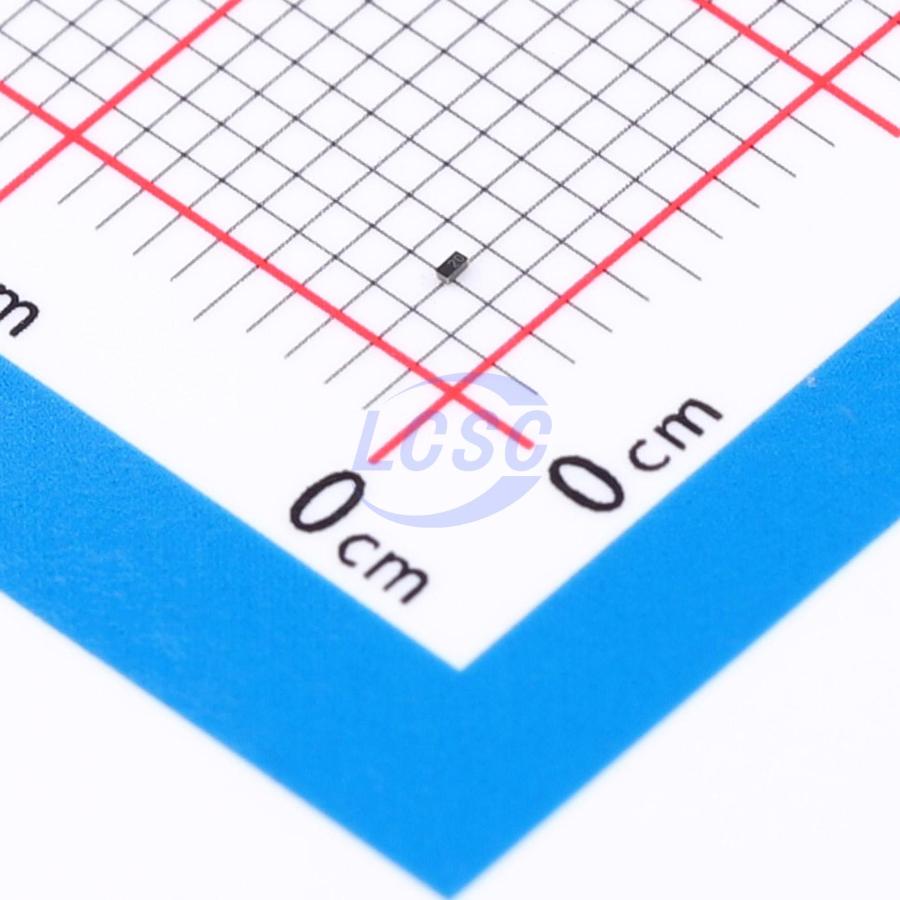

RCLAMP3521ZATFT
5VC Clamp 6A@8/20us Ipp TVS DIODE 0201
- Manufacturer
- SEMTECH
- Manufacturer part #
- RCLAMP3521ZATFT
- Store part #
- C1981000
- Package / case
- 0201
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8 in stock
#C1981000
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹111.85 | ₹111.85 |
| 10+ | ₹90.52 | ₹905.20 |
| 30+ | ₹79.86 | ₹2,395.80 |
| 100+ | ₹69.42 | ₹6,942.00 |
1 × ₹111.85
₹111.85
excl. GST
₹131.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 15,000 per reel
RCLAMP3521ZATFT
₹111.85 for 1 + GST
Specifications
- Clamping Voltage
- 5V
- Operating Temperature
- -40℃~+125℃
- Peak Pulse Current (Ipp)
- 6A@1.2/50us
- Peak Pulse Power Dissipation (Ppp)
- 30W@1.2/50us
- Number of Channels
- 1
- Voltage - Breakdown
- 7.5V
- type
- TVS
- Reverse Leakage Current (Ir)
- 1nA
- Polarity
- Bidirectional
- Reverse Stand-Off Voltage (Vrwm)
- 3.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 15,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.035 g
Overview
RailClamp TVS diodes are designed to provide ESD and EOS protection on high-speed ports. RClamp3521ZA is a 1-line, bidirectional device with a typical capacitance of only 0.45pF and a working voltage of 3.5V. It is manufactured using proprietary snap-back technology which minimizes both ESD peak clamping and TLP clamping voltages. The dynamic resistance is extremely low (0.12 Ohms typical) providing optimum protection of sensitive circuits. RClamp3521ZA is in a 2-pin SLP0603P2X3F package measuring 0.6×0.3×0.25mm. Leads are finished with lead-free NiAu.
Applications
- USB3.0 / USB 3.1
- USB Type-C
- V-By-One
- MHL / MDDI
- LVDS Interfaces
Key features
- ESD protection for high speed lines to:
- IEC 61000 - 4 - 2 (ESD): +/-20kV (Contact)
- IEC 61000 - 4 - 4 (EFT): 4kV, 80A
- IEC 61000 - 4 - 5 (Lightning): 6A (tp = 8/20μs)
- Ultra-small package
- Protects one line
- Low ESD clamping voltage
- Working voltage: 3.5V
- Low capacitance: 0.45 pF Typical
- Low leakage current
- Low dynamic resistance
- Solid-state silicon-avalanche technology
