VBsemi ElecDatasheet (PDF)

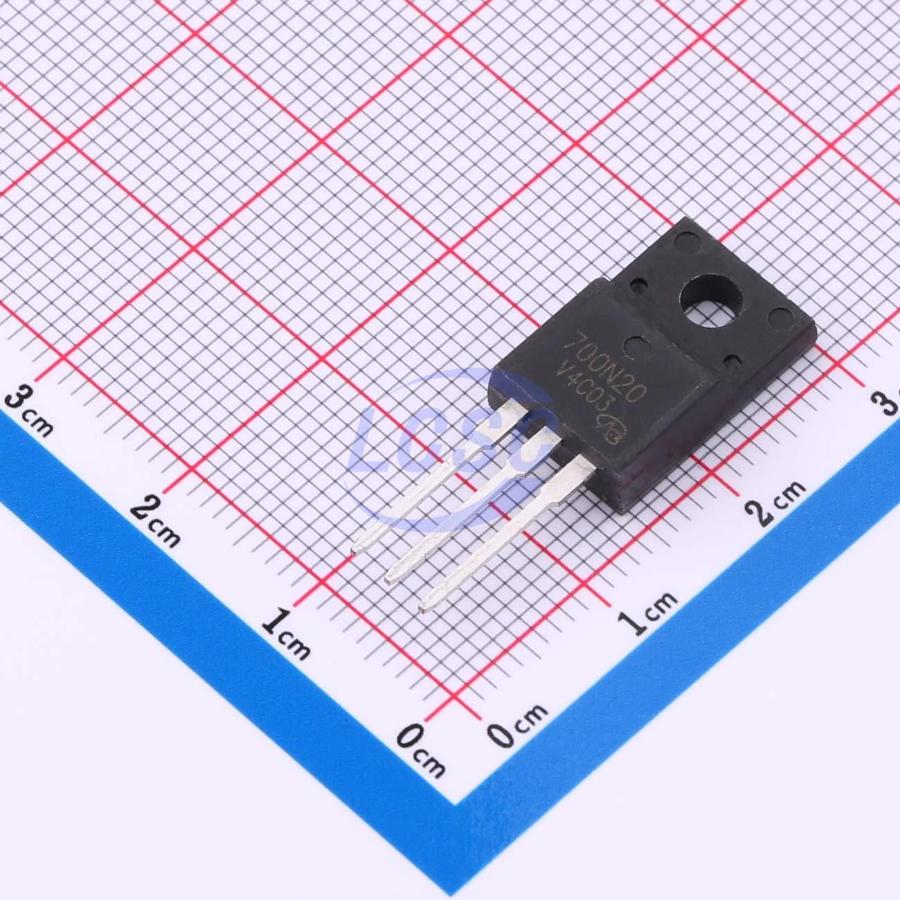

RCX700N20-VB
N-Channel 200V 45A 55W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 200V 45A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- RCX700N20-VB
- Store part #
- C20755577
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C20755577
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹316.13 | ₹316.13 |
| 10+ | ₹269.71 | ₹2,697.10 |
| 50+ | ₹240.52 | ₹12,026.00 |
| 100+ | ₹210.69 | ₹21,069.00 |
| 500+ | ₹197.25 | ₹98,625.00 |
| 1,000+ | ₹191.36 | ₹1,91,360.00 |
1 × ₹316.13
₹316.13
excl. GST
₹373.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
RCX700N20-VB
₹316.13 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 200V
- Output Capacitance(Coss)
- 180pF
- Current - Continuous Drain(Id)
- 45A
- Ciss-Input Capacitance
- 2.8nF
- Pd - Power Dissipation
- 55W
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 38mΩ@15V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 34nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.9 g
Overview
Applications
- Power Supply
- Lighting Systems
Key features
- Trench power MOSFET
- Junction temperature 175 °C
- 100% Rg and UIS tested
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDPF390N15A-VB#C18795069VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 27 | ₹294.42 · 27 in stock | View |
 | RJK2017DPP-M0-VB#C20417620VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹302.48 · 10 in stock | View |
 | 2SK3209-VB#C20417716VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹316.13 · 10 in stock | View |
 | IRFI4227PBF-VB#C20626287VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 6 | ₹415.70 · 6 in stock | View |
 | K3209-VB#C20755533VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 10 | ₹302.48 · 10 in stock | View |
