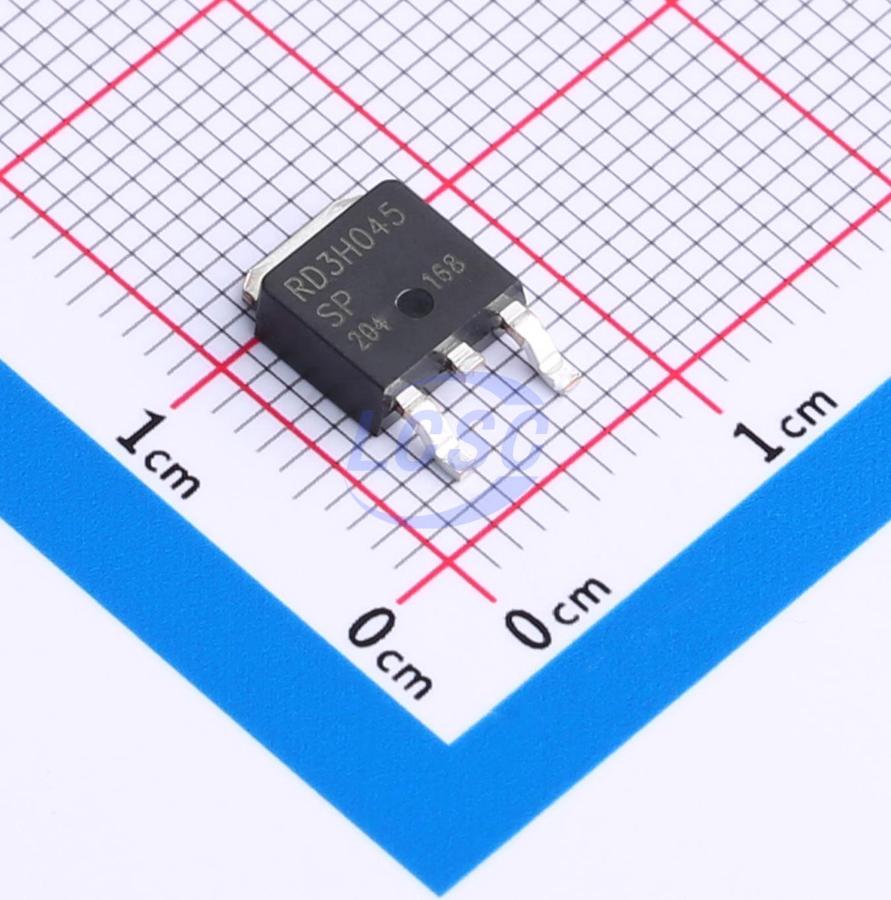

RD3H045SPTL1
P-Channel 45V 4.5A 15W Surface Mount TO-252
TO-252ROHS3 CompliantActive
MOSFET P-CH 45V 4.5A TO-252
- Manufacturer
- ROHM
- Manufacturer part #
- RD3H045SPTL1
- Store part #
- C3290839
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
37 in stock
#C3290839
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹271.37 | ₹271.37 |
| 10+ | ₹232.01 | ₹2,320.10 |
| 30+ | ₹207.23 | ₹6,216.90 |
| 100+ | ₹182.01 | ₹18,201.00 |
| 500+ | ₹170.48 | ₹85,240.00 |
| 1,000+ | ₹165.69 | ₹1,65,690.00 |
1 × ₹271.37
₹271.37
excl. GST
₹320.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
RD3H045SPTL1
₹271.37 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 45V
- Current - Continuous Drain(Id)
- 4.5A
- Ciss-Input Capacitance
- 550pF
- Pd - Power Dissipation
- 15W
- RDS(on)
- 155mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 12nC@5V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.41 g
Overview
This MOSFET is designed to minimize on-resistance (RDS(ON)) while maintaining excellent switching performance, making it ideal for high-efficiency power management applications.
Applications
- Switching
Key features
- Low on - resistance
- Fast switching speed
- Drive circuits can be simple
- Parallel use is easy
- Pb-free lead plating ; RoHS compliant
- AEC-Q101 Qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RD3H045SPFRATL#C6936495ROHM · TO-252 | ROHM | TO-252 | 117 | ₹149.50 · 117 in stock | View |
 | RD3H080SPTL1#C5846725ROHM · TO-252 | ROHM | TO-252 | 8 | ₹312.96 · 8 in stock | View |
 | UTT25P10L-TN3-R#C84899UTC · TO-252 | UTC | TO-252 | 275 | ₹49.63 · 275 in stock | View |
 | STP607D#C2682831STANSON Tech. · TO-252 | STANSON Tech. | TO-252 | 100 | ₹27.60 · 100 in stock | View |
 | DMPH6050SK3Q-13#C461102DIODES · TO-252(DPAK) | DIODES | TO-252(DPAK) | 3,081 | ₹91.91 · 3,081 in stock | View |
