HXY MOSFETDatasheet (PDF)

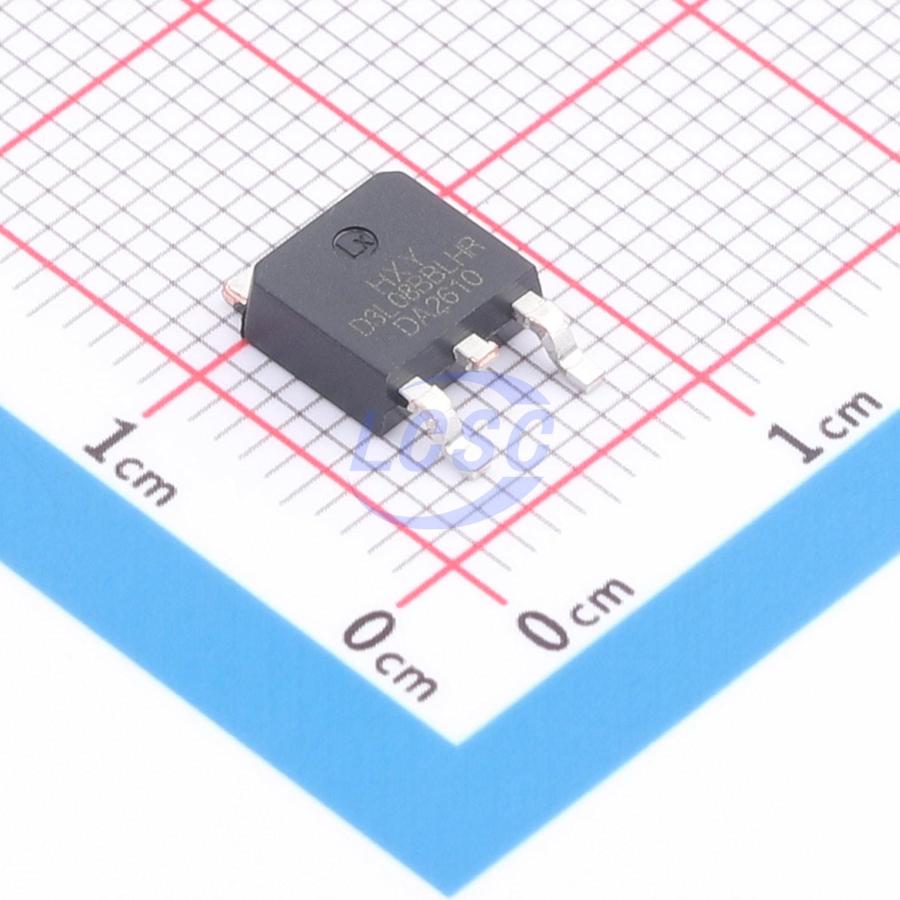

RD3L08BBLHRBTL-HXY
60V 130A 140W 3mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- RD3L08BBLHRBTL-HXY
- Store part #
- C54582502
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
44 in stock
#C54582502
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹261.07 | ₹261.07 |
| 10+ | ₹222.28 | ₹2,222.80 |
| 30+ | ₹198.05 | ₹5,941.50 |
| 100+ | ₹173.19 | ₹17,319.00 |
| 500+ | ₹162.04 | ₹81,020.00 |
| 1,000+ | ₹157.12 | ₹1,57,120.00 |
1 × ₹261.07
₹261.07
excl. GST
₹308.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
RD3L08BBLHRBTL-HXY
₹261.07 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 1.666nF
- Current - Continuous Drain(Id)
- 130A
- Ciss-Input Capacitance
- 5.377nF
- Pd - Power Dissipation
- 140W
- Reverse Transfer Capacitance (Crss)
- 77.7pF
- RDS(on)
- 3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 66.1nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.6V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.402 g
Overview
RD3L08BBLHRBTL utilizes advanced SGT MOSFET technology, delivering low on-resistance (RDS(ON)), low gate charge, fast switching, and excellent avalanche characteristics. The device is specifically designed for enhanced durability.
Applications
- Consumer electronics power supplies, motor control, synchronous rectification, isolated DC synchronous rectification applications
Key features
- Drain-source voltage (VDS) = 60V, drain current (ID) = 130A
- On-resistance (RDS(ON)) < 3.5mΩ at gate-source voltage (VGS) = 10V
