ROHMDatasheet (PDF)

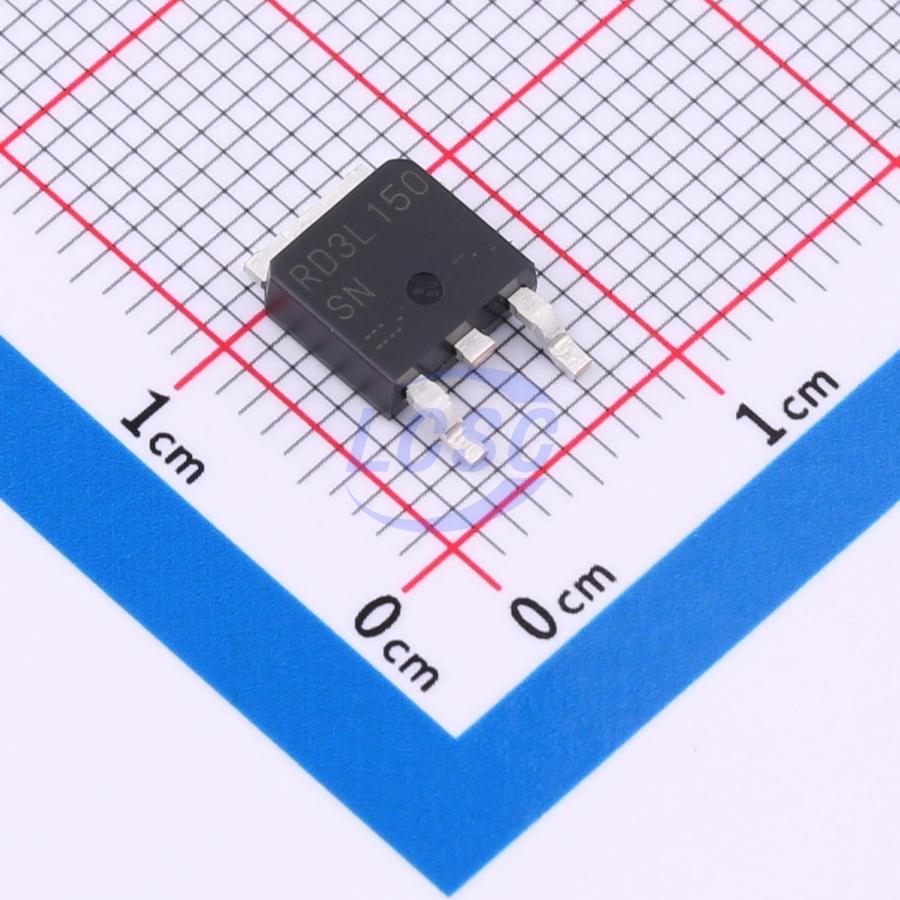

RD3L150SNFRATL
60V 15A 20W 40mΩ@10V 1 N-channel TO-252 Single FETs, MOSFETs RoHS
TO-252ROHS3 CompliantActive
MOSFET N-CH 60V 15A TO-252
- Manufacturer
- ROHM
- Manufacturer part #
- RD3L150SNFRATL
- Store part #
- C3281238
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C3281238
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹188.62 | ₹188.62 |
| 10+ | ₹156.68 | ₹1,566.80 |
| 30+ | ₹139.07 | ₹4,172.10 |
| 100+ | ₹119.31 | ₹11,931.00 |
| 500+ | ₹110.62 | ₹55,310.00 |
| 1,000+ | ₹106.49 | ₹1,06,490.00 |
1 × ₹188.62
₹188.62
excl. GST
₹222.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
RD3L150SNFRATL
₹188.62 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 200pF
- Current - Continuous Drain(Id)
- 15A
- Ciss-Input Capacitance
- 930pF
- Pd - Power Dissipation
- 20W
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 40mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 18nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.433 g
Overview
Applications
- Switching applications
Key features
- Low on-resistance
- Fast switching speed
- Simple drive circuit
- Easy parallel operation
- Lead-free pin finish; RoHS compliant
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RD3L150SNTL1#C6757881ROHM · TO-252 | ROHM | TO-252 | 12,382 | ₹73.77 · 12,382 in stock | View |
 | WSF60N06#C148432Winsok Semicon · TO-252 | Winsok Semicon | TO-252 | 1,227 | ₹59.31 · 1,227 in stock | View |
 | FR024N#C5203853Cmos · TO-252 | Cmos | TO-252 | 200 | ₹21.17 · 200 in stock | View |
 | RD3P200SNTL1#C3281242ROHM · TO-252 | ROHM | TO-252 | 1,923 | ₹109.32 · 1,923 in stock | View |
 | STD25NF10T4#C435948ST · DPAK | ST | DPAK | 2,660 | ₹158.42 · 2,660 in stock | View |
