HXY MOSFETDatasheet (PDF)

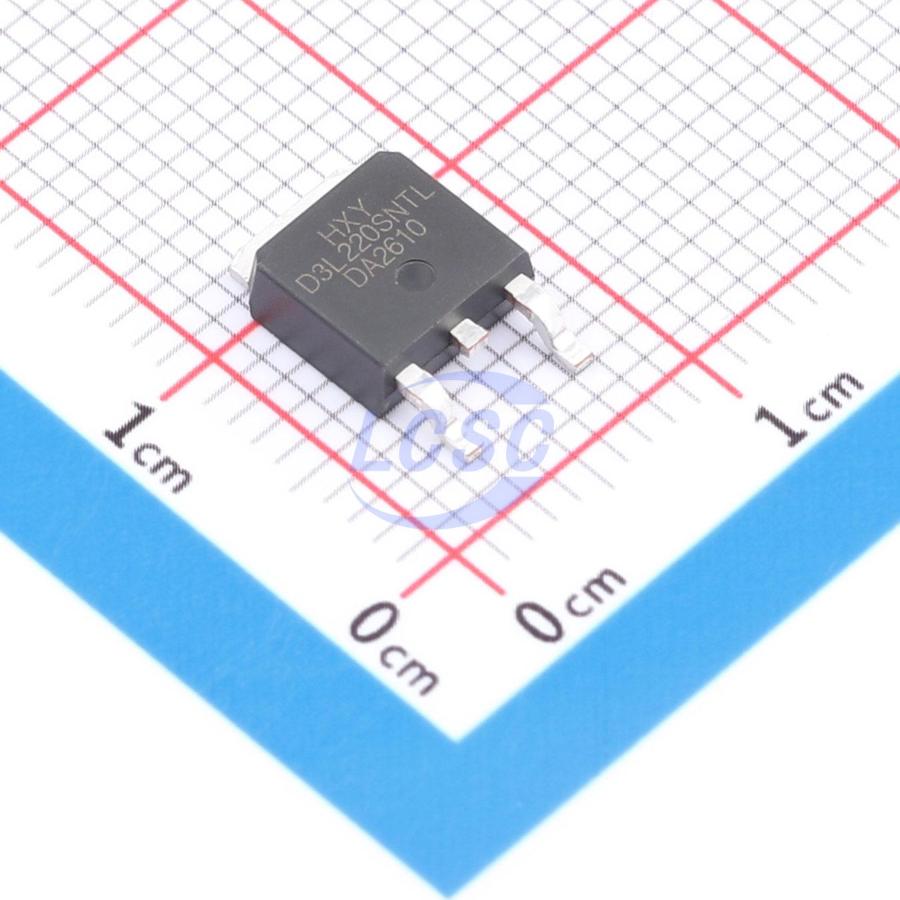

RD3L220SNTL1-HXY
60V 50A 87.7W 13mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- RD3L220SNTL1-HXY
- Store part #
- C54582485
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
47 in stock
#C54582485
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.88 | ₹76.88 |
| 10+ | ₹61.59 | ₹615.90 |
| 30+ | ₹55.13 | ₹1,653.90 |
| 100+ | ₹46.95 | ₹4,695.00 |
| 500+ | ₹38.76 | ₹19,380.00 |
| 1,000+ | ₹36.61 | ₹36,610.00 |
1 × ₹76.88
₹76.88
excl. GST
₹90.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
RD3L220SNTL1-HXY
₹76.88 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 50A
- Output Capacitance(Coss)
- 185pF
- Ciss-Input Capacitance
- 2.498nF
- Pd - Power Dissipation
- 87.7W
- Reverse Transfer Capacitance (Crss)
- 80pF
- RDS(on)
- 13mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 36nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.396 g
Overview
The RD3L220SNTL1 utilizes advanced trench technology to deliver excellent on-resistance (RDS(ON)), low gate charge, and operation at gate voltages as low as 4.5V. The device is suitable for battery protection or other switching applications.
Applications
- Battery protection
- Load switch
- Uninterruptible power supply
Key features
- Drain-Source Voltage (VDS) = 60V, Drain Current (ID) = 50A
- RDS(ON) < 17mΩ at VGS = 10V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMNH6021SK3Q-HXY#C22366964HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 11 | ₹54.89 · 11 in stock | View |
 | IRFU4105ZPBF-HXY#C22366968HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 50 | ₹36.95 · 50 in stock | View |
 | AOD442G-HXY#C22366969HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 60 | ₹31.73 · 60 in stock | View |
 | IPD30N06S2L-23-HXY#C22366971HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 225 | ₹45.93 · 225 in stock | View |
 | HIPD220N06L3GBTMA1#C42401336HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 10 | ₹57.22 · 10 in stock | View |
